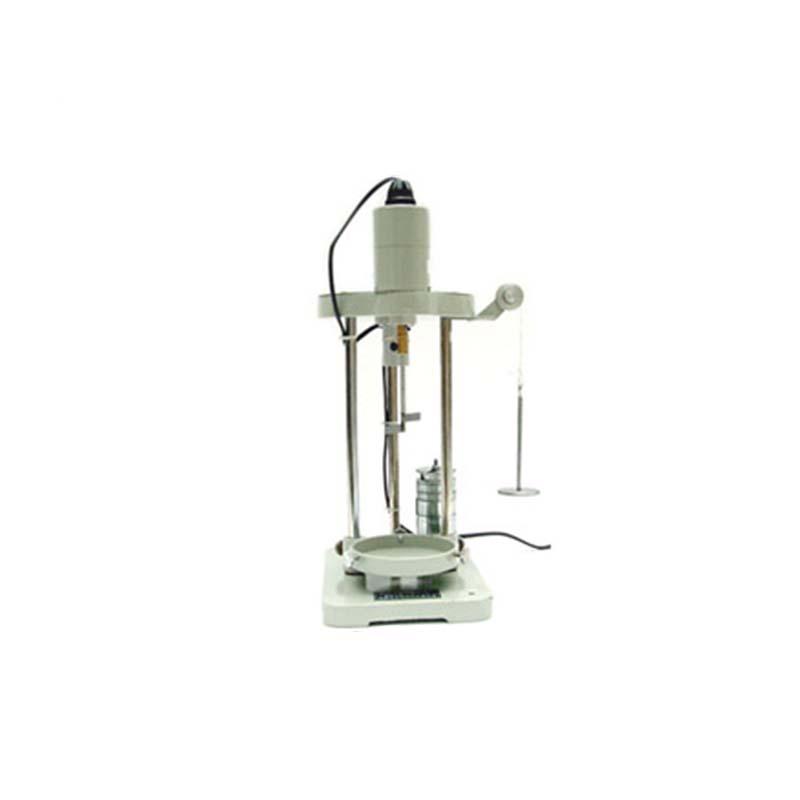

SRD QNZ Stormer Viscometer Measurement range 53~ 141KU

QNZ

Stormer Viscometer

Introduction

The instrument drives the slurry rotor by changing the weight weight through the torque generated by mechanical transmission, and overcomes the resistance of the paint to rotate in the measured paint, and when the rotor speed reaches 200r/min, a basically stable bar pattern can be seen in the strobe of the instrument. In this case, the weight of the weight can be corresponded to the Krebs viscosity method - KU value of the paint to be measured.

Parameters

1. Weights: 10 in total, including 5g, 50g, 100g

2 each, 10g, 25g, 200g, 500g each,

1 weight tray weighs 45g, and the total weight is 1090g.

2. Measuring range: 53~141KU value.

3. Power supply: 220V, 50HZ.

4. Dimensions: 300*240*460mm

Weight: 8kg.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
