LEICI PHS-25 (pointer) pH meter 0.1pH measurement resolution Dial-Type

LEICI PHS-25 (pointer) pH meter is a pointer display measurement PH value of acidity Detector, measurement resolution of 0.1pH, Calibration method.
Contact
Details SPEC CAT
Similar products

LeiCi PHS-25 (pointer) pH meter (basic type)SPEC

LeiCi PHS-25 (pointer) pH meter (basic type)Details

LeiCi PHS-25 (pointer) pH meter (basic type)Packing list

SKU
NB001121
Measurement parameters
pH、mV
PH range
0.00~14.00pH
PH Measurement Accuracy
+/- 0.05pH +/- 1 word
Resolution
0.01pH/1mV
Temperature compensation method
manual
Stability (zero drift)
(+/- 0.05pH +/- 1 word)/3h
Power Supply
AC(220±22)V，(50±1)Hz
Dimensions
250*160*85mm
Weight
1Kg
Standard electrode reagent
E-201-C composite PH electrode, PH standard powder
Instrument level
Level 0.1
calibration
one point calibration
Measurement Accuracy of mV
±1%F.S
Measurement range mV
-1400~1400mV
Measurement range
0.0~60.0℃
PHS-25 (pointer)
pH meter (basic type)
LEICI PHS-25 (pointer) pH meter 0.1pH measurement resolution Dial-Type Picture

Introduction

Thunder Magnetic PHS-25 (Pointer) PH meter is a laboratory pH value Measurement Instrument, which can measure pH value and mV value at the same time by displaying pH value through Dial-Type.PHS-25 (pointer) The pH meter measures with a resolution of 0.1 pH and 1 mV, and has two interfaces on the back of the PH meter, a measuring electrode and a reference electrode, which can be connected to the electrode. Thunder MagneticPHS-25 (pointer) The package of the PH meter has a thickened pearl cotton package to ensure that the PH meter is subject to impact and vibration during transportation, and the PH meter is damaged. PH meter can be used in industry, agriculture, scientific research, universities, quality inspection and other fields.

Features

1、Thunder Magnet PHS-25 (Pointer) The pH meter displays the measured pH value in a Dial-Type.

2. There are temperature, positioning knobs and two other knobs on the PH meter panel.

3. One-point calibration method.

4、PHS-25 (pointer) PH meter isManual temperature compensation.

Applications

Thunder MagneticPHS-25 (pointer)PH meter can be widely used in industry, agriculture, drinking water, food, daily chemical and other industries.

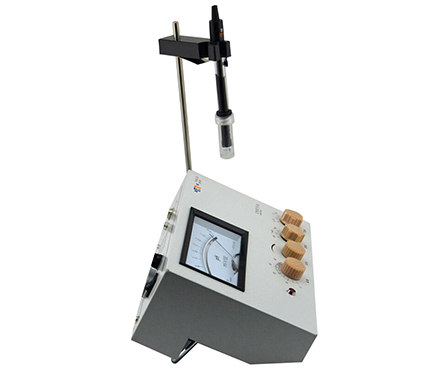

Actual picture of the product

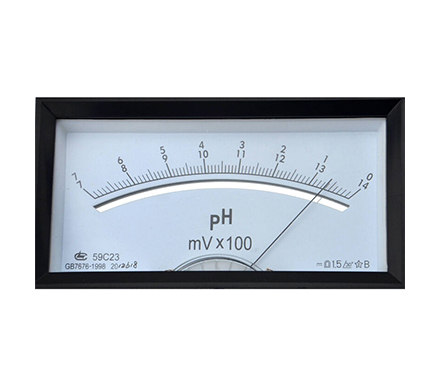

Ray Magnet PHS-25 (pointer) PH meter display diagram

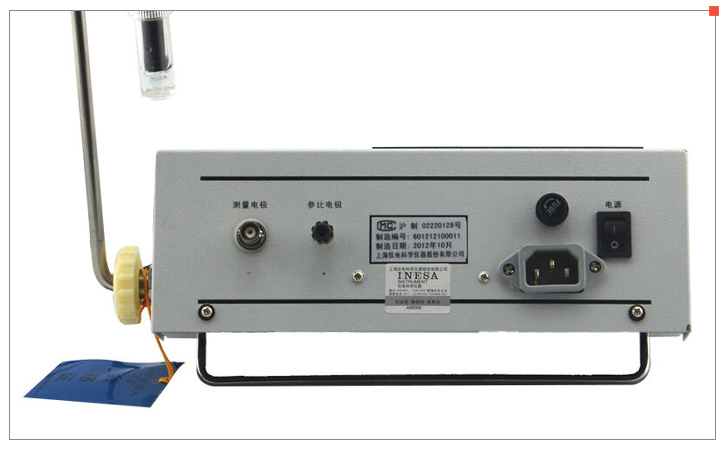

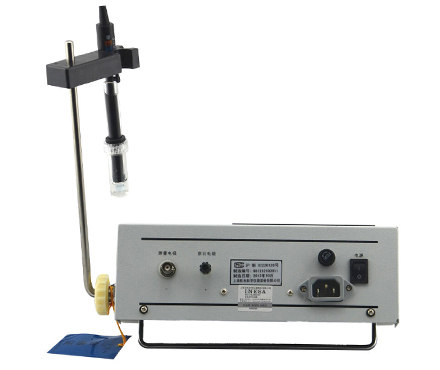

Ray Magnet PHS-25 (pointer) Jack diagram on the back of the PH meter

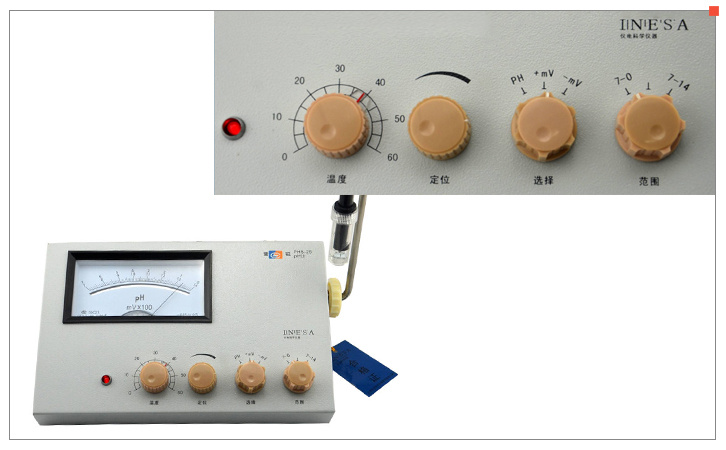

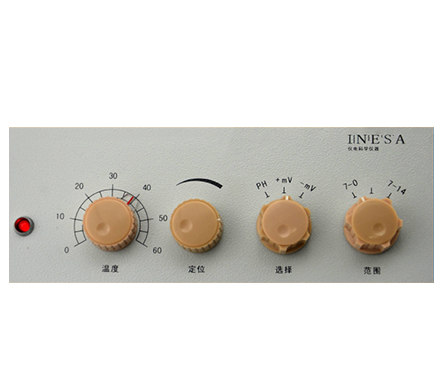

Thunder Magnet PHS-25 (pointer) PH meter main unit button diagram

FAQ
QHow to calibrate the pH meter?
A The pH meter has many types due to different electrode designs, and its operation steps are different. Therefore, the operation of the pH meter should be carried out in strict accordance with the instruction manual. In specific operations, calibrating is an important step in the operation of the pH meter.
