MODERNER XD-20-65 Three-roll Grinder

MODERNER XD-20-65 Three-roll Grinder paints, coatings, dyestuffs, rubber experimental research. Small and effective, smooth operation, no noise.
Model：
Certificate
Contact
Details SPEC

Moderner XD-20-65 Three-roll GrinderSPEC

Moderner XD-20-65 Three-roll GrinderDetails

Moderner XD-20-65 Three-roll GrinderPacking list

SKU
NB011223
material
ferroalloy
Roller diameter
65mm
Roller working length
130mm
Discharge port height from ground
220mm
Rotation speed
26rpm
Rotation speed of middle roller
70rpm
Rotation speed
145rpm
Motor Power
0.75kw
Dimensions
410*400*450mm
Weight
60kg
XD-20-65
Three-roll Grinder

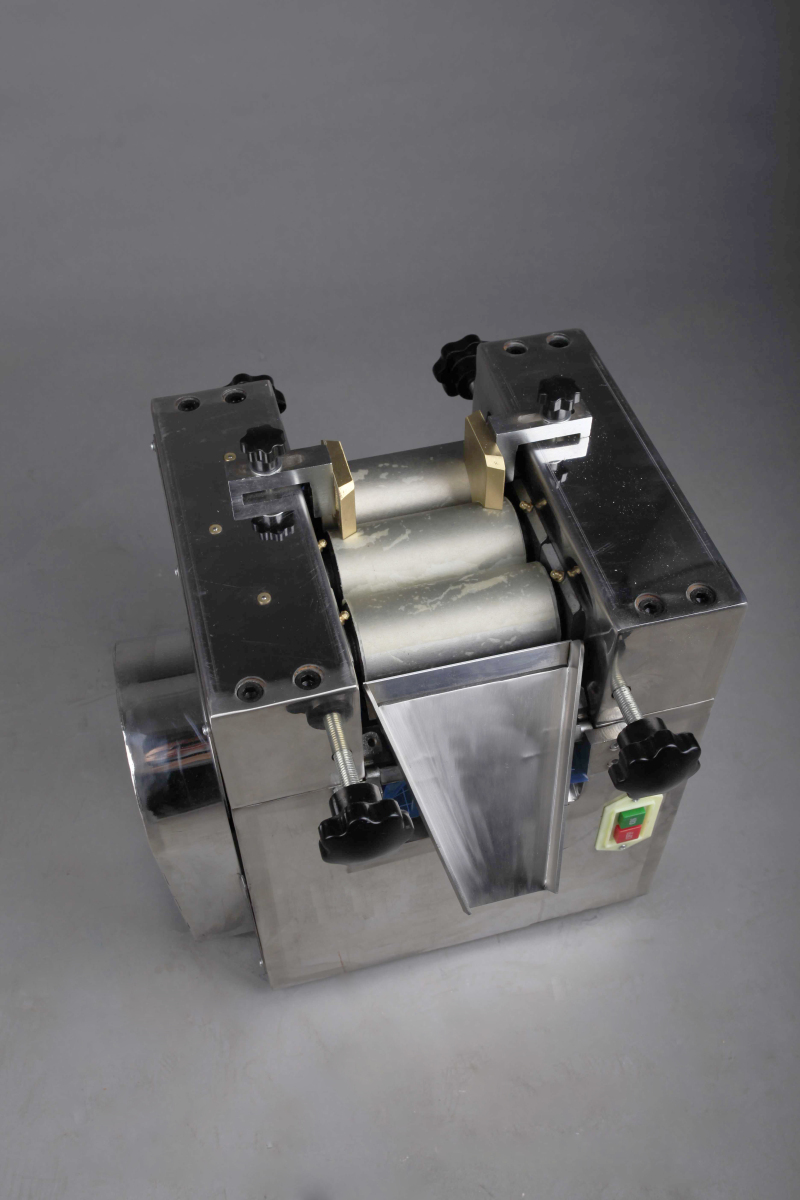

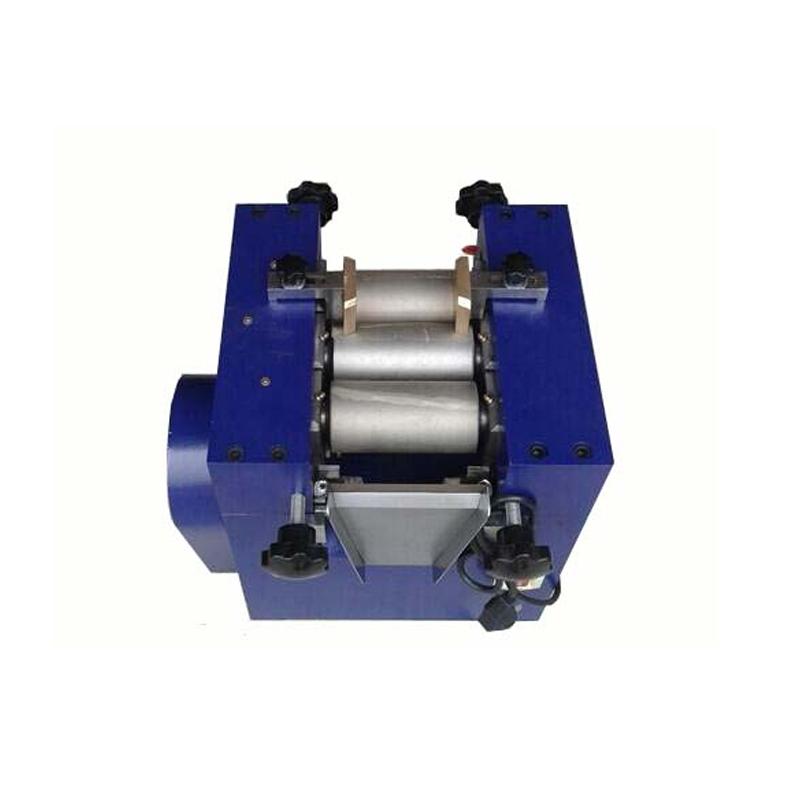

MODERNER XD-20-65 Three-roll Grinder Picture

I. Overview:

Small three-roller Grinders are widely used in scientific research, testing, formulation and micro-scale debugging and production in chemical industries such as paints, coatings, dyes, rubber, lead, leather, food, cosmetics and insulation materials. It has the functions of crushing, dispersing, emulsifying, homogenizing, etc. Quality, color and other functions. It can mix raw materials highly evenly and recycle waste materials. The surface of the steel roller is thermally sprayed with nickel alloy powder to form a bimetallic chilled alloy, which has high hardness, impact resistance and wear resistance. The transmission system adopts multi-row chain soft start, which has high transmission efficiency, smooth operation and no noise.


XD-20-65

XD-20-65T

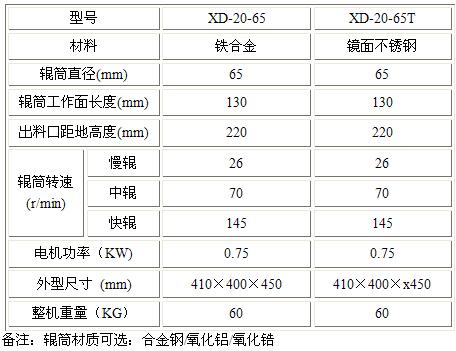

2. Main technical parameters:


FAQ
QCan the MODERNER XD-20-65 Three-roll grinder meet the GB/T21868.6 standard?
A Applicable, you can consult the customer service of the mall for details about the GB/T21868.6 standard.
