MODERNER XD-20-65T Three-roll Grinder

MODERNER XD-20-65T Three-roll Grinder is widely used in scientific research, testing, formulation and micro-commissioning production in the chemical industry such as paints, Coatings, dyestuffs, rubber, lead cores, leather, food, cosmetics and insulation materials.
Model：
Certificate
Contact
Details SPEC

Moderner XD-20-65T Three-roll GrinderSPEC

Moderner XD-20-65T Three-roll GrinderDetails

Moderner XD-20-65T Three-roll GrinderPacking list

SKU
NB011224
material
Mirror stainless steel
Roller diameter
65mm
Roller working length
130mm
Discharge port height from ground
220mm
Rotation speed
26rpm
Rotation speed of middle roller
70rpm
Rotation speed
145rpm
Motor Power
0.75kw
Dimensions
410*400*450mm
Weight
60kg
XD-20-65T
Three-roll Grinder

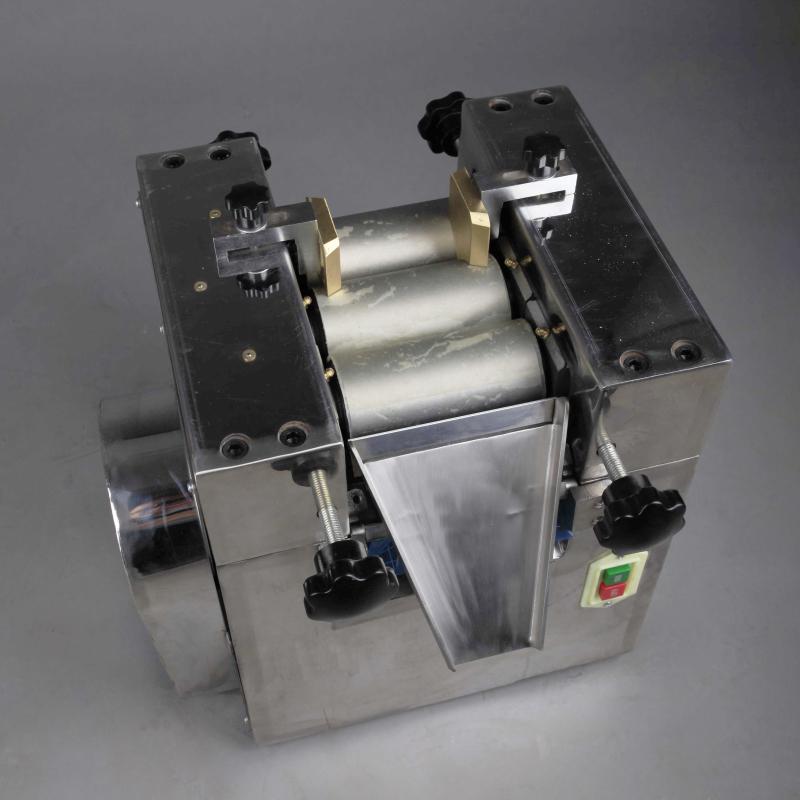

MODERNER XD-20-65T Three-roll Grinder Picture

I. Overview:

Small three-roller Grinders are widely used in scientific research, testing, formulation and micro-scale debugging and production in chemical industries such as paints, coatings, dyes, rubber, lead, leather, food, cosmetics and insulation materials. It has the functions of crushing, dispersing, emulsifying, homogenizing, etc. Quality, color and other functions. It can mix raw materials highly evenly and recycle waste materials. The surface of the steel roller is thermally sprayed with nickel alloy powder to form a bimetallic chilled alloy, which has high hardness, impact resistance and wear resistance. The transmission system adopts multi-row chain soft start, which has high transmission efficiency, smooth operation and no noise.


XD-20-65

XD-20-65T

2. Main technical parameters:



FAQ
QDoes the Three-roll grinder meet the specifications of GB/T21868.6?
A Model XD-20-65T Three-roll grinder Compliant
Standard
