Specifications
| Instrument level | Level 0.5 |
| Conductivity range | 0.000 μS/cm~ 1000mS/cm |
| Resolution | 0.001 μS/cm, automatically switched according to the range |
| Electronic unit reference error | ±0.5% (FS) |
| Electrical resistivity range | 5.00Ω.cm~100.0MΩ.cm |
| Resolution | 0.01Ω · cm, automatically switch according to the range |
| Electronic unit reference error | ±0.5% (FS) |
| TDS range | 0.000mg/L~1000g/L |
| Resolution | 0.001Mg/L, automatically switched according to the range |
| Electronic unit reference error | ±0.5% (FS) |
| Salinity range | (0.00~8.00)% |
| Resolution | 0.01% |
| Instrument reference error | ±0.2% |
| Temperature Measurement Range | -10.0~135.0℃ |
| Resolution | 0.1 ℃ |
| Electronic unit error of indication | ±0.1 ℃ |
| An indication of instrument error | +/- 0.3 ℃ (0 ℃ - 6 0 ℃）； +/- 1.0 ℃ (Miscellaneous range) |
| Ambient Temperature | (0~40)℃ |
| Relative Humidity | Not more than 85% |
| size | 242*195*68mm |
| Weight | 0.9kg |
| Power | Power adapter (input: AC100~240V output: DC9V) |
Packing list

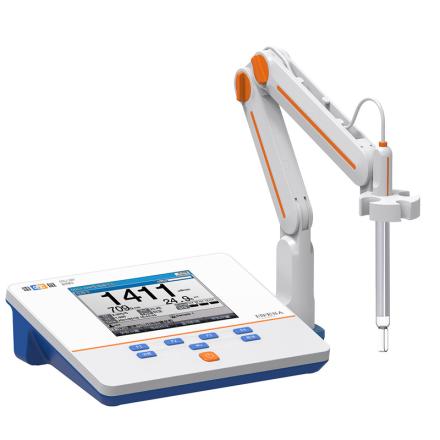

Host x1, DJS-1D platinum black electrode x1, T-818-B-6 type temperature transducer x1, REX-3 type multifunctional electrode holder x1, general power supply (9VDC, 800mA, inner positive and outer negative) x1, USB interface cable x1, REXDC2.0 LEICI data collection software x1, dust cover x1, manual x1, certificate x1
After-sales instructions
Warranty days: 365 days
1. The warranty period is 1 year (the electrode is a consumable and is not covered by the warranty);
2. After-sales service is provided by the original factory;
3. Free maintenance during the warranty period (except for improper use), and long-term technical support outside the warranty period.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/1124/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
