LEICI DDSJ-308A Conductivity Meter 1.0 Class conductivity /TDS/salinity/temperature

DDSJ-308A

Conductivity Meter

Introduction

Thunder Magnetic DDSJ-308A conductivity meter is a button type digital display conductivity Detector, the measured conductivity is 1.0 grade, which can accurately detect the conductivity of the aqueous solution and judge the quality of the aqueous solution.DDJ-308A conductivity meter is a multi-functional type, which can measure conductivity, TDS, salinity and temperature values at the same time, and can automatically compensate, calibrate and switch ranges, and can intelligently adjust according to the measurement situation with good accuracy.The DDSJ-308A conductivity meter is equipped with an RS-232 interface, which can be connected to a printer and print the stored measurement data.

Features

1. Chinese language operation interface, backlit LCD display function.

2. Powerful data management. Test data can be queried, stored (up to 200 sets), printed, and deleted, and there are two printing modes, including instant printing and storage printing.

3、DDSJ-308A conductivity meter has RS-232 interface, which can be connected to TP-16 printers, and can also be connected to the computer with data acquisition software to operate and manage data.

4. MeasurableConductivity, TDS, salinity, and temperature values.

5. It has the calibration function of setting TDS conversion coefficient and electrode constant, which is simple and convenient.

6. Automatic function, automatic calibration, range switching, power-off protection, temperature compensation and other functions.

7. The supporting electrode is DJS-1D platinum black conductivity electrode, and is equipped with T-818-B-6 temperature sensor.

Product Structure

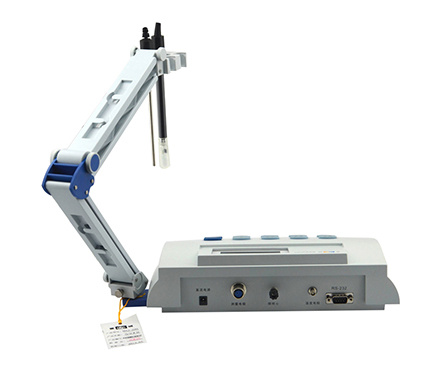

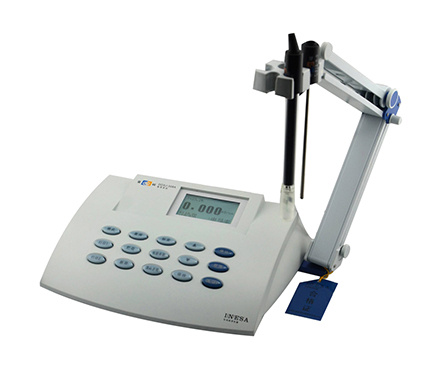

The composition structure of the DDSJ-308A conductivity meter of Leici: display screen, multi-function electrode holder, button, electrode, RS-232 interface, grounding, measuring electrode interface, DC power switch, temperature electrode interface.

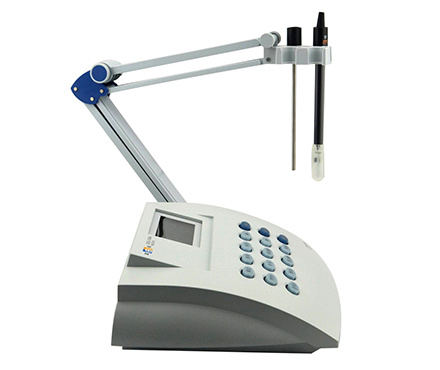

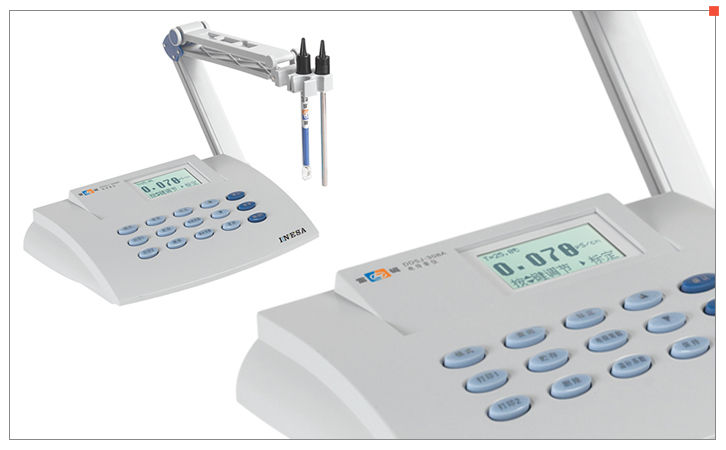

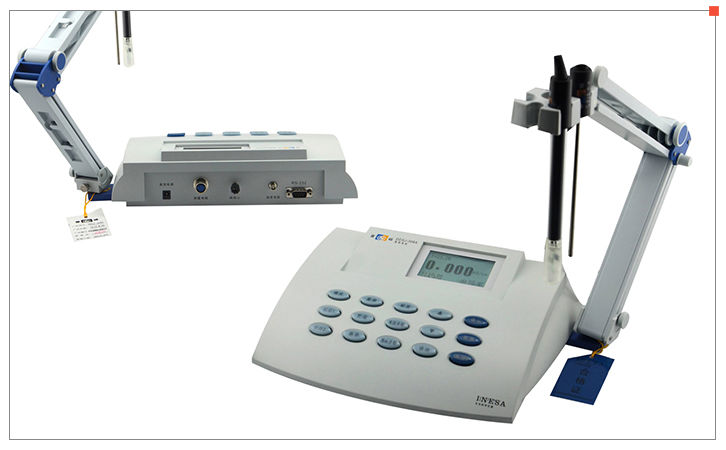

Actual picture of the product

Packing list：Host x1, DJS-1D type Conductivity detector electrode (platinum black) x1, T-818-B-6 type temperature electrode x1, general power supply (9VDC, 500mA, internal positive and external negative) x1, REX-3 multifunctional electrode holder x1, RS232 communication connection x1, TP-16 serial printer connection x1, REX data collection software x1, dust cover (middle) x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
