TQC CX2055 Temperature range 0~480 ℃
SETQC furnace temperature probe CX2055 is a magnetic surface furnace temperature probe, cable length 1500mm, CX2055 furnace temperature probe Temperature range is 0~480 ℃.
$604.00/piece
PromotionLoading...
Coupon
Model：
CX2055
TQC sheen CX2055 probeSPEC
TQC sheen CX2055 probeDetails
TQC sheen CX2055 probePacking list
- SKU
- NB011392
- Model:
- CX2055
- Probe line length:
- 1500mm
- Probe wire type:
- SS braided thread
- Use of measurement:
- workpiece surface
- Probe type:
- magnetic
- Maximum temperature:
- 480℃/896℉
CX2055
probe
Introduction

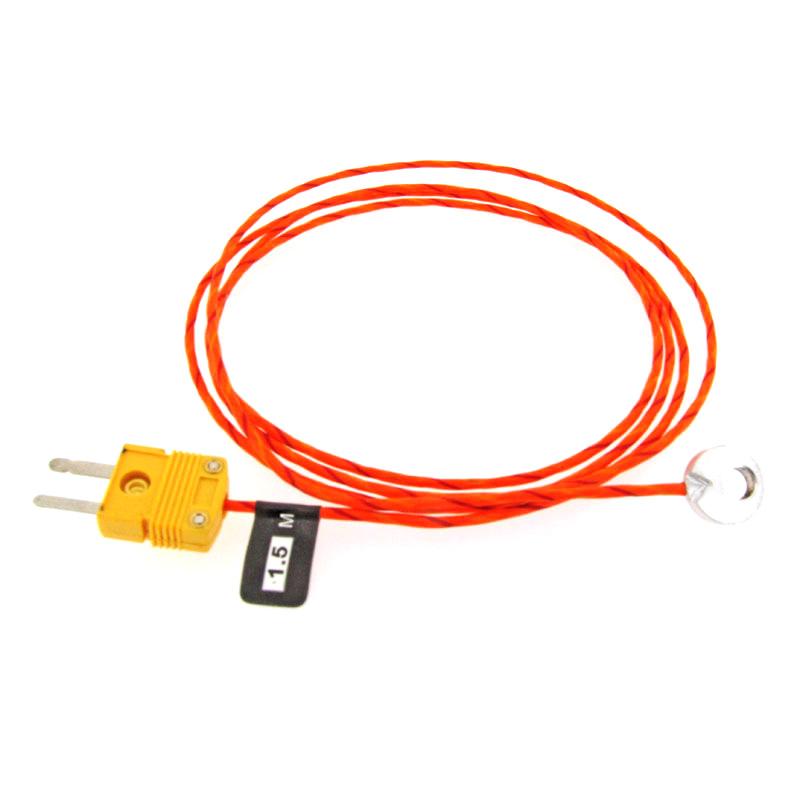

TQC furnace temperature probe CX2055 is a magnetic surface furnace temperature probe, the cable length is 1500mm, and the temperature range of CX2055 furnace temperature probe is 0~480°C.
Temperature probe features:
Magnetic surface temperature probeIt is adsorbed on the workpiece by strong magnetism, which is small in size and light in weight, and the sensor is thermally insulated with a magnet to ensure that the measured temperature is not affected. This probe is particularly suitable for round workpiece surfaces, such as metal tubes and car bodies.

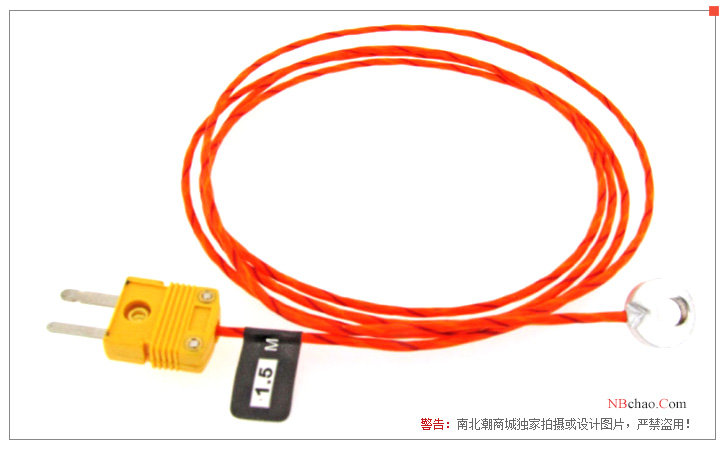

Product display diagram
A list of temperature probe types
| Ordering number | Probe line length cm | Probe line type | Measurement use | Probe type | Maximum temperature |
| CX2020/21/22 | 150/300/500 | Teflon | air | Clip-on | 300℃/570℉ |
| CX2069/68 | 150/300 | Teflon | air | magnetism | 300℃/570℉ |
| CX2030/40/41 | 150/300/500 | Teflon | The surface of the workpiece | Clip-on | 300℃/570℉ |
| CX2050/60/62 | 150/300/500 | Teflon | The surface of the workpiece | magnetism | 300℃/570℉ |
| CX2065/66/72 | 150/300/500 | Teflon | general | Ring 6mm | 300℃/570℉ |
| CX2063/64/67 | 150/300/500 | Teflon | general | Open contacts | 300℃/570℉ |
| CX2055/56 | 150/300 | SS braided wire | The surface of the workpiece | magnetism | 480℃/900℉ |
| CX2048/49 | 150/300 | SS braided wire | The surface of the workpiece | Clip-on | 480℃/900℉ |
| CX2085/86 | 150/300 | SS braided wire | general | Ring 6mm | 480℃/900℉ |
| CX2023/24 | 150/300 | SS braided wire | air | Clip-on | 480℃/900℉ |
| CX2090/91/92 | 150/300/500 | Inconel | general | Ring 6mm | 1000℃/1830℉ |
Choose the right length probe for your needs
