LANDTEK SRT-6200 Roughness Gauge 10μm stylus with built-in high-precision Sensors

SRT-6200

Roughness Gauge

Inductance; measurement of Ra and Rz values, built-in high-precision Sensors, accuracy ≤ +/- 10%; stylus 10 μm; with RS232 interface.

Introduction

LANDTEK SRT-6200 roughness meter is a built-in high-precision inductive sensor. The stylus measures the surface roughness of the measured object through inductance, and can measure two parameters of Ra and Rz at the same time. SRT-6200 roughness meter is controlled by high-capacity lithium-ion battery and charging method. It is designed with electromechanical integration, small size, light weight, very convenient to carry and use. The sensor of the roughness meter is made of diamond material, with a measuring radius of 10 microns and a direction of 90 degrees.

Features

1. LCD backlight display, 4-digit display, can measure Ra and Rz values at the same time.

2. The sensor of SRT-6200 roughness meter is inductive measurement principle.

3. With automatic shutdown function.

4. Metric and imperial conversion function, no manual conversion, easy to use.

5. The roughness meter is an integrated design with a built-in high-precision inductance sensor.

6. The way to connect PC to transmit data: USB data cable and RS-232 data cable.

7. Bluetooth output data.

Application

Mechanical processing manufacturing, non-metal processing manufacturing, electric power, electronics, and communication industries.

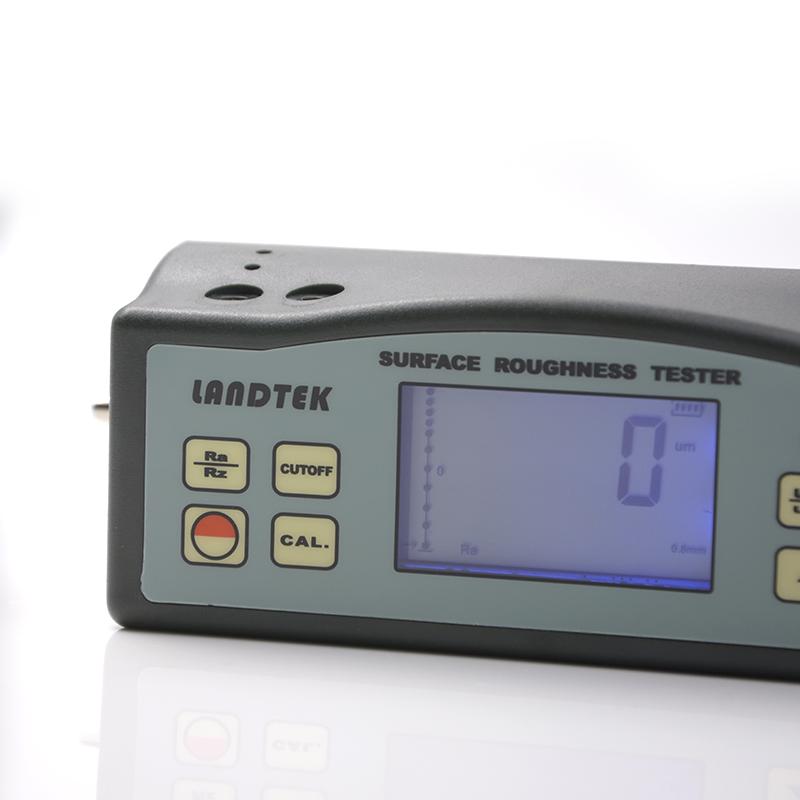

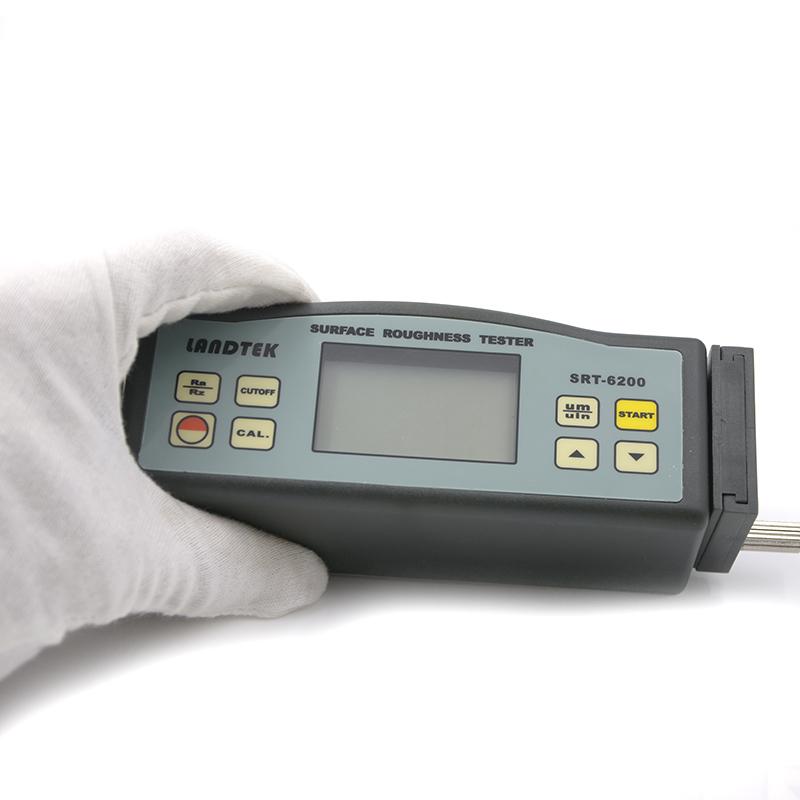

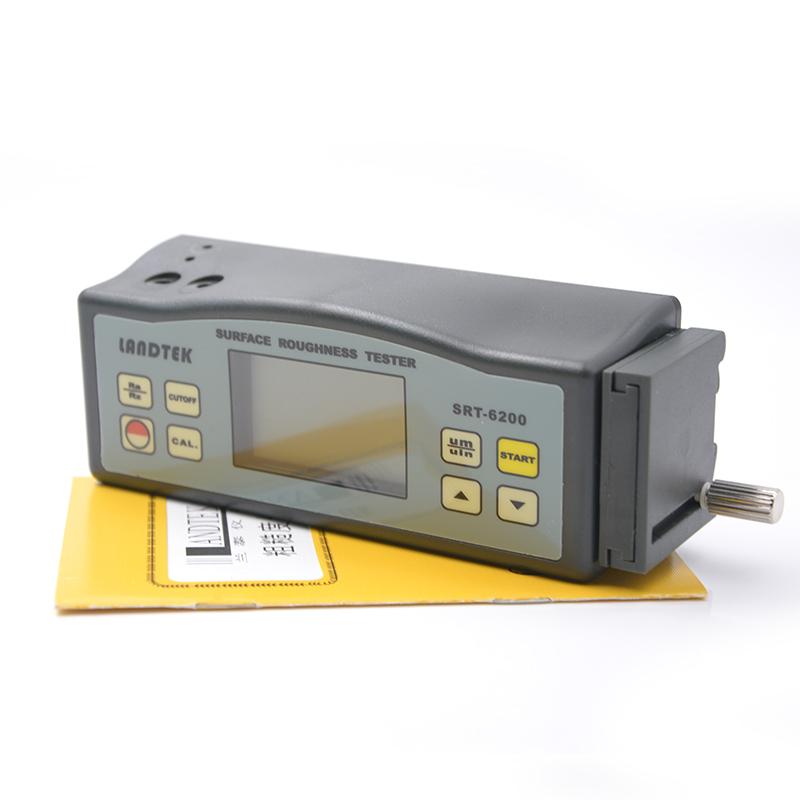

Pictures

Packing list：Host x1, small screw driver x1, adjustable bracket x1, standard sample SSP-180x1, standard Sensors SRP-100x1, Sensors protective cover x1, power adapter x1, portable case x1, manual x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
