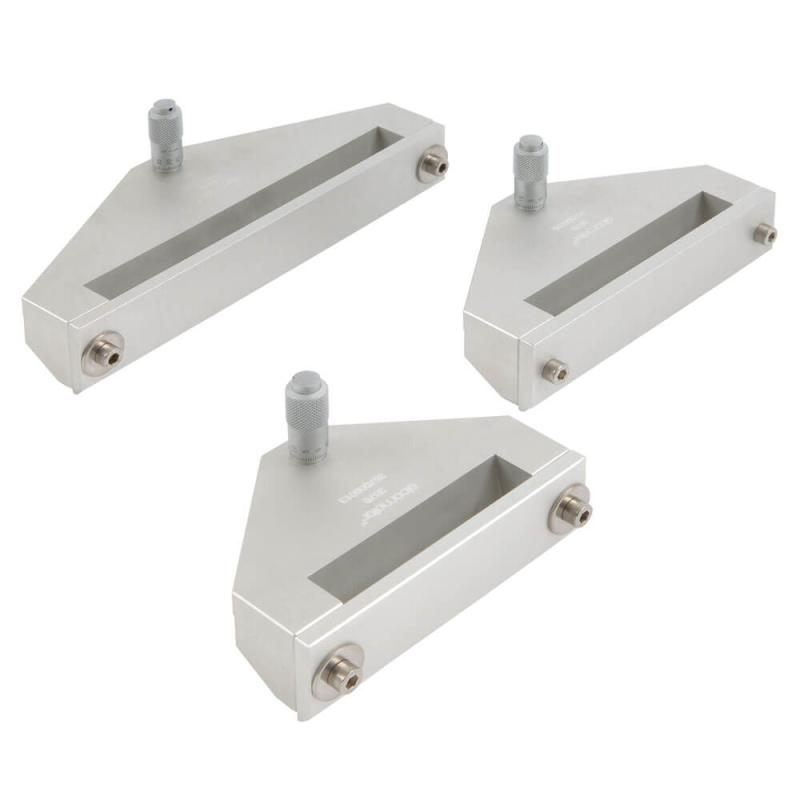

Elcometer 3570/2 trimming Film Applicator Adjustable Film Applicator
Elcometer 3570/2 fine-tuning Film Applicator type adjustable, wet film thickness 0~1000μm, application width 100mm, accuracy +/- 10μm, material anodic oxidation aluminum, standard ASTM D 823-E.
Model：
Elcometer 3570/2
Elcometer
Elcometer Elcometer 3570/2 Trimmer Film ApplicatorSPEC
Elcometer Elcometer 3570/2 Trimmer Film ApplicatorDetails
Elcometer Elcometer 3570/2 Trimmer Film ApplicatorPacking list
- SKU
- NB011416
- type
- Adjustable
- WFT
- 0~1000μm
- Application width
- 100mm
- Accuracy
- ±10μm
- material
- Aluminum anodic oxidation
- standard
- ASTM D 823-E

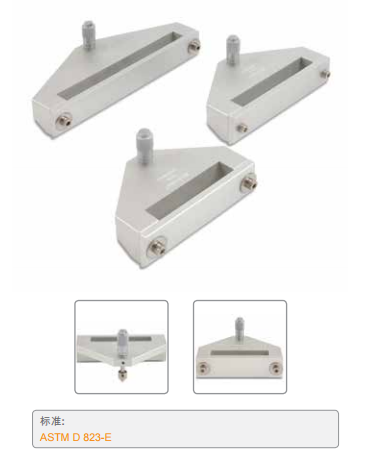

Elcometer 3570/2
Trimmer Film Applicator
Constructed from anodized aluminium with reservoirs and beveled blades, the Elcometer 3570 is suitable for high precision hand coating of high viscosity liquids on relatively solid substrates.

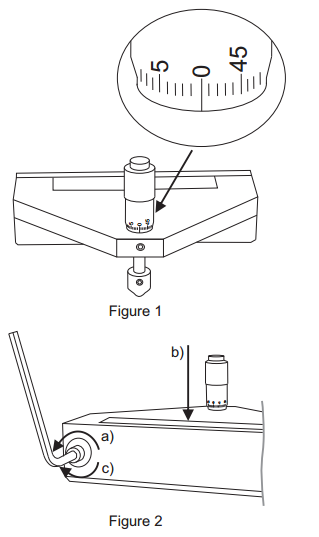

By adjusting the inclination of the device with a fine adjustment knob, the film thickness can be adjusted from 0 to 1 mm with a span of 1 micron.
| Part number | Description | Film thickness | Membrane width + | certificate | |
| µm | mm | inch | |||
| K0003570M201 | Elcometer 3570/1 Fine-tuning Applicator | 0-1000 | 75 | 3 | ο |
| K0003570M002 | Elcometer 3570/2 Fine-tuning Applicator | 0-1000 | 100 | 4 | ο |
| K0003570M003 | Elcometer 3570/3 Micro-Tuning Applicator | 0-1000 | 150 | 6 | ο |
| K0003570M004 | Elcometer 3570/4 Micro Adjustment Applicator | 0-1000 | 200 | 8 | ο |
FAQ
QI want to do a test on the JB/T7663.2 standard. Is this fine-tuning film applicator okay?
A
Sure
