Defelsko PosiTector 6000 FNRS3-E Cladding Thickness Gauge
SEThe Defelsko Defelsko Coating Thickness Gauge PosiTector 6000 FNRS3-E is an advanced coating Thickness Gauge with an external probe. The thickness measurement range is 0~1500μm. The PosiTector 6000 FNRS3 coating Thickness Gauge can automatically identify different substrates and is a dual-use Film Thickness Gauge.
$1941.00/set
PromotionLoading...
Coupon
Model：
PosiTector 6000 FNRS3-E
Similar products
-
PHYNIX Surfix SX-FN1.5 dual-use Coating Thickness Gauge 1500μm -
Defelsko PosiTector 6000 FRS3 Coating Thickness Gauge 90 ° probe$ 1513.00SE -
IPRE CT400 magnetic Induction eddy Current Coating Thickness Gauge Measurement range 0~1500μm$ 254.00SE -
Defelsko Positector 6000 NRS1 Coating Thickness Gauge for underwater measurement$ 1118.00SE -
Defelsko PosiTector 6000 FRS1 import Thickness Gauge paints/film/film thickness measurement$ 1024.00SE
Defelsko PosiTector 6000 FNRS3-E Coating Thickness GaugeSPEC
Defelsko PosiTector 6000 FNRS3-E Coating Thickness GaugeDetails

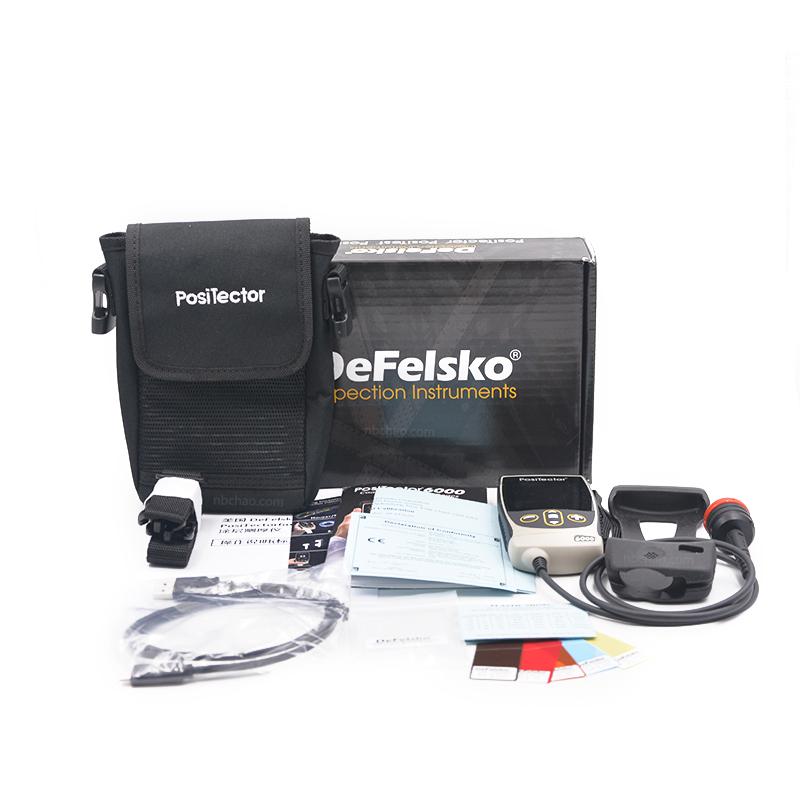

Defelsko PosiTector 6000 FNRS3-E Coating Thickness GaugePacking list
- SKU
- NB011430
- Measurement principle
- Magnetic Induction + eddy Current
- Measurement range
- 0~1500μm
- margin of error
- ±1%
- Resolution
- 0.1μm
- probe
- FNRS probe
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- Yes.
- Power Supply
- 3 * AAA alkaline battery
- Standards
- ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
- Calibrated Certificate
- Yes.
- Language
- Chinese, English
- Display screen
- 2.8-Inch color touchscreen
- Interface
- USB、Bluetooth
- supporting software
- PosiSoft Software Suite
- Machine Weight
- 137G (without battery)
- Machine size
- 127*66*25.4mm
- Data storage
- 250000 Measured values, 1000 groups
- screen image saving
- One hundred.
- Protection level
- IP65
- Measurement speed
- More than 180 readings per minute
PosiTector 6000 FNRS3-E
Coating Thickness Gauge
Introduction
The Defelsko PosiTector 6000 FNRS3-E Cladding Thickness Gauge is a PosiTector 6000 Advanced dual-purpose Thickness Gauge that automatically identifies different types of substrates, both on magnetic substrates and non-conductive coatings on non-magnetic substrates, with a measurement range of 0~1500 microns.PosiTector 6000 FNRS3-E覆The layer Thickness Gauge is connected to an external probe, supports Bluetooth data connection, and supports scanning measurement function.
Recommended reading
★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》
★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)
FAQ
QCan it be used to test the Coating thickness on an iron base?
A
Yes, this one has dual functions of magnetic Induction and eddy Current.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A
This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QDoes the FNRS3-E cladding thickness gauge come standard with one probe line or two?
A
Hello, a defelsko Coating thickness gauge dual-function probe can automatically identify the substrate material.
QDoes the Defelsko cladding thickness gauge come with software?
A
Hello, yes.
QWhy can't the Defelsko Coating thickness gauge be charged?
A
Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QIs the Defelsko PosiTector 6000 FNRS3-E Coating thickness gauge rechargeable or battery mounted?
A

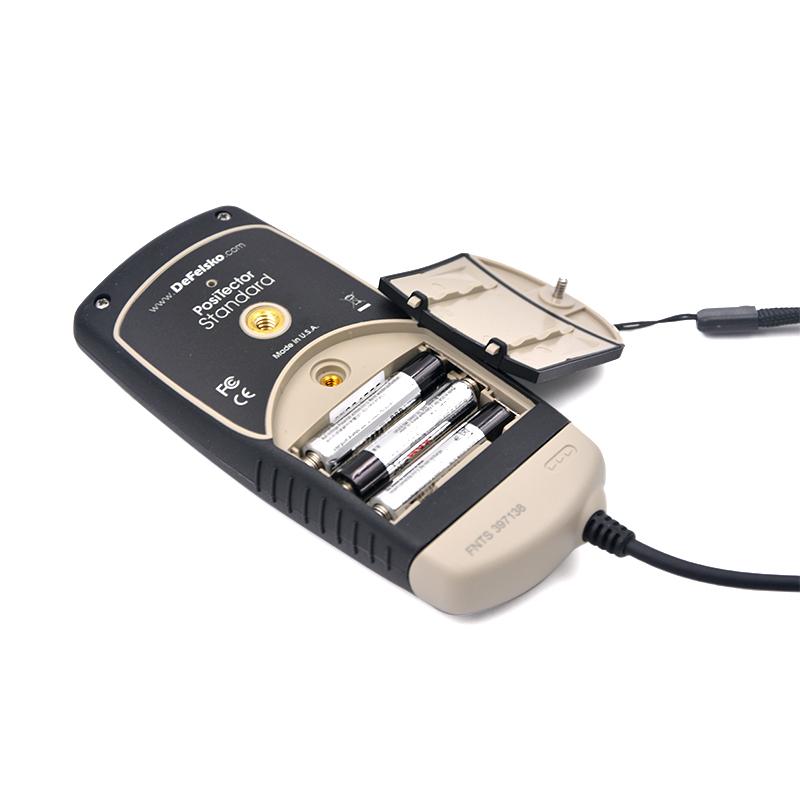

Hello, it uses three AA batteries.
QIs this the thickness gauge mentioned in ASTMB499?
A
OK
