LANDTEK SRT-6210 Surface Roughometer Needle Radius 5μm measurement Ra/Rz/Rq/Rt value

SRT-6210

Roughness Gauge

Needle tracing method; measurement Ra, Rz, Rq, Rt values, built-in Sensors, accuracy ≤ +/- 10%; large-capacity lithium-ion rechargeable battery; stylus 5μm; with RS232 interface, can store 7 sets of data.

Introduction

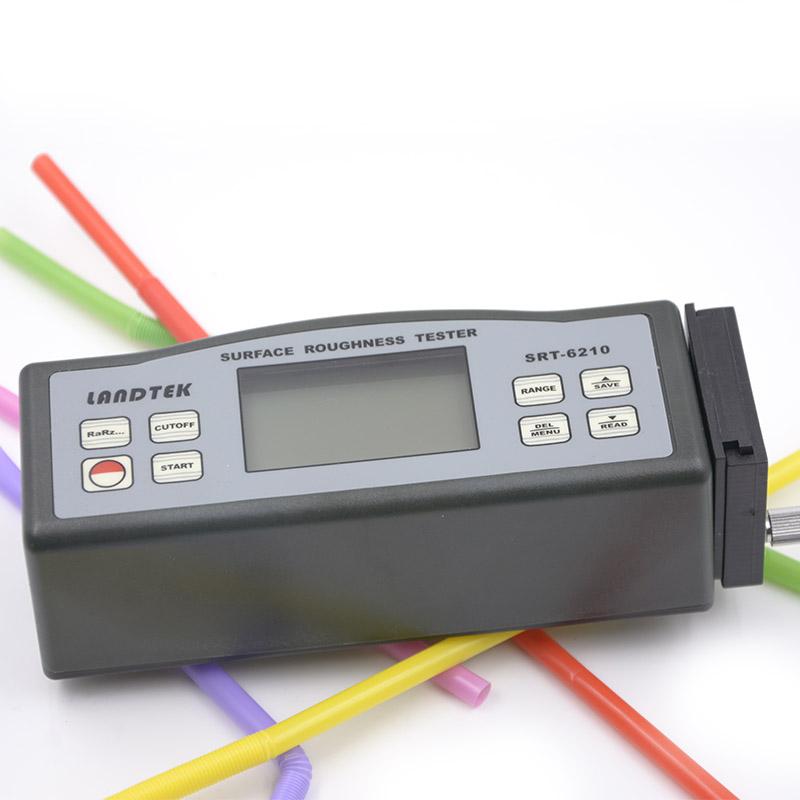

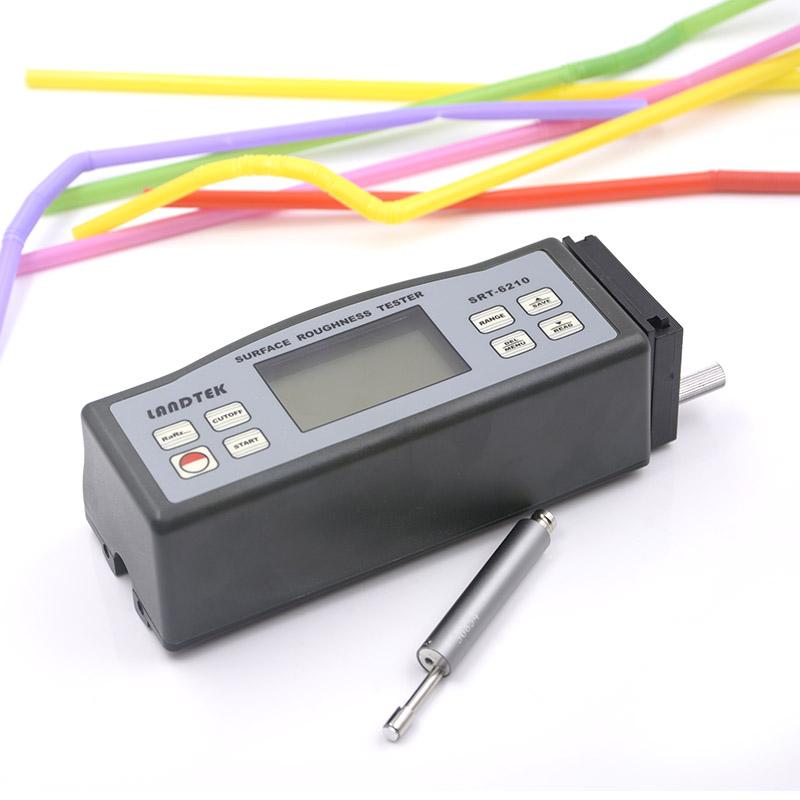

LANDTEK SRT-6210 roughness meter is a testing instrument used to measure the surface roughness of objects in the production site. It has a 10mm blue backlight LCD display and can measure four parameters of Ra, Rz, Rq, and Rt. The measurement is accurate The degree is not more than ±10%. SRT-6210 Roughness Meter is a sensor that adopts the principle of inductive measurement. The radius of the stylus is 5 microns, and it is made of diamond material with good hardness. The roughness meter has a built-in lithium-ion rechargeable battery. In addition, the roughness meter has an automatic power-off function, which can maintain a longer service life of the battery.

Product principle

When the SRT-6210 roughness meter measures the surface roughness of the workpiece, the sensor is placed on the measured surface of the workpiece, and the driving mechanism inside the SRT-6210 roughness meter drives the sensor to slide at a constant speed along the measured surface. The sensor passes through the built-in The sharp stylus feels the roughness of the measured surface. At this time, the roughness of the measured surface of the workpiece will cause the displacement of the stylus. The surface roughness is proportional to the analog signal, which enters the data acquisition system after amplification and level conversion. The DSP chip performs digital filtering and parameter calculation on the collected data, and the measurement results are displayed on the LCD.

Features and advantages

1. SRT-6210 roughness meter measures four roughness parameters of Ra, Rz, Rq and Rt.

2. The roughness meter has a built-in large-capacity lithium-ion rechargeable battery and a charge controller.

3. Integrated built-in high-precision inductance sensor.

4. It has the function of metric and imperial conversion and automatic shutdown function.

5. SRT-6210 roughness meter has the functions of data storage and data viewing.

6. It can be connected to the computer through USB and RS-232 data lines, and Bluetooth can also be selected for data output.

Pictures

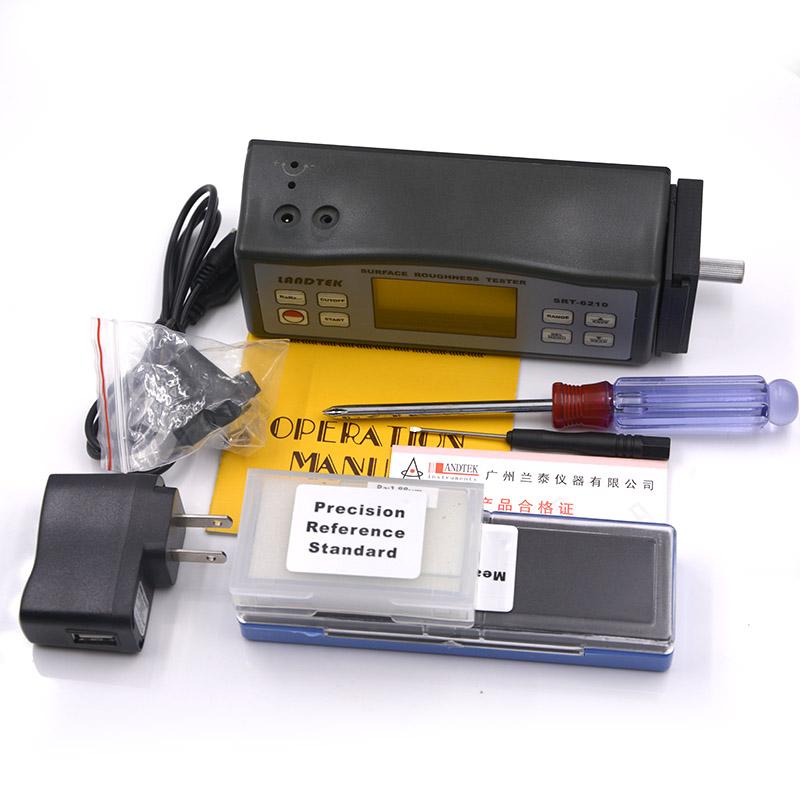

Packing list：Host x1, small screw driver x1, adjustable bracket x1, standard sample SSP-180x1, standard Sensors SRP-100x1, Sensors protective cover x1, power adapter x1, portable case x1, manual x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
