Zehntner ZUA2000.150 adjustable wet Film Applicator 150mm Film Applicator

SE
3Mm range adjustable, minimum scale 5μm, 150mm application width, anode treated aluminum alloy material, accuracy +/- 10µm
$2589.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT
Similar products

Zehntner By Proceq ZUA2000.150 Adjustable Wet Film ApplicatorSPEC

Zehntner By Proceq ZUA2000.150 Adjustable Wet Film ApplicatorDetails

Zehntner By Proceq ZUA2000.150 Adjustable Wet Film ApplicatorPacking list

SKU
NB011481
type
Removable drawdown blade
WFT
0~3000μm
application width
150mm
Graduation
5μm
Accuracy
±10µm
standard
ASTM D1640 ISO 11998
Net Weight
229g-479g
material
Anoded aluminum alloy
ZUA2000.150
Adjustable Wet Film Applicator
3Mm range adjustable, minimum scale 5μm, 150mm application width, anode treated aluminum alloy material, accuracy +/- 10µm
Zehntner ZUA2000.150 adjustable wet Film Applicator 150mm Film Applicator Picture

The ZUA 2000 series is a general-purpose adjustable Film Applicator with an adjustable gap height of 0 μm ~ 3,000 μm for the preparation of uniform films or coating layers with a maximum difference of 3000 μm on flat substrates. ZUA 2000 is availableAdjustable Film ApplicatorUse on rugged substrates such as vacuum plates, glass plates, test panels, or test charts.


ZUA 2000 is made of anodized aluminium alloy that is non-decolorizing, resistant to alkali and corrosion, and can be completely disassembled and solvent-cleaned.

Advantages

Simple to use

Reliable results

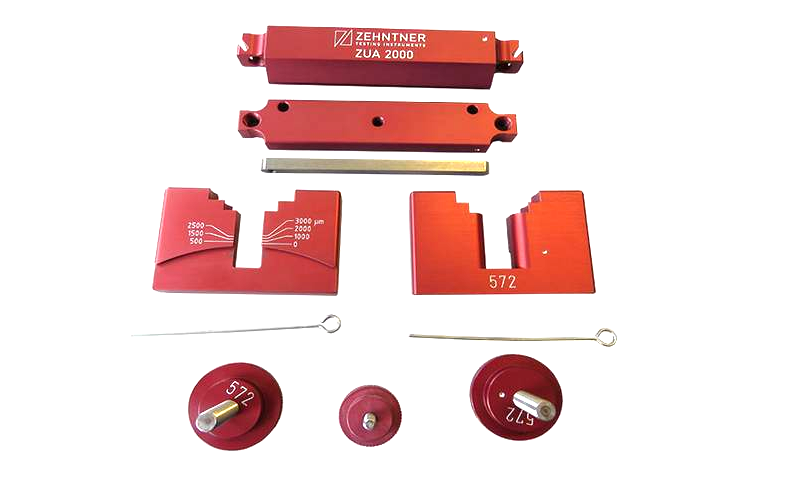

Easy to disassemble and reassemble for cleaning

Series selection

ModelCoating film width
ZUA   2000.6060mm
ZUA   2000.8080mm
ZUA   2000.100100mm
ZUA   2000.150150mm
ZUA   2000.200200mm
ZUA   2000.250250mm
Other parameters
Film thickness0~3000μm
Minimum scale5μm
MaterialAnodized aluminium alloy
*Due to physical phenomena, the maximum wet film thickness will be slightly smaller than the marking scale of the applicator.

Meets standards

ASTM D823

ASTM D1640 (depending on fitting)

ISO 11998 (depending on accessories)


FAQ
QThe directions of this spring are inconsistent, the left and right, one inward and one outward.
A Manual Spreader has no effect. If it is a coater-driven Spreader, you can change the spring direction to the same one.
QIs this Adjustable Film Applicator 250 wide?
A No, the most model is 220mm, and other brands are available, such as TR 3101/250.
QDoes the doctor blade knob need to be tightened when used?
A Just fix the two scale knobs on the side and don't loosen.
QCan the ZUA adjustable wet Film Applicator be used for metal substrate films?
A ZUA coating applicator is not suitable for metal substrates (metal sheet, metal foil, etc.) Spreader test, the metal substrate and ZUA between the two feet is hard friction, not long, ZUA2 feet of the anode processing part will be abrasion, resulting in inaccurate data, and ZUA two feet will scratch the copper foil aluminum foil Spreader substrate.
QCan a liquid with thicker viscosity be prepative?
A Sure
QI want to do a test about the GB1727 standard. Is this adjustable Wet Film Applicator OK?
A Sure
