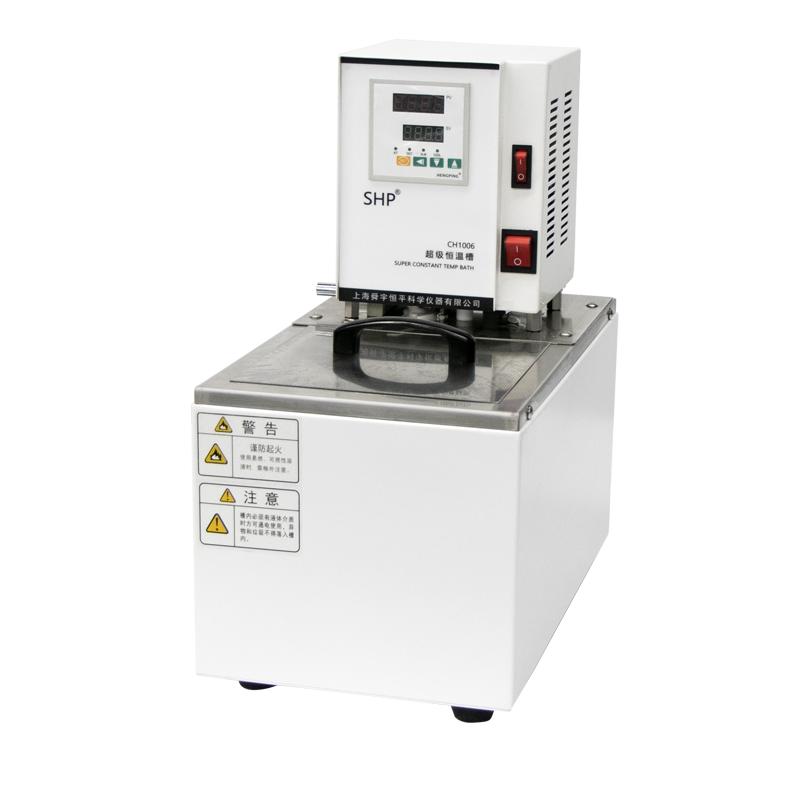

SDPTOP CH1015 Laboratory Thermostat + 5~ 95 ℃/15L Internal and External Circulation
SETemperature range 5~ 95 ℃, Temperature fluctuation +/- 0.05 ℃, temperature resolution 0.1 ℃, Total power 1500W, pump flow 8L/min, microcomputer precision thermostatic control system and imported Pt100 temperature transducer, up to 15L working tank volume, with break couple protection and over-temperature alarm function
$410.00/set
PromotionLoading...
Coupon
Model：
CH1015
Similar products
-
Shangtian Jingyi CH1015 Super Thermostatic Water Bath Thermostat RT + 5~ 95 ℃/15L$ 424.00SE -
Qiwei HS-601B Super constant temperature Water Bath 20L/0.01 ℃$ 394.00SE -
QIWEI HS-501B Circulating Water Bath 15L/0.01 ℃$ 377.00SE -
FANGRUI CH1015 Constant Temperature Circulating Bath, temperature control: room temperature + 10~100 ℃ volume 15L$ 501.00SE
SDPTOP CH1015 Super ThermostatSPEC
SDPTOP CH1015 Super ThermostatDetails
SDPTOP CH1015 Super ThermostatPacking list
- SKU
- NB011559
- Temperature range
- 5~95℃
- Temperature fluctuation
- ±0.05℃
- temperature resolution
- 0.1℃
- Tank opening Dimensions
- 255*180mm
- Tank Depth
- 200mm
- Circular mode
- Internal/external circulation
- Total power
- 1500W
- Dimensions
- 310*430*470mm
- Pump flow
- 8L/min
- Tank Volume
- 15L
- Tank Material
- CH1015B stainless steel
- Box material
- CH1015B stainless steel
- Temperature transducer
- Pt100
CH1015
Super Thermostat
Temperature range 5~ 95 ℃, Temperature fluctuation +/- 0.05 ℃, temperature resolution 0.1 ℃, Total power 1500W, pump flow 8L/min, microcomputer precision thermostatic control system and imported Pt100 temperature transducer, up to 15L working tank volume, with break couple protection and over-temperature alarm function
Features
New design microcomputer precision constant temperature control system Imported Pt100 temperature sensor
With burnout protection and over-temperature alarm function
Temperature fluctuation ±0.05℃ Display resolution 0.1℃
The pump flow rate is 8L/min. The inner tank and box are made of high-quality stainless steel (CH1015B)
FAQ
QWhat is the limit low temperature of this CH1015 Super Thermostatic bath?
A
SDPTOP CH1015 meets the Temperature range of 5 to 95 ° C, with a minimum temperature of 5 ° C.
QDoes the Super Thermostat meet the specifications of GB/T18856.4?
A
Model CH1015 Super Thermostat Compliant
Standard
- 1JJF 2019-2022《Measurement Specification for Temperature Performance of Liquid Constant Temperature Testing Equipment》
- 2JJF 1030-2023《Measurement and Test Norm of Metrological Characteristics of Thermostatic Baths for Temperature Calibration》
- 3JG/T 25-2017《Test method for temperature change resistance of architectural coatings》
- 4JJF 1030-2010《Measurement and Test Norm of Thermostatic Bath's Metrological Characteristics》
- 5GB/T 26808-2011《Thermostatic baths and circulators - Refrigerated baths》
- 6GB/T 18856.4-2008《Test methods for coal water slurry, Part 4: Determination of apparent viscosity》
- 7HG/T 3323-1982《Rubber viscosity determination method (rotational viscometer method)》
- 8FZ/T 50010.3-2011《Pulp for viscose fibres, determination of viscosity》
- 9GB 9278-2008《Temperature and Humidity of Coating Specimen State Adjustment and Test》
- 10GB/T 5561-2012《Surface active agents - Determination of viscosity and flow properties using a rotational viscometer》
