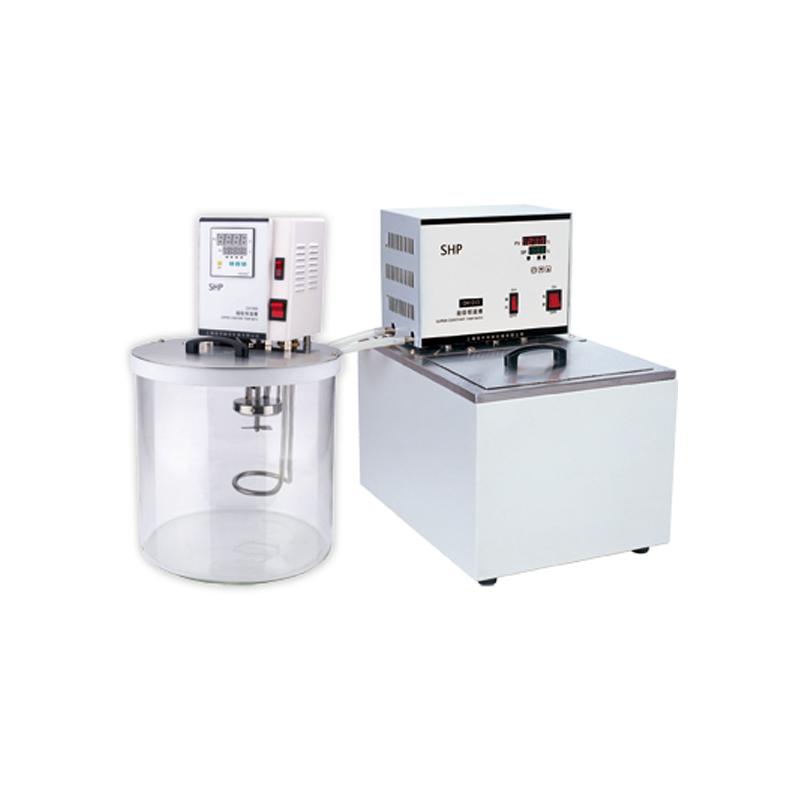

SDPTOP CH1015B high accuracy Thermostatic Water Bath 5~ 100 ℃/16L internal and external circulation
SETemperature range 5~ 100 ℃, Temperature fluctuation +/- 0.05 ℃, Temperature resolution 0.1 ℃, working groove depth 180mm, Microcomputer precision thermostatic control system and imported Pt100 temperature transducer, with 8L/min powerful pump flow and internal and external circulation system
$601.00/set
PromotionLoading...
Coupon
Model：
CH1015B
Similar products
-
Shangtian Jingyi CH1015 Super Thermostatic Water Bath Thermostat RT + 5~ 95 ℃/15L$ 424.00SE -
Qiwei HS-601B Super constant temperature Water Bath 20L/0.01 ℃$ 394.00SE -
QIWEI HS-501B Circulating Water Bath 15L/0.01 ℃$ 377.00SE -
Kenton CS-6020 Super Constant Temperature Circulating Water Tank 20L$ 577.00SE -
FANGRUI CH1015 Constant Temperature Circulating Bath, temperature control: room temperature + 10~100 ℃ volume 15L$ 501.00SE
SDPTOP CH1015B Super ThermostatSPEC
SDPTOP CH1015B Super ThermostatDetails
SDPTOP CH1015B Super ThermostatPacking list
- SKU
- NB011560
- Temperature range
- 5~100℃
- Temperature fluctuation
- ±0.05℃
- Temperature Resolution
- 0.1℃
- Tank opening Dimensions
- 225*200mm
- Tank Depth
- 180mm
- Total power
- 1500W
- Dimensions
- 320*420*410mm
- Tank Volume
- 16L
- Tank Material
- CH1015B stainless steel
- Box material
- CH1015B stainless steel
- temperature transducer
- Pt100
CH1015B
Super Thermostat
Temperature range 5~ 100 ℃, Temperature fluctuation +/- 0.05 ℃, Temperature resolution 0.1 ℃, working groove depth 180mm, Microcomputer precision thermostatic control system and imported Pt100 temperature transducer, with 8L/min powerful pump flow and internal and external circulation system
Features
New design microcomputer precision constant temperature control system Imported Pt100 temperature sensor
With burnout protection and over-temperature alarm function
Temperature fluctuation ±0.05℃ Display resolution 0.1℃
The pump flow rate is 8L/min. The inner tank and box are made of high-quality stainless steel (CH1015B)
FAQ
QWhat is the limit low temperature of CH1015B Super Thermostatic bath?
A
SDPTOP CH1015B meets the Temperature range of 5 to 100 ° C, with a minimum temperature of 5 ° C.
QDo you have the Super Thermostat required by the HG/T3323 standard?
A
This CH1015B Super Thermostat will do.
Knowledge
Standard
- 1JJF 2019-2022《Measurement Specification for Temperature Performance of Liquid Constant Temperature Testing Equipment》
- 2JJF 1030-2023《Measurement and Test Norm of Metrological Characteristics of Thermostatic Baths for Temperature Calibration》
- 3JG/T 25-2017《Test method for temperature change resistance of architectural coatings》
- 4JJF 1030-2010《Measurement and Test Norm of Thermostatic Bath's Metrological Characteristics》
- 5GB/T 26808-2011《Thermostatic baths and circulators - Refrigerated baths》
- 6GB/T 18856.4-2008《Test methods for coal water slurry, Part 4: Determination of apparent viscosity》
- 7HG/T 3323-1982《Rubber viscosity determination method (rotational viscometer method)》
- 8FZ/T 50010.3-2011《Pulp for viscose fibres, determination of viscosity》
- 9GB 9278-2008《Temperature and Humidity of Coating Specimen State Adjustment and Test》
- 10GB/T 5561-2012《Surface active agents - Determination of viscosity and flow properties using a rotational viscometer》
