LEICI DZS-706 multiparameter Water Quality Analyzer Measuring temperature/dissolved oxygen/conductivity/PH value

LEICI DZS-706 multiparameter Water Quality Analyzer is suitable for the detection of temperature value, dissolved oxygen value, conductivity value, pH value and other water parameter values in aquaculture, agriculture and forestry, and other industries.
Model：
Contact
Details SPEC OI
Similar products

LeiCi DZS-706 Multiparameter Water Quality AnalyzerSPEC

LeiCi DZS-706 Multiparameter Water Quality AnalyzerDetails

LeiCi DZS-706 Multiparameter Water Quality AnalyzerPacking list

SKU
NB001165
Instrument level
pH: 0.01 grade; conductivity: 1.0 grade
Measurement parameters
Conductivity Detector, dissolved oxygen, pH/pX, temperature
pH/PX Measurement range
（-2.00~20.00)pH/pX
ORP Measurement range
±1999.9mV
Ion concentration Measurement range
(0~19990) Optional units: pX, mol/L, mmol/L, g/L, mg/L, ug/L
Conductivity range
0.000μS/cm~199.9ｍS/cm
Resistivity range
0.00Ω·cm~20.00MΩ·cm
TDS range
0.000mg/L~100g/L
Salinity range
0.00~8.00%
DO range
0.00~19.99mg/L
DO% Measurement range
0.0~199.9%
Response time
≤ 45s (90% Response at 20 ℃)
Measurement range
-5.0~105.0℃
pH/pX resolution
0.01pH/pX
ORP resolution
0.1mV
EC resolution
0.001μS/cm
Resistivity resolution
0.01Ω·cm
TDS resolution
0.001mg/L
Salinity resolution
0.01%
DOS resolution
0.01mg/L
DO% resolution
0.10%
Temperature Resolution
0.1℃
pH/pX intrinsic error
+/- 0.01pH +/- 1 word
ORP intrinsic error
±0.1%FS
EC intrinsic error
±1.0％FS
Resistivity intrinsic error
±1.0％FS
TDS intrinsic error
±1.0％FS
Salinity intrinsic error
±0.2%
DO intrinsic error
±0.30mg/L
DO% intrinsic error
±10.0%
Temperature intrinsic error
+/- 0.3 ℃ +/- 1 word
Temperature compensation range
Automatic, PH: (0.0~100.0) ℃; Conductivity Detector: (0.0~100.0) ℃; dissolved oxygen: (0.0~40.0) ℃
Power Supply
DC universal Power Supply (9V DC, 800mA)
Dimensions
280*215*93mm
Weight
1kg
DZS-706
Multiparameter Water Quality Analyzer

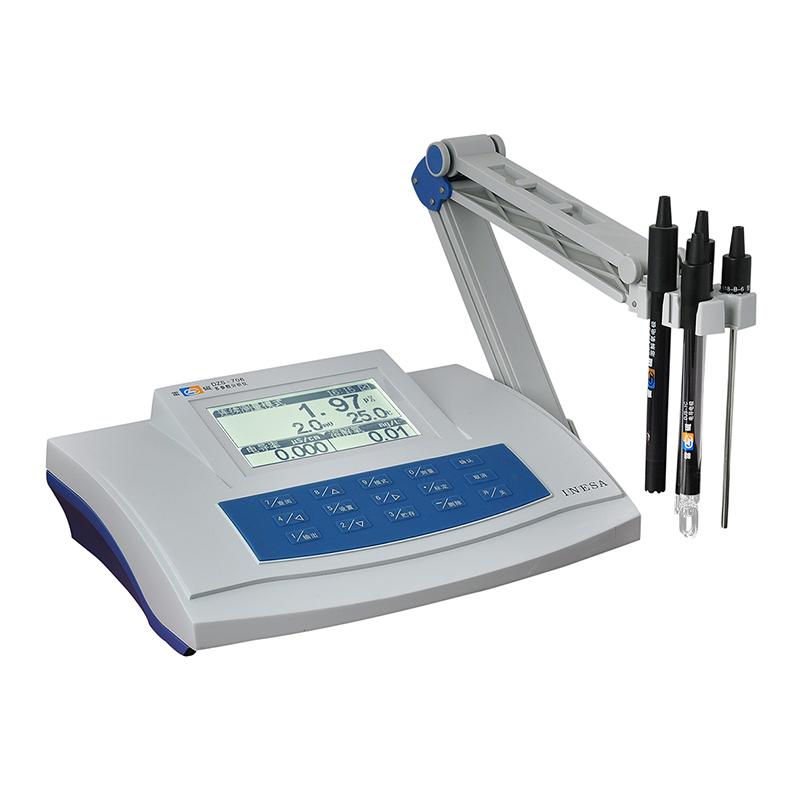

LEICI DZS-706 multiparameter Water Quality Analyzer Measuring temperature/dissolved oxygen/conductivity/PH value Picture

Introduction

Thunder Magnetic DZS-706 multi-parameter Water Quality Analyzer is a desktop multi-function water quality testing instrument, with a large LCD LCD screen, with backlight display function, the operation language is all Chinese design, with continuous, timing, balanced three measurement modes, can achieve different measurement requirements.DZS-706 multi-parameter Water Quality Analyzer can measure temperature value, conductivity value, dissolved oxygen value, PH value and other parameter values at the same time, the measurement is accurate and reliable, the measurement PH value level is 0.01 grade, and the conductivity is 1 grade.

Introduction to functional modules

1. Dissolved oxygen measurement module function

DZS-706 multi-parameter Water Quality AnalyzerIt has the functions of automatic zero oxygen calibration and full calibration, and can realize two calibration methods: air pressure calibration and salinity calibration.

2. Conductivity measurement module function

1）DZS-706 multi-parameter Water Quality AnalyzerIt supports the measurement of conductivity, resistivity, TDS, and salinity.

2) Automatic calibration, automatic range switching, can calibrate the cell constant or TDS conversion coefficient. Among them, DZB-718 supports 2-point calibration.

3. PH/ion measurement module function

1) Automatically identify 10 kinds of buffer solutions, allowing self-built standard solution sets.

2）DZS-706 multi-parameter Water Quality AnalyzerCapable of automatic 1-5 point calibration, manual/automatic temperature compensation is possible.

3) Provide a variety of commonly used ion modes such as: H+, Ag+, Na+, K+, NH4+, Cl-, F-, etc., users can also customize ion modes.

4) Provide a variety of ion concentration units, such as ug/L, mg/L, g/L, mol/L, mmol/L, PX, etc., to achieve automatic switching.

5) It has a direct concentration measurement mode.

Features and advantages

1. Manual/automatic temperature compensation function.

2.DZS-706 multi-parameter Water Quality AnalyzerIt can measure pX/pH, ORP, conductivity, TDS, salinity, resistivity, dissolved oxygen, saturation, and temperature.

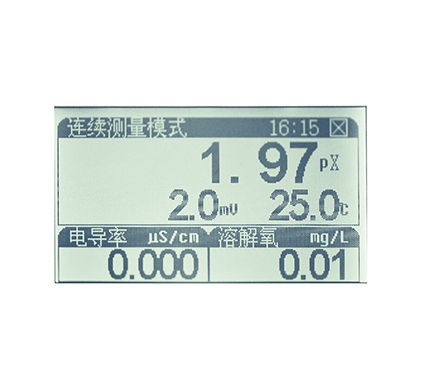

2. Adopt large screen LCD display, with backlight design, Chinese operation interface.

4. Support zero-oxygen calibration and fullness calibration.

5. When the conductivity is measured, the frequency is automatically switched to ensure the measurement accuracy.

6.DZS-706 multi-parameter Water Quality AnalyzerWith power-off protection, it can protect the data security.

Live shot

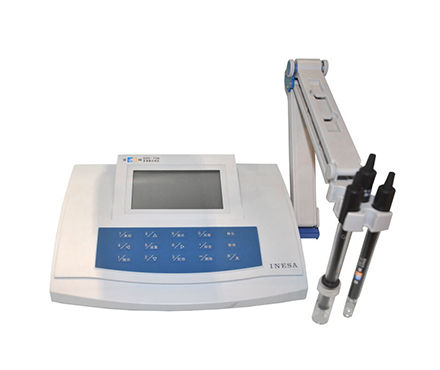

Detail diagram of the main unit of the DZS-706 multi-parameter Water Quality Analyzer

FAQ
QDZS-706 measurement TDS value, how to choose Conductivity detector electrode?
A Hello, when measuring high TDS, a large constant Conductivity detector electrode is generally used. When TDS ≥ 10.00 g/L, an electrode with an electrode constant of 5 or 10 needs to be used.
QHow does DZS-706 Water Quality Analyzer operate? Do you have any instructions?
A Hello, each instrument is equipped with an operation manual. You can also download the "operation manual" on this product page to read.
QWhat parameters can the DZS-706 Water Quality Analyzer test?
A Hello, DZS-706 supports the measurement of several parameters such as PH/PX, Conductivity detector, dissolved oxygen, and temperature. It needs to be equipped with corresponding modules to perform measurement operations.
QIs there anything to pay attention to when the DZS-706 first operates the test Conductivity detector value?
A Hello, Conductivity detector electrode is used for the first time or after long-term storage, soak the electrode in absoluteethanol for 1 minute, and then fully clean the Conductivity detector electrode with deionized water.
QDo I need to set atmospheric pressure and salinity values during the DZS-706 test?
A Hello, no settings are allowed. The default atmospheric pressure value of this Water Quality Analyzer is 101.3KPa, and the default salinity value is 0.0g/L.
