Specifications
| Instrument level | pH: 0.01 grade; conductivity: 1.0 grade |
| Measurement parameters | Conductivity Detector, pH/pX, temperature |
| pH/PX Measurement range | （-2.00~20.00)pH/pX |
| ORP Measurement range | ±1999.9mV |
| Ion concentration Measurement range | (0~19990) Optional units: pX, mol/L, mmol/L, g/L, mg/L, ug/L |
| Conductivity range | 0.000μS/cm~199.9ｍS/cm |
| Resistivity range | 0.00Ω·cm~20.00MΩ·cm |
| TDS range | 0.000mg/L~100g/L |
| Salinity range | 0.00~8.00% |
| Measurement range | -5.0~105.0℃ |
| pH/pX resolution | 0.01pH/pX |
| ORP resolution | 0.1mV |
| EC resolution | 0.001μS/cm |
| Resistivity resolution | 0.01Ω·cm |
| TDS resolution | 0.001mg/L |
| Salinity resolution | 0.01% |
| Temperature Resolution | 0.1℃ |
| pH/pX intrinsic error | +/- 0.01pH +/- 1 word |
| ORP intrinsic error | ±0.1%FS |
| EC intrinsic error | ±1.0％FS |
| Resistivity intrinsic error | ±1.0％FS |
| TDS intrinsic error | ±1.0％FS |
| Salinity intrinsic error | ±0.2% |
| Temperature intrinsic error | +/- 0.3 ℃ +/- 1 word |
| Temperature compensation range | Automatic, PH: (0.0~100.0) ℃; Conductivity Detector: (0.0~100.0) ℃; dissolved oxygen: (0.0~40.0) ℃ |
| Power Supply | DC universal Power Supply (9V DC, 800mA) |
| Dimensions | 280*215*93mm |
| Weight | 1kg |
Packing list

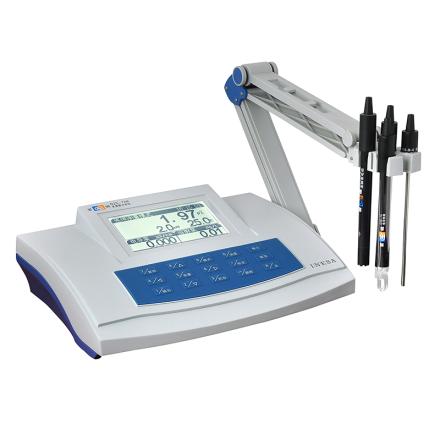

Multiparameter analyzer x1, DJS-1C platinum black electrode x1, E-201F pH composite electrode x1, T-818-B-6 temperature sensor x1, REX-3 multifunctional electrode holder x1, pH standard buffer pH4,7,9 each x5, specification x1, certificate x1
After-sales instructions
Warranty days: 365 days
1. The warranty period is 1 year (the electrode is a consumable and is not covered by the warranty);
2. After-sales service is provided by the original factory;
3. Free maintenance during the warranty period (except for improper use), and long-term technical support outside the warranty period.
