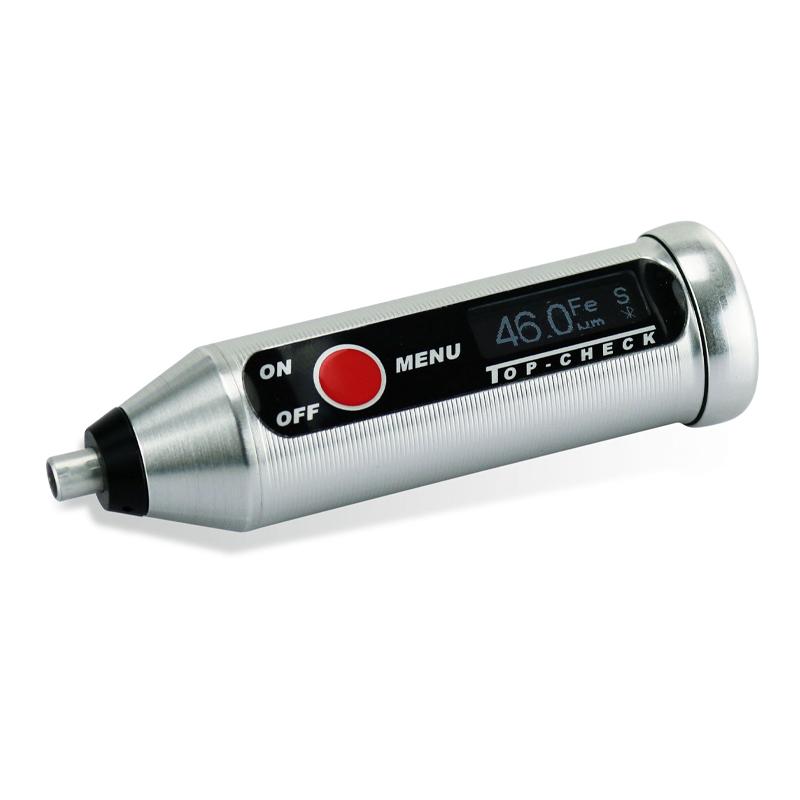

List Magnetik Pocket TOP-CHECK FE Pocket platings Thickness Gauge

TOP-CHECK FE Pocket coated platings Thickness Gauge Measurement principle magnetic Induction, Measurement range 0~5000 μm, equipped with wear-resistant ruby probe, even on rough surface measurement also has a considerable service life.

$1159.00/set

PromotionLoading...

Coupon

Model：

TOP-CHECK FE

List-Magnetik

Contact

Details SPEC Con

List-Magnetik TOP-CHECK FE Coated platings Thickness GaugeSPEC

List-Magnetik TOP-CHECK FE Coated platings Thickness GaugeDetails

List-Magnetik TOP-CHECK FE Coated platings Thickness GaugePacking list

SKU: NB011662

Measurement principle: magnetic Induction

Measurement range: 0~5000μm

margin of error: ±1μm/±1~5%

resolution: 0.1μm|1μm|0.01mm

Calibrated mode: One point calibrated, two point calibrated

Unit display: μm/mils

statistical function: Do not have

icon function: none

Interface: Do not have

Data storage: Do not have

Power Supply: 1.5V AA

Standards: ISO2178

system language: English, German optional

Weight: 72g

Dimension: Φ28*98mm

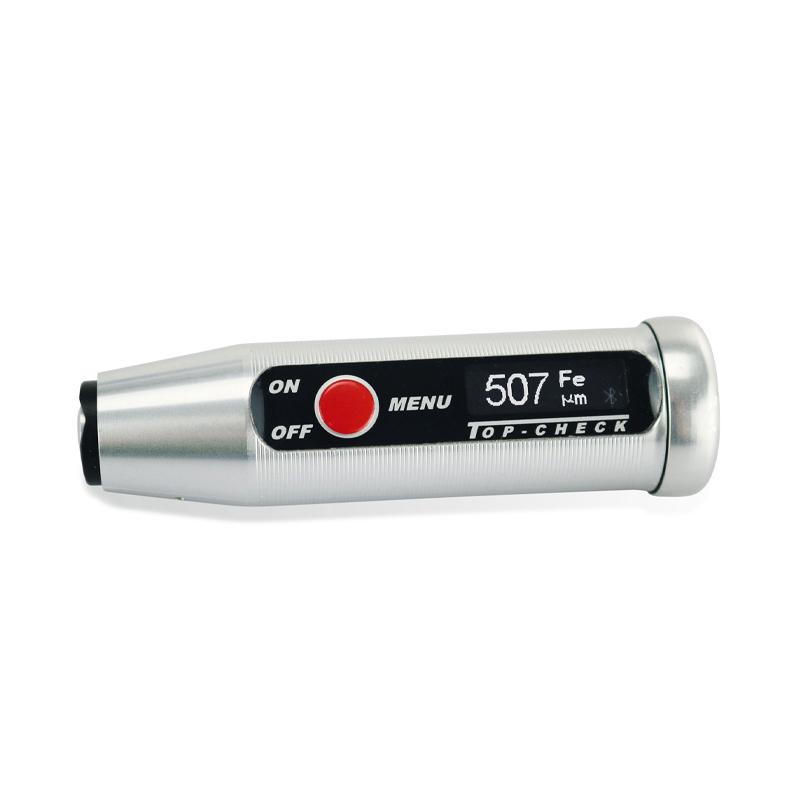

TOP-CHECK FE

Coated platings Thickness Gauge

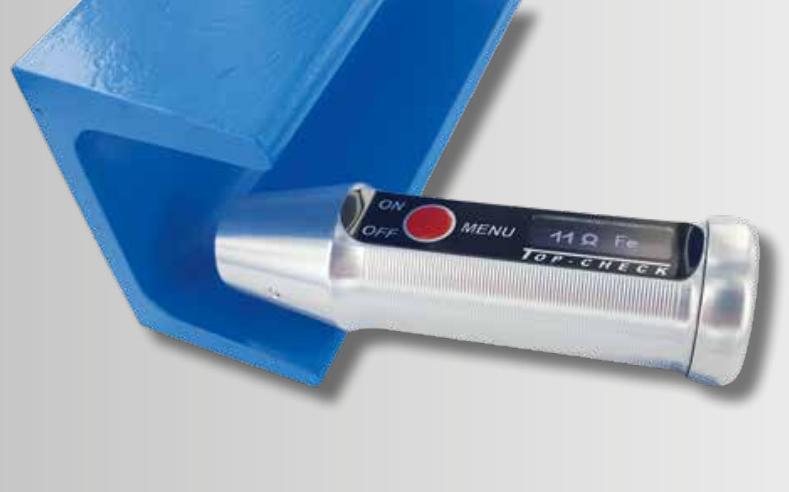

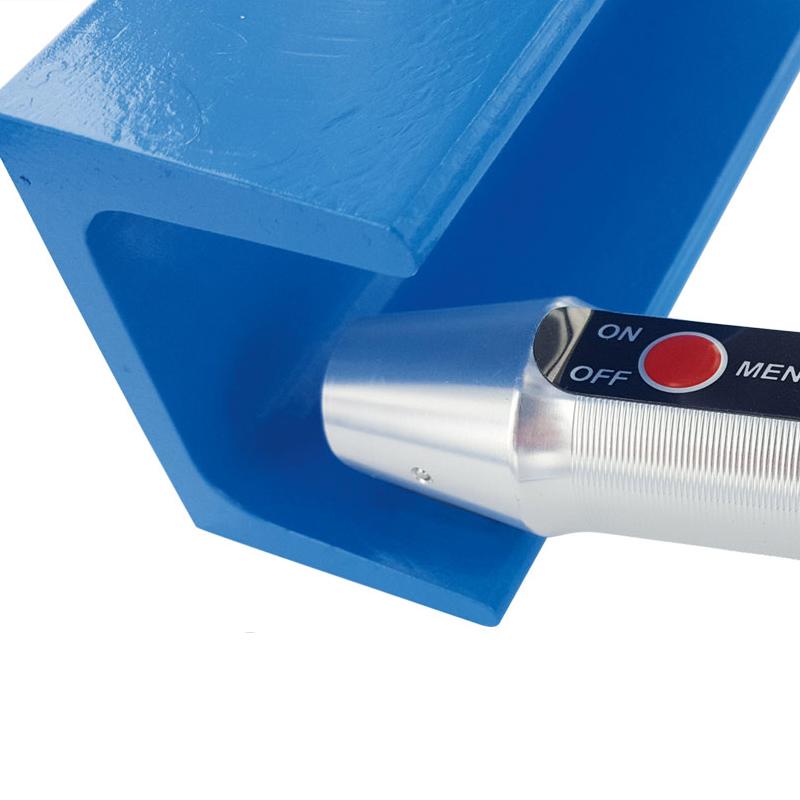

The pocket-sized TOP-CHECK Coated Thickness Gauge is not larger than conventional measuring probes, with its light weight, small size, and can rotate 90 degrees to the probe, suitable for all kinds of small space measurements. Equipped with a wear-resistant ruby probe, it has a considerable service life even for measurements on rough surfaces.

- Pure metal housing, can have IP64 waterproof rating

- Built-in lighting function LED graphic display

- One-click operation, multi-language menu navigation, operation and its simplicity

- Measured value memory and Bluetooth wireless interface (optional)

- Free Windows Transfer Software - Download at www.list-magnetik.de address

- Free mobile app for Android - Download from Google Play Store: Processed via email delivery

Technical Parameters:

Model	TOP-CHEK FE (Basic)	TOP-CHEK FE-B (Statistical)	TOP-CHEK FN (Basic)	TOP-CHEK FN-B (Statistical)
structure	All-in-one (Fe)		All-in-one (Fe/NFe)
Meets standards	ISO 2178, ISO 2360,
use	It is applied to the measurement of the thickness of all non-magnetic coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.		It is used to measure the thickness of all insulating coatings on non-ferrous metals (aluminum, zinc, copper, etc.), such as anodized films, paints, coatings, etc. It is also used to measure the thickness of all non-magnetic coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.
Measuring range	Fe：0-5000um		Fe：0-5000um NFe：0-2000um
Display resolution	1- 100um: 0.1un > 100um: 1 um >1000um: 0.01 mm
accuracy	Less than 100um: ±1um 100 - 1000um: ±1% 1000 - 2000um: ±3% ≥2000um: ±5%
Power supply	1.5V AA battery
calibration	Single-point/two-point correction function
Shutdown	Automatic/manual shutdown
Unit Conversion	Metric to Imperial conversion UM/MILS:
Data storage	Nope	It has 2 x 500 reading storage	Nope	It has 2 x 500 reading storage
language	English and German are optional
Statistics (maximum, minimum, average. NO。 STD。 DEV）	Nope	have	Nope	have
Stored readings and statistics are displayed	Nope	have	Nope	have
LED graphic display lighting	have
Bluetooth interface	Nope	have	Nope	have
Dimensions	Φ28 x 98 mm
Battery weight included	72g
Device configuration	All-in-one main unit (including magnetic induction ruby dual-angle probe), substrate test plate (Fe), standard calibrator (2), operation manual, battery, and packaging box.		The all-in-one main unit (including magnetic induction/eddy current ruby dual-angle integrated probe), one matrix test board (Fe/NFe), two standard correction sheets, operation manual, battery, and packaging box.

Instrument selection

TOP-CHEKFE type: Magnetic induction probe with ISO2178. It is applied to the measurement of the thickness of all non-magnetic coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.

TOP-CHEKFN type: Equipped with a combination of magnetic induction and eddy current probes that meet the ISO2178 and ISO2360. It is used to measure the thickness of all insulating coatings on non-ferrous metals (aluminum, zinc, copper, etc.), such as anodized films, paints, coatings, etc. It is also used to measure the thickness of all non-magnetic coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.

FAQ

QWhat is the principle of thickness measurement for this one?

A This is a magnetic Induction Thickness Gauge, which can be used to test the nonmagnetic Coating thickness on magnetic metal substrates.

QCan the thickness gauge transmit data via Bluetooth?

A Yes, but the Bluetooth interface will be purchased separately.

QThis TOP-CHECK FE pocket coated thickness gauge can measure instrument shell painted Film thickness measurement?

A Hello, this is the principle of magnetic induction, which can measure the magnetic metal substrate. If the instrument shell is made of magnetic metal, if it is made of aluminum or plastic, you need to choose the Miscellaneous principle thickness gauge. For details, you can consult NBchao customer service.

QCan TOP-CHECK FE coated platings thickness gauge measure the thickness of anti-corrosion coating?

A Yes, this is a magnetic Induction Coating thickness gauge. The range is 5mm.

QDo you have the platings thickness gauge mentioned in GB/T 8923.1?

A The TOP-CHECK FE platings thickness gauge can be
