List Magnetik Pocket TOP-CHECK FN Pocket platings Thickness Gauge

SE
TOP-CHECK FN Pocket coated platings Thickness Gauge Measurement principle magnetic Induction + eddy Current, Measurement range Fe; 0~5000μm; NFe; 0~2000μm, with angle swirling/spinning 90 degrees probe
$1548.00/set
PromotionLoading...
Coupon
Contact
Details SPEC Con

List-Magnetik TOP-CHECK FN Coated platings Thickness GaugeSPEC

List-Magnetik TOP-CHECK FN Coated platings Thickness GaugeDetails

List-Magnetik TOP-CHECK FN Coated platings Thickness GaugePacking list

SKU
NB011672
Measurement principle
Magnetic Induction + eddy Current
Measurement range
Fe；0~5000μm；NFe；0~2000μm
margin of error
±1μm/±1~5%
resolution
0.1μm|1μm|0.01mm
Calibrated mode
One point calibrated, two point calibrated
Unit display
μm/mils
statistical function
Do not have
icon function
none
Interface
Do not have
Data storage
Do not have
Power Supply
1.5V AA
Standards
ISO2178 and ISO2360
system language
English, German optional
Weight
72g
Dimension
Φ28*98mm
TOP-CHECK FN
Coated platings Thickness Gauge

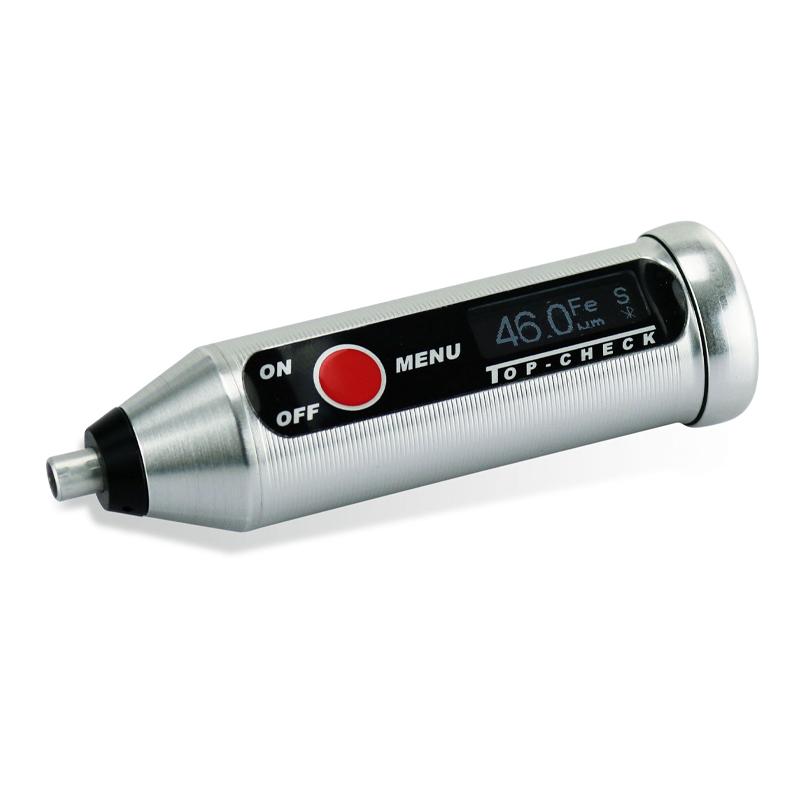

List Magnetik Pocket TOP-CHECK FN Pocket platings Thickness Gauge Picture

The pocket-sized TOP-CHECK Coated Thickness Gauge is not larger than conventional measuring probes, with its light weight, small size, and can rotate 90 degrees to the probe, suitable for all kinds of small space measurements. Equipped with a wear-resistant ruby probe, it has a considerable service life even for measurements on rough surfaces.

- Pure metal housing, can have IP64 waterproof rating

- Built-in lighting function LED graphic display

- One-click operation, multi-language menu navigation, operation and its simplicity

- Measured value memory and Bluetooth wireless interface (optional)

- Free Windows Transfer Software - Download at www.list-magnetik.de address

- Free mobile app for Android - Download from Google Play Store: Processed via email delivery


Technical Parameters:

Model

TOP-CHEK  FE

(Basic)

TOP-CHEK FE-B (Statistical)

TOP-CHEK  FN

(Basic)

TOP-CHEK FN-B (Statistical)

structure

All-in-one (Fe)

All-in-one (Fe/NFe)

Meets standards

ISO 2178, ISO 2360,

use

It is applied to the measurement of the thickness of all non-magnetic coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.

It is used to measure the thickness of all insulating coatings on non-ferrous metals (aluminum, zinc, copper, etc.), such as anodized films, paints, coatings, etc.

It is also used to measure the thickness of all non-magnetic coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.

Measuring range

Fe：0-5000um

Fe：0-5000um

NFe：0-2000um

Display resolution

1-  100um: 0.1un

>  100um: 1 um

    >1000um: 0.01 mm

accuracy

Less than 100um: ±1um

100 - 1000um:  ±1%

1000 - 2000um: ±3%

≥2000um:  ±5%

Power supply

1.5V AA battery

calibration

Single-point/two-point correction function

Shutdown

Automatic/manual shutdown

Unit Conversion

Metric to Imperial conversion UM/MILS:

Data storage

Nope

It has 2 x 500 reading storage

Nope

It has 2 x 500 reading storage

language

English and German are optional

Statistics (maximum, minimum, average. NO。 STD。 DEV）

Nope

have

Nope

have

Stored readings and statistics are displayed

Nope

have

Nope

have

LED graphic display lighting

have

Bluetooth interface

Nope

have

Nope

have

Dimensions

Φ28  x 98 mm

Battery weight included

72g

Device configuration

All-in-one main unit (including magnetic induction ruby dual-angle probe), substrate test plate (Fe), standard calibrator (2), operation manual, battery, and packaging box.

The all-in-one main unit (including magnetic induction/eddy current ruby dual-angle integrated probe), one matrix test board (Fe/NFe), two standard correction sheets, operation manual, battery, and packaging box.

Instrument selection

TOP-CHEKFE type: Magnetic induction probe with ISO2178. It is applied to the measurement of the thickness of all non-magnetic coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.

TOP-CHEKFN type: Equipped with a combination of magnetic induction and eddy current probes that meet the ISO2178 and ISO2360. It is used to measure the thickness of all insulating coatings on non-ferrous metals (aluminum, zinc, copper, etc.), such as anodized films, paints, coatings, etc. It is also used to measure the thickness of all non-magnetic coatings on steel, such as paints, plastics, enamels, chromium, zinc, etc.

FAQ
QCan the TOP-CHECK FN platings thickness gauge measure the thickness of the anticorrosive coating?
A Yes, this one is magnetic Induction + eddy Current Coating thickness gauge. The range is up to 5mm (iron) and 2mm (aluminum).
QCan this Coating thickness gauge test the film thickness on aluminum tubes?
A Hello, yes, this one is the principle of magnetic induction + eddy current thickness measurement, which can be tested.
