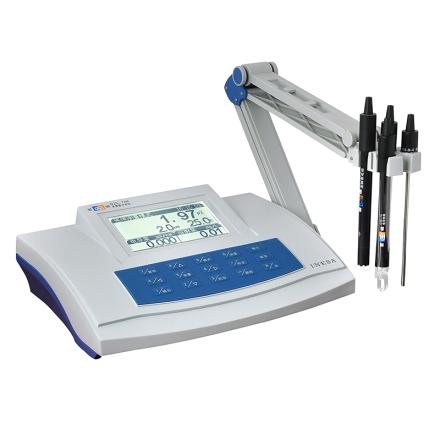

LeiCi DZS-706C (Conductivity detector, dissolved oxygen, ℃) Multiparameter Water Quality Analyzer Specifications
Search
Brand：LeiCi
Model：DZS-706C (Conductivity detector, dissolved oxygen, ℃)
Name：Multiparameter Water Quality Analyzer
Specifications
| Instrument level | Conductivity: 1.0 level |
| Measurement parameters | Conductivity Detector, dissolved oxygen, temperature |
| Ion concentration Measurement range | (0~19990) Optional units: pX, mol/L, mmol/L, g/L, mg/L, ug/L |
| Conductivity range | 0.000μS/cm~199.9ｍS/cm |
| Resistivity range | 0.00Ω·cm~20.00MΩ·cm |
| TDS range | 0.000mg/L~100g/L |
| Salinity range | 0.00~8.00% |
| DO range | 0.00~19.99mg/L |
| DO% Measurement range | 0.0~199.9% |
| Response time | ≤ 45s (90% Response at 20 ℃) |
| Measurement range | -5.0~105.0℃ |
| EC resolution | 0.001μS/cm |
| Resistivity resolution | 0.01Ω·cm |
| TDS resolution | 0.001mg/L |
| Salinity resolution | 0.01% |
| DOS resolution | 0.01mg/L |
| DO% resolution | 0.10% |
| Temperature Resolution | 0.1℃ |
| EC intrinsic error | ±1.0％FS |
| Resistivity intrinsic error | ±1.0％FS |
| TDS intrinsic error | ±1.0％FS |
| Salinity intrinsic error | ±0.2% |
| DO intrinsic error | ±0.30mg/L |
| DO% intrinsic error | ±10.0% |
| Temperature intrinsic error | +/- 0.3 ℃ +/- 1 word |
| Temperature compensation range | Automatic, PH: (0.0~100.0) ℃; Conductivity Detector: (0.0~100.0) ℃; dissolved oxygen: (0.0~40.0) ℃ |
| Power Supply | DC universal Power Supply (9V DC, 800mA) |
| Dimensions | 280*215*93mm |
| Weight | 1kg |
Packing list
Multiparameter analyzer x1, DJS-1C platinum black electrode x1, DO-958-S dissolved Oxygen electrode x1, T-818-B-6 temperature sensor x1, manual x1, certificate x1
After-sales instructions
Warranty days: 365 days
1. The warranty period is 1 year (the electrode is a consumable and is not covered by the warranty);
2. After-sales service is provided by the original factory;
3. Free maintenance during the warranty period (except for improper use), and long-term technical support outside the warranty period.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/1168/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
