Specifications
| Instrument level | Level 0.001 |
| Measurement range -pH/pX | （-2.000~20.000）pH；（0.000~14.000）pX |
| Measurement range mV | -1999.9~1999.9mV |
| Measurement range - Ion concentration | (0~19990), unit μg/L, mg/L, g/L, mol/L, mmol/L |
| Measurement range - temperature | （-5.0~110.0）℃ |
| Resolution -pH/pX | 0.001 pH/pX |
| Resolution -mV | 0.1mV |
| Resolution - concentration | Four significant digits (indicated by scientific notation) |
| Resolution - Temperature | 0.1℃ |
| Intrinsic error -pH/pX | ±0.002 pH/pX |
| Intrinsic error -mV | ±0.03%FS |
| Intrinsic error - Ion concentration | ±0.5% |
| Intrinsic error - temperature | ±0.2℃ |
| Power Supply | DC universal Power Supply (9VDC, 500mA, internal positive and external negative) |
| Dimensions | 280*215*92mm |
| Weight | 1kg |
Packing list

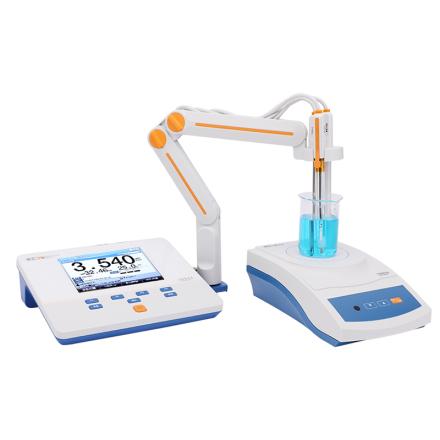

Ion meter x1, 232-01 reference electrode x1, pF-2-01 fluorine electrode x1, T-818-B-6 type temperature electrode x1, Stirrer x1, general power supply x1, general power supply x1, stirringrod x1, multifunctional electrode holder x1, USB interface cable x1, dust cover x1, data collection software x1, pH standard buffer pH4.00/6.86/9.18 each x5, manual (PXSJ-216F, JB-10) x1, certificate x1
After-sales instructions
Warranty days: 365 days
1. The warranty period is 1 year (the electrode is a consumable and is not covered by the warranty);
2. After-sales service is provided by the original factory;
3. Free maintenance during the warranty period (except for improper use), and long-term technical support outside the warranty period.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/1174/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
