YUSHINDT UM-3 precision Thickness Gauge 0.001mm resolution 0.3mm measurement limit

YUSHINDT UM-3 Precision Thickness Gauge high-precision type, with a resolution of 0.001mm, suitable for measurement of the thickness of flat thin steel plates
Model：
Contact
Details SPEC CAT OI

yushindt UM-3 Ultrasonic Thickness GaugeSPEC

yushindt UM-3 Ultrasonic Thickness GaugeDetails

yushindt UM-3 Ultrasonic Thickness GaugePacking list

SKU
NB011742
Measurement range
1.5~ 20Mm (normal mode) 0.3~ 10mm (precision mode)
Probe Frequency
4Hz for regular measurement, 25Hz for MIN Minimum scanning
measurement error
±0.005mm(<3mm)；±0.05mm (<20mm)
Display resolution
0.001/0.01/0.1mm
Calibration method
One point calibrated, two point calibrated
Storage Capacity
Divide 5 arrays to store 500 thickness values
Speed of sound
1000~9999M/s or 0.0394~ 0.3937in/us
Speed of sound storage
Can store 5 different materials Speed of sound
Display
128 × 64 dot matrix LCD display (EL backlight)
Operating language
You can choose Chinese or English.
Environmental temperature
-10~50℃
Power Supply
Two 1.5V AA batteries, when the power is low, there is a low Voltage prompt
Operating Time
200h
Host size
149*73*32mm
Weight
200G (including battery)
UM-3
Ultrasonic Thickness Gauge

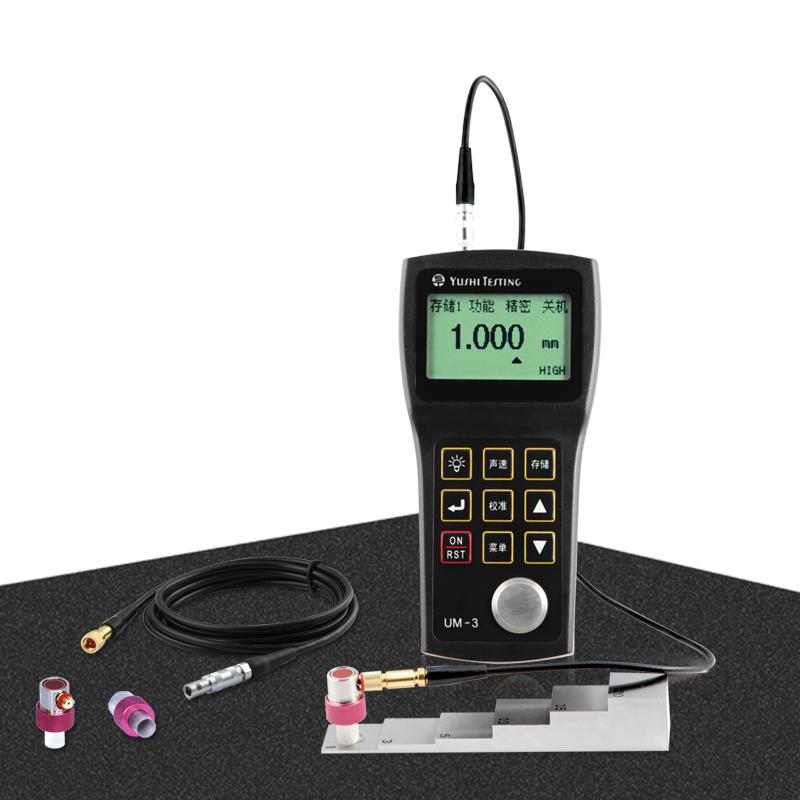

YUSHINDT UM-3 precision Thickness Gauge 0.001mm resolution 0.3mm measurement limit Picture

FAQ
QTest the thickness of the plastic, 3-5mm, measure the material itself, and the accessories on the car, whether large or small. Accuracy does not need to be very high, 0.01mm is enough, which one to use?
A Phase II UTG-2900 is OK.
QHow thick can this UM-3 Ultrasonic Thickness Gauge be measured?
A The UM-3 Ultrasonic Thickness Gauge can detect a minimum thickness of 1.5mm.
