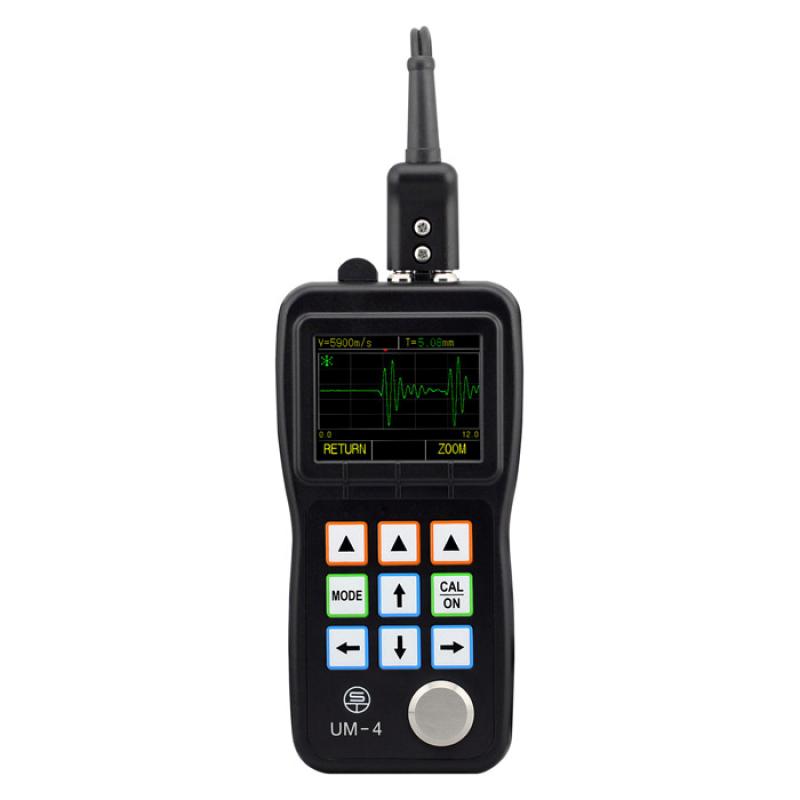

YUSHINDT UM-4 A Scanning Snapshot Ultrasonic Thickness Gauge OLED Screen

UM-4 A Scan Snapshot Ultrasonic Thickness Gauge is economical, resolution 0.01mm, A scan snapshot function, verifies the accuracy of Measured value.
Model：
Contact
Details SPEC CAT OI

yushindt UM-4 Ultrasonic Thickness GaugeSPEC

yushindt UM-4 Ultrasonic Thickness GaugeDetails

yushindt UM-4 Ultrasonic Thickness GaugePacking list

SKU
NB011743
Measurement range
0.7~508mm
Probe Frequency
4Hz, 8Hz, 16Hz per second optional
Lower limit of pipe measurement
Should 20mm * 3.0mm (PT08 probe) Should 15mm * 2.0mm (small diameter tube probe)
measurement error
±0.05mm(≤10mm)；(±0.5%H+0.01)mm(>10mm)
Display resolution
0.01/0.1mm
unit system
mm/inch
Calibration method
One point calibrated, two point calibrated
Repeatability
±0.05mm
Speed of sound
500~9999m/s
Display

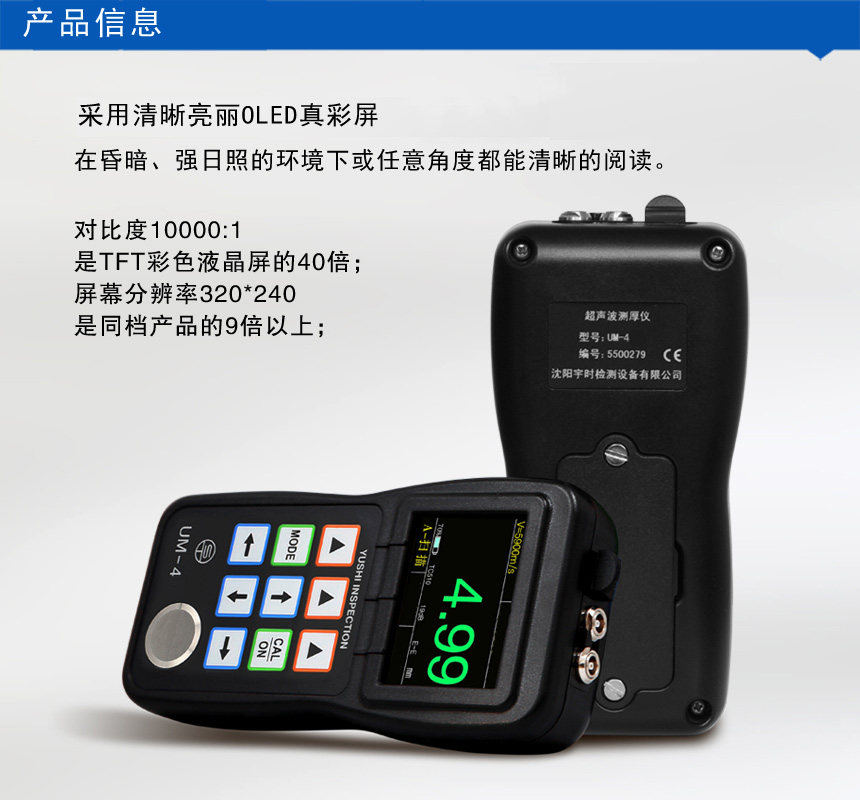

2.4QVGA (320 × 240) color OLED screen, contrast ratio 10000:1
Operating language
Chinese, English, Japanese, German and French are available in five languages
Environmental temperature
-10~50℃
Power Supply
Two 1.5V AA batteries
Operating Time
35h
Host size
153*76*37mm
Weight
280G (including battery)
UM-4
Ultrasonic Thickness Gauge

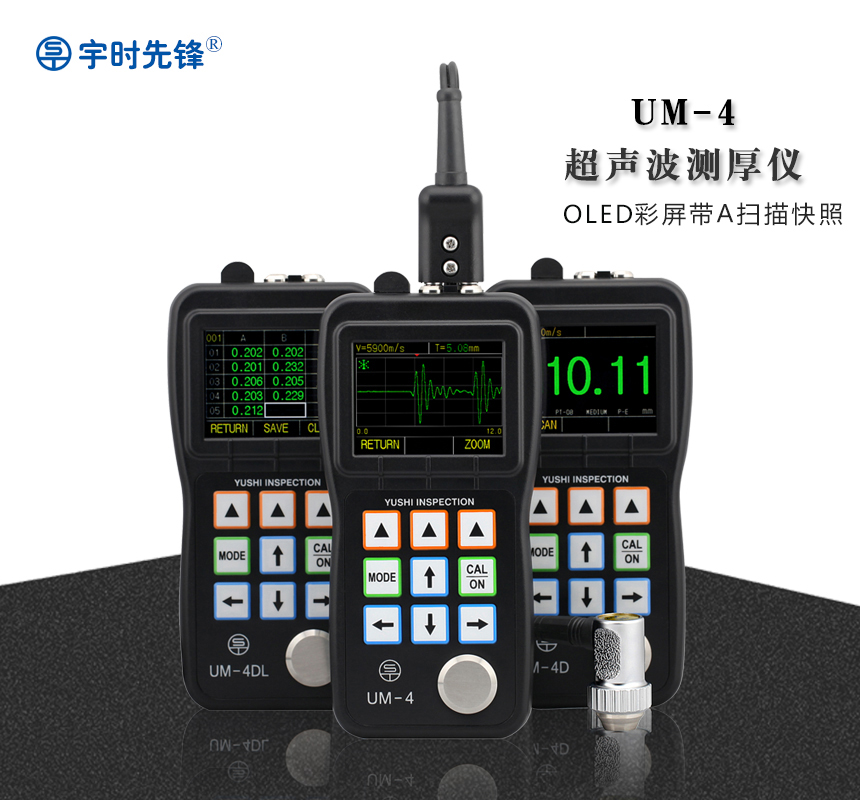

YUSHINDT UM-4 A Scanning Snapshot Ultrasonic Thickness Gauge OLED Screen Picture

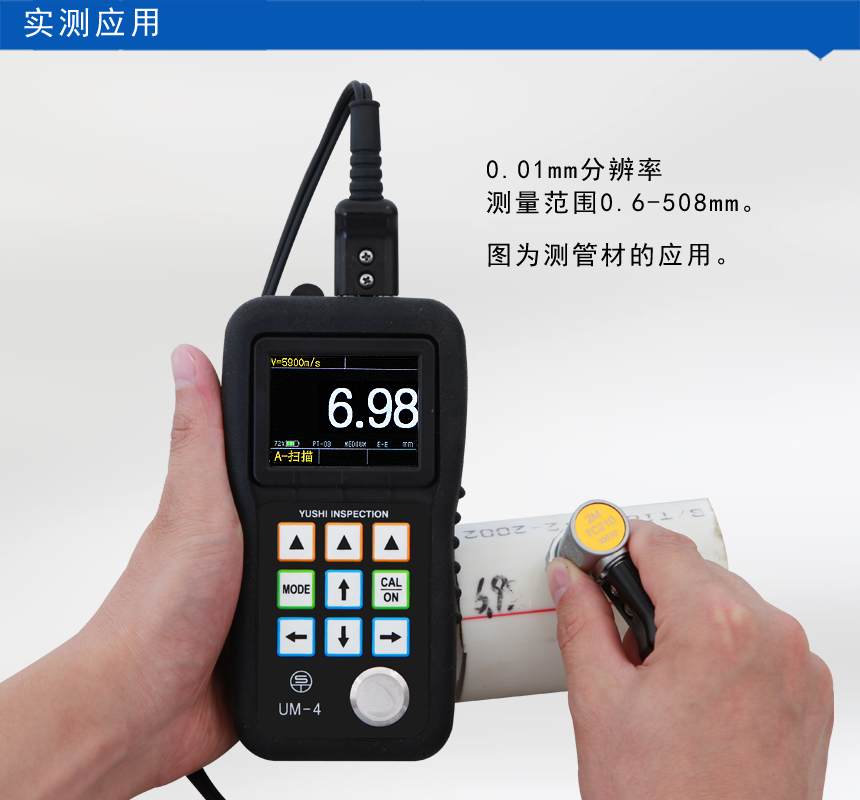

Applications: It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass and other materials; It is also widely used in manufacturing industry, metal processing industry, chemical industry, commodity inspection industry and other testing fields.

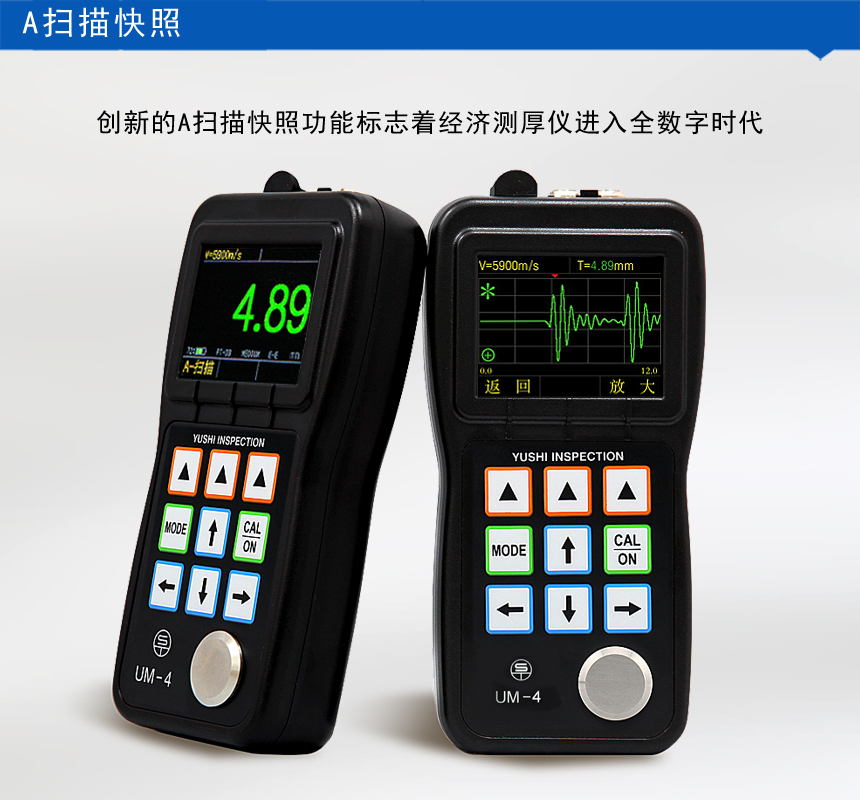

Brief Description: Economical, 0.01mm resolution, A-scan snapshot function to verify the accuracy of the measured values.

FAQ
QTest the thickness of the plastic, 3-5mm, measure the material itself, and the accessories on the car, whether large or small. Accuracy does not need to be very high, 0.01mm is enough, which one to use?
A Phase II UTG-2900 is OK.
QHow thick can this UM-4 Ultrasonic Thickness Gauge be measured?
A UM-4 Ultrasonic Thickness Gauge limit measurement minimum thickness is 0.7 mm.
