YUSHINDT UM-4D Penetrating coating Ultrasonic Thickness Gauge

UM-4D penetrating coating Ultrasonic Thickness Gauge type, including all the characteristics of UM-4, increases the penetrating coating function, and can measure the thickness of coated workpieces
Model：
Contact
Details SPEC CAT OI

yushindt UM-4D Ultrasonic Thickness GaugeSPEC

yushindt UM-4D Ultrasonic Thickness GaugeDetails

yushindt UM-4D Ultrasonic Thickness GaugePacking list

SKU
NB011744
Measurement range
0.7~508mm
Probe Frequency
4Hz, 8Hz, 16Hz per second optional
Lower limit of pipe measurement
Should 20mm * 3.0mm (PT08 probe) Should 15mm * 2.0mm (small diameter tube probe)
measurement error
±0.05mm(≤10mm)；(±0.5%H+0.01)mm(>10mm)
Display resolution
0.01/0.1mm
unit system
mm/inch
Calibration method
One point calibrated, two point calibrated
Repeatability
±0.05mm
Speed of sound
500~9999m/s
Display
2.4QVGA (320 × 240) color OLED screen, contrast ratio 10000:1
Operating language
Chinese, English, Japanese, German and French are available in five languages
Environmental temperature
-10~50℃
Power Supply
Two 1.5V AA batteries
Operating Time
35h
Host size
153*76*37mm
Weight
280G (including battery)
UM-4D
Ultrasonic Thickness Gauge

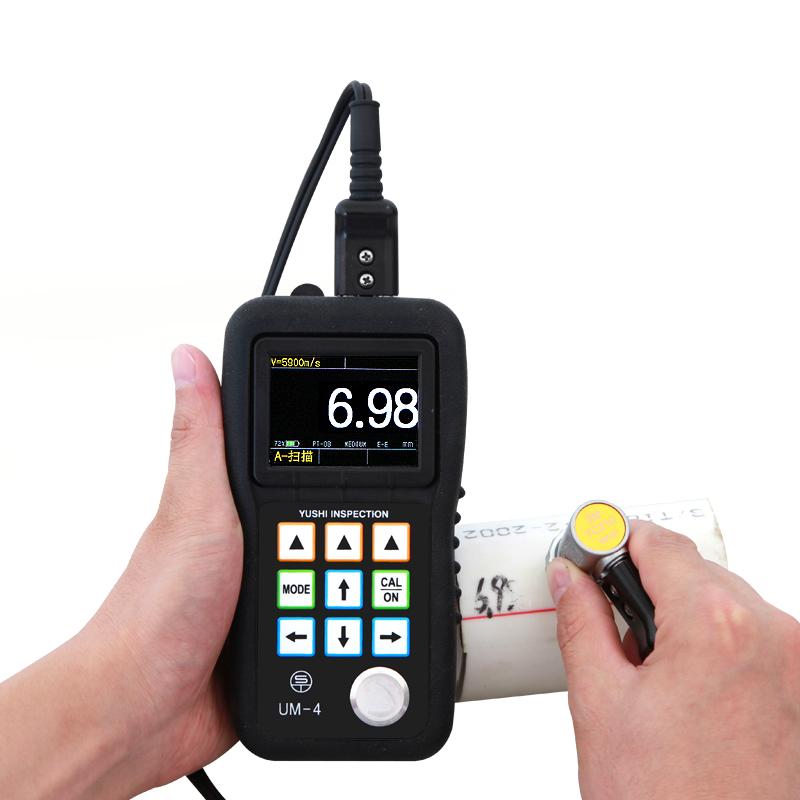

YUSHINDT UM-4D Penetrating coating Ultrasonic Thickness Gauge Picture

Applications: It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass and other special materials; It is also possible to measure coated materials such as paint layers on the surface of the workpiece; It is also widely used in manufacturing industry, metal processing industry, chemical industry, commodity inspection industry and other testing fields.



Brief Description: Penetrating type, which includes all the characteristics of UM-4 and adds a penetrating coating function to measure the thickness of coated workpieces

FAQ
QHow thick can this UM-4D Ultrasonic Thickness Gauge be measured?
A UM-4D Ultrasonic Thickness Gauge can detect sample thickness up to 0.7mm
