Defelsko PosiTest AT-M 50mm Pull adhesion instrument kit size 50mm Manual

ATM50A

Adhesion Tester (Pull Type)

Manual model, range 50~500psi, kit size 50mm, high accuracy, no external power supply, easy to carry, accurate measurement.

Introduction

Defelsko PosiTest AT-M 50mmThe pull-off adhesion Tester is a manual pull-off adhesion Tester that uses a 50mm size jack and is suitable for measuring adhesion coatings with lower adhesion such as wood paints, concrete coatings, and plastic paints.The PosiTest AT-M 50mm Pull-Off Adhesion Meter has a measurable range of 50~500psi, which is narrower than the measurement range of the 20mm top model, and is a digital display test result with a display resolution of 0.01MPa. The adhesIon Meter is equipped with a good hose for measuring difficult areas and has a USB interface for connecting to a PC.

Product Structure

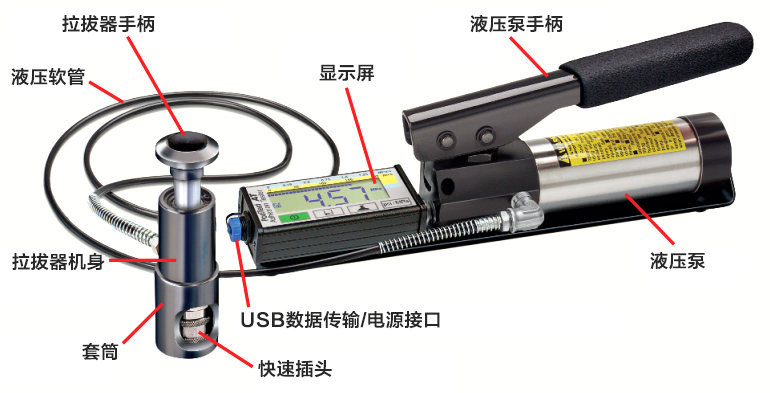

The structural components of the Defelsko PosiTest AT-M 50mm pull-off adhesion Tester are: 1.5 m good hose, USB port, pull-out head, manual hydraulic pump, quick sleeve, LCD display.

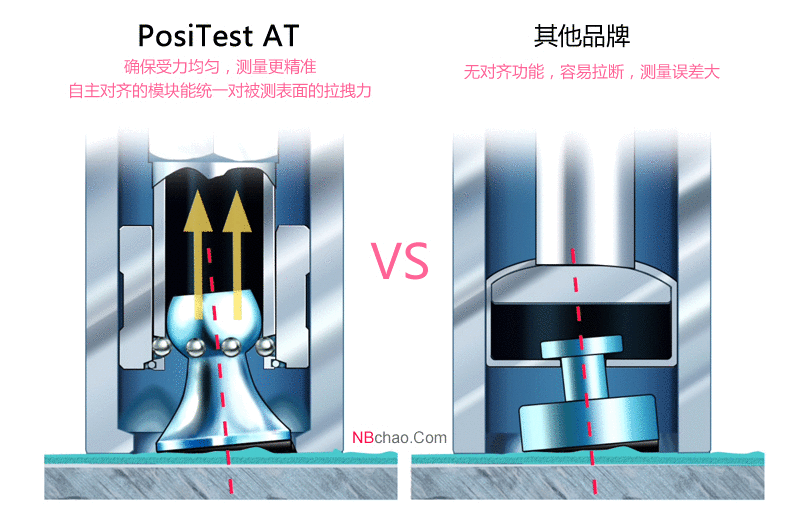

Among them, the role of the quick sleeve is:The PosiTest A Adhesion Tester uses the bearing balls inside the sleeve to quickly lock the tip of the spindle to ensure accurate positioning, resulting in a balanced pull-out force.

Meets standards

The PosiTest AT-M 50mm Pull-Off Adhesion Meter complies with ATSM D4541 and ISO 4642 standards.

Principle

The PosiTest AT-M 50mm Pull-Off Adhesion Meter is the amount of tension required to separate a coating per unit area from a collective, expressed in MPa or Psi.

Features

1. Durable

●It has the advantages of waterproof, dustproof and impact-proof.

●Good hydraulic pump is not afraid of any Operating Environment.

● With a sturdy carrying case.

2. Accurate

●The pressure system of the PosiTest AT-M 20mm Pull-Off Adhesion Meter is calibrated with a ±1% accuracy by a force cell from the Velocity NIST.

●High-grade industrial pressure sensors ensure continuous high accuracy.

● Self-aligning positioning jacks for equally accurate measurements on smooth or rough surfaces.

●Pull-off adhesion Tester complies with ASTM D4541, ISO 4624 and other test standards.

3. Simple operation

● Portable handheldPull-off adhesion Tester does not require external power supply, and is suitable for use in various occasions such as laboratories and workshops.

● Large LCD display, easy to read.

●Standard configuration can meet general testing needs.

●The top sub-model can be selected by pressing a button, changing the unit of measurement or storing the reading.

● There is no need to change the table, the pull-off adhesIon Meter will automatically calculate the pressure value according to the size of the jack.

●The top is of low value and can be stored for a long time as an archive, eliminating the trouble of cleaning caused by repeated use.

4. Diverse functions

● The built-in memory can store up to 200 data, including tensile value, pressurization rate, test time, and top size.

● PosiSoft software is optional.

● LCD LCD display, Psi or MPa units can be selected.

●Available in 10, 14, 20 and 50 mm jacks to meet the testing needs of different adhesion ranges.

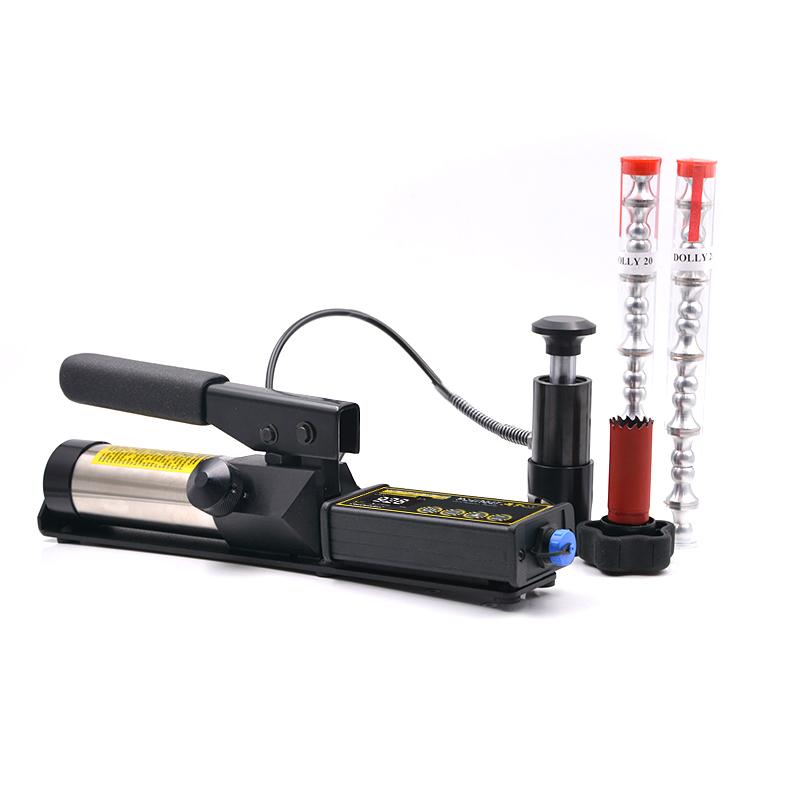

Actual picture of the product

PosiTest AT-M 50mm and 20mm vs

Packing list：Host x1, 50mm aluminum alloy kit x8, sanding pad x1, edge trimmer x1, adhesive (including rubber plate and glue stick) x1, cotton swab x1, USB data x1, operation manual x1, verification certificate x1, demonstration disc x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
