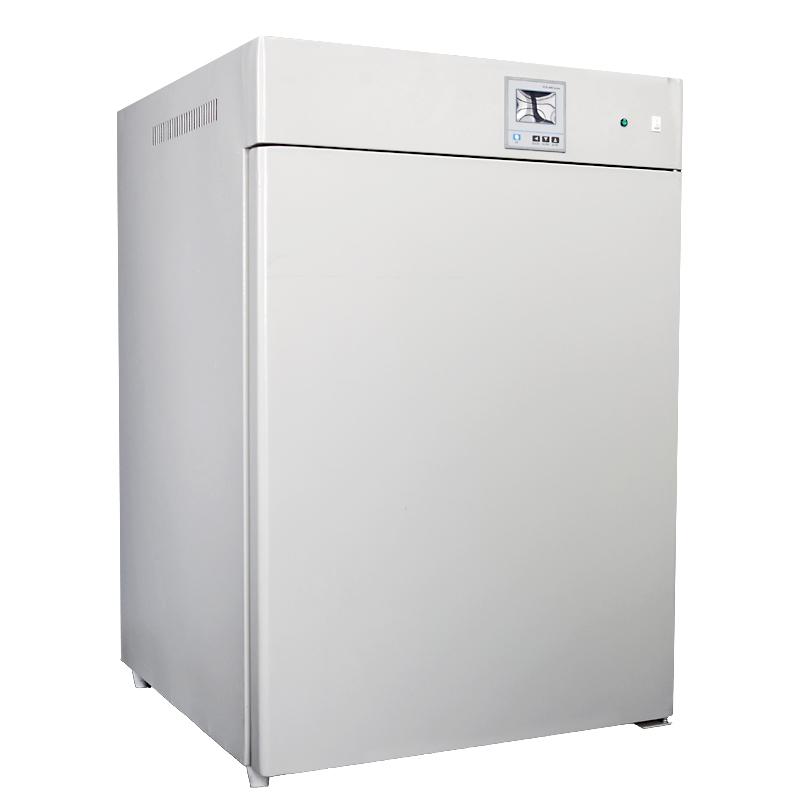

JIECHENG GHP-9050 Water-Jacketed Incubator
GHP-9050
JieCheng GHP-9050 Waterproof IncubatorSPEC
JieCheng GHP-9050 Waterproof IncubatorDetails
JieCheng GHP-9050 Waterproof IncubatorPacking list
- SKU
- NB011889
- Display mode
- liquid crystal display
- Heating mode
- water jacket
- Power supply Voltage
- AC 220V 50Hz
- Temperature range
- RT+5~65℃
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±0.1℃
- Environmental temperature
- +5~40℃
- Input Power
- 450W
- Liner size
- 350*350*400mm
- Dimension
- 480*480*660mm
- Shelf (standard)
- 2pcs
- Timer Range
- 1~9999min
- Door opening method
- Open the door manually
- Viewing Window
- Double-decked door structure; whole tempered Glass door inside
- Volume
- 50L
Jiecheng GHP-9050 water-isolated constant temperature Incubator adopts water-jacket heating method, 50L volume, room temperature +5~65°C temperature control range, with 2 carrier carriers (standard), 450W input power.
Features
★ Streamlined luxury machine shape with aesthetic design concept, electrostatic spraying box, double-layer door structure
★ It is made of mirror stainless steel argon arc welding, and the box is made of good steel plate, which is beautiful and novel. Mirrored stainless steel lining, the instrument will never be corroded.
★The large LCD screen displays the set parameters and measured parameters
★ High-performance thermostatic function to avoid evaporation and drying of samples
★ The automatic water level identification system can realize the sound and light alarm of low water level.
★ The box has its own water inlet and outlet, which can be connected to water pipes.
★ This product has the advantages of long-term heat preservation and uniform temperature after power failure
★ The new synthetic silicon sealing strip is adopted, which can operate at high temperature for a long time, has a long service life and is easy to replace.
★ The double-layer door structure is adopted, and a tempered glass door inside can effectively prevent the temperature from fluctuating when the sample is opened to observe.
★ The hot air circulation system is composed of a fan that can operate continuously at high temperatures and a suitable air duct to improve the temperature uniformity in the working room.
★ The cargo carrier in the box can be adjusted freely
Introduction to controls
★ The microcomputer P.I.D. temperature controller with over-temperature deviation protection and digital display is adopted, with timing function, and the temperature control is accurate and reliable.
★ The upgraded version of the sound and light alarm environment scanning microcomputer chip has more powerful data processing functions
★ Functions such as over-temperature alarm, timed shutdown, call recovery, parameter encryption, temperature correction and so on.
★ With the function of power-off recovery, the equipment can automatically resume operation according to the original program after the external power supply suddenly loses power and the power comes again
Security settings
★ Thoughtful safety protection design realizes triple safety protection for personnel, samples and equipment
★ Safety functions: sensor fault alarm, over-temperature alarm, independent over-rise preventer, independent over-temperature protector, over-current trip protection, etc

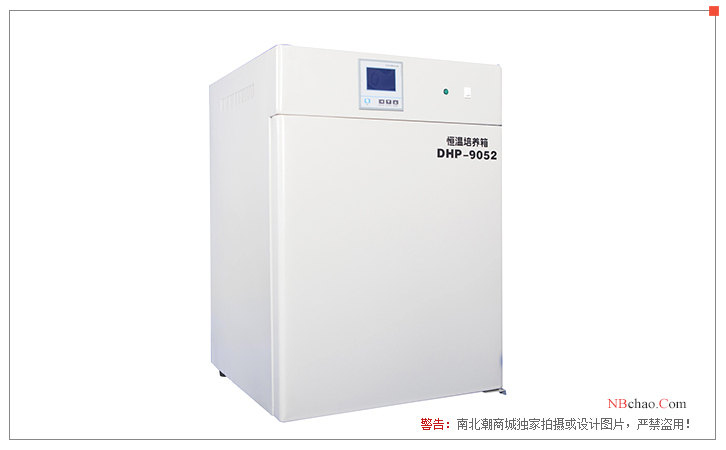

Display diagram
