Defelsko PosiTector 6000 F45S3 Film Thickness Gauge 45 ° micro probe

SE
Advanced version of magnetic Induction Film Thickness Gauge, split 45 ° micro probe, thickness measurement range 0~1150 μm, error +/- 3%, 2.8 inch touch screen operation, suitable for measurement of small parts, hard-to-reach areas or close to the edge.
$1756.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 F45S3 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 F45S3 Coating Thickness GaugeDetails

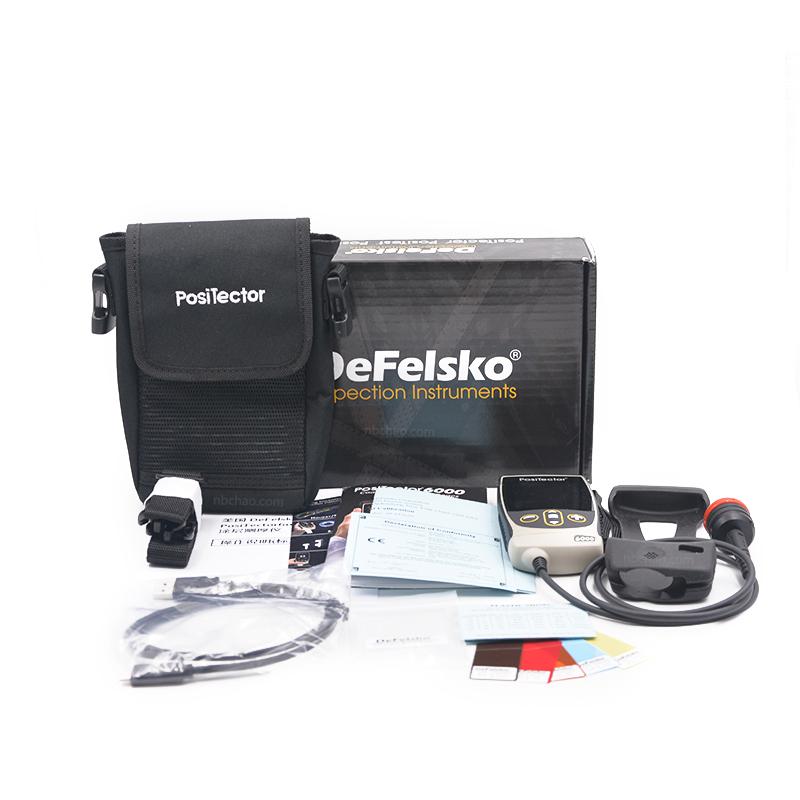

Defelsko PosiTector 6000 F45S3 Coating Thickness GaugePacking list

SKU
NB001192
Measurement principle
Magnetic Induction
Measurement range
0~1150μm
margin of error
±3%
Resolution
0.1μm
probe

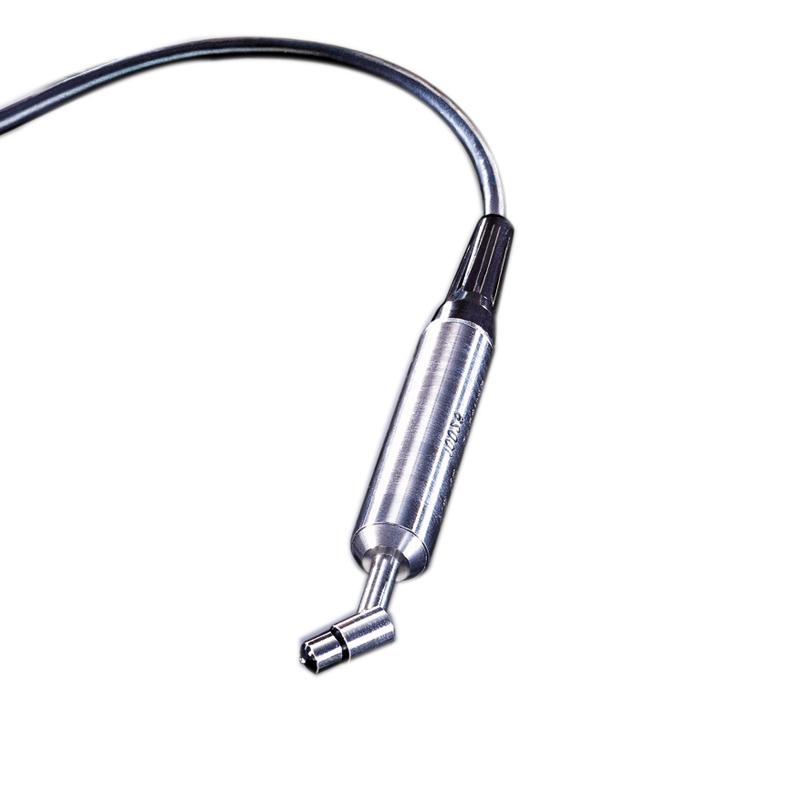

F45S3 Probe (45 ° Micro)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
Yes.

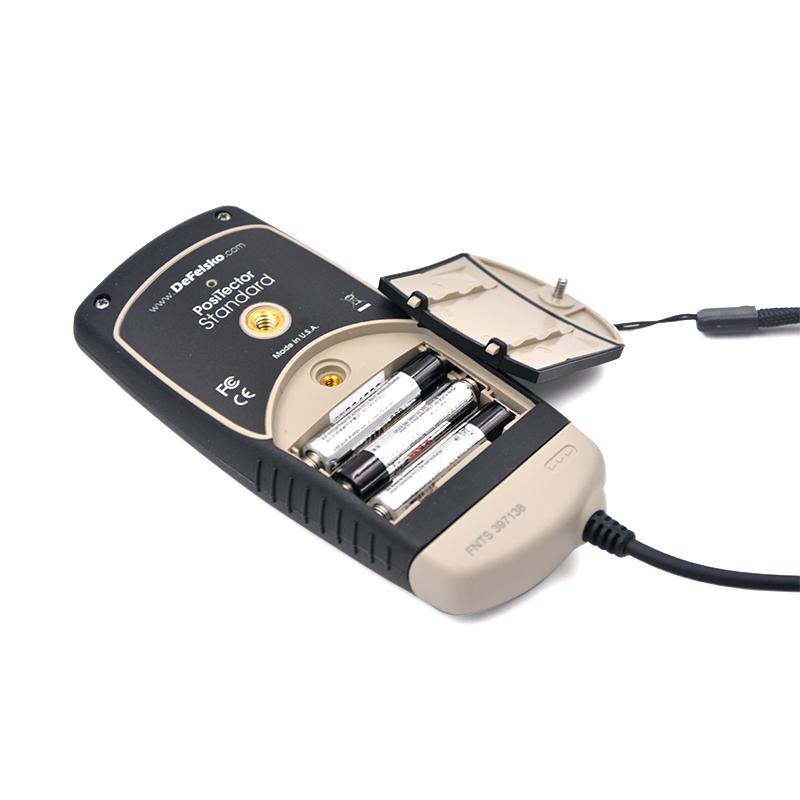

Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes, Bluetooth communication.
Language
Chinese, English

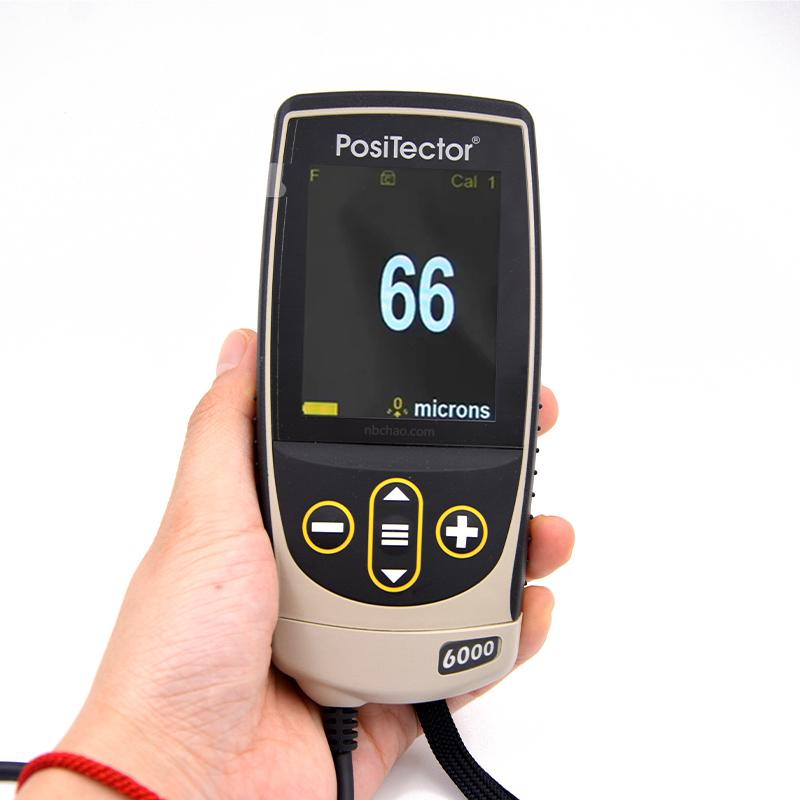

Display screen
2.8-Inch color touchscreen
Interface
USB、Bluetooth
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
250000 Measured values, 1000 groups
Test environment
Ferrous metal substrate nonmagnetic coating environment
Defelsko calibrated standard
STDS2、STDA2
screen image saving
One hundred.
Protection level
IP65
Measurement speed
More than 180 readings per minute
PosiTector 6000 F45S3
Coating Thickness Gauge
Advanced version of magnetic Induction Film Thickness Gauge, split 45 ° micro probe, thickness measurement range 0~1150 μm, error +/- 3%, 2.8 inch touch screen operation, suitable for measurement of small parts, hard-to-reach areas or close to the edge.
Defelsko PosiTector 6000 F45S3 Film Thickness Gauge 45 ° micro probe Picture

Coating Thickness Gauge selector

Introduction

Defelsko paint Film Thickness GaugePosiTector 6000 F45S3It is the Defelsko Positector 6000 series advanced magnetic Thickness Gauge, with a 45° miniature anti-wear probe, designed to measure non-magnetic coatings on ferrous metal substrates in confined environmental areas, the gauge can store up to 100,000 reads natively, and can also be connected to a computer via a USB interface for larger data storage, and can also be connected to a printer to print data.The PosiTector 6000 F45S3 Coating Thickness Gauge measures quickly and is backlit and can be used in dark or noisy environments.

New features have been added to the new version of the Defelsko PosiTector console in the United States

Defelsko Devs high brand introduction

Defelsko PosiTector 6000 F45S3 Paint Film Thickness Gauge Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Advantages of the protective features of the Defelsko PosiTector 6000 F45S3 Paint Film Thickness Gauge

Other features of the Defelsko PosiTector 6000 F45S3 Paint Film Thickness Gauge

Typical application areas of the Defelsko PosiTector 6000 F45S3 paint Film Thickness Gauge

Why Choose Nanbeichao to Buy the Defelsko PosiTector 6000 F45S3 Paint Film Thickness Gauge?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI want to measure the surface coating thickness of ferrous metals in narrow areas. Is there any suitable instrument recommended?
A Recommend the Defelsko PosiTector 6000 F45S3, which is equipped with a 45 ° miniature Probe, specially designed for narrow space measurement, can accurately measure the nonmagnetic coating thickness on ferrous metals, suitable for the application scenario you mentioned.
QIs this thickness gauge convenient to use in industrial sites?
A It uses the principle of magnetic Induction, fast measurement speed, can measure more than 180 readings per minute, also with backlight display and IP65 Protection Rating, suitable for noisy, dark industrial environment, can greatly improve the detection efficiency.
QI need to record a large amount of measurement data and export the analysis.
A Yes! PosiTector 6000 F45S3 can store 250,000 sets of data, support USB and Bluetooth connection to the computer, supporting PosiSoft software can easily export and analyze data, and can directly print reports connected to the printer, which is very practical.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QWhat is the smallest part that the Defelsko film thickness gauge F45S3 can test?
A Hello, the diameter of the contact surface of the part should be greater than 5mm.
QAre all Coating thickness gauges available for testing in the ISO 2178 standard?
A Not necessarily, but this PosiTector 6000 F45S3 Coating thickness gauge can be considered.
