JIECHENG MGC-1000HP Artificial climate Incubator Volume 1000L

MGC-1000HP

Artificial climate Incubator

Introduction

Jiecheng MGC-1000HP artificial climate Incubator adopts international brand compressor and circulating fan, which has high efficiency and low energy consumption, which not only promotes energy saving, but also has a long service life, which can reduce noise to a minimum, and reduce the cooling time by more than 40% compared with traditional cryogenic equipment.

JC-1000HP artificial climate Incubator is widely used in microbial tissue cell culture, seed germination, seedling experiments, plant cultivation, insect and small animal feeding. It can accurately simulate different environmental and climatic conditions.

Features and advantages

1. The inner tank is made of 304 stainless steel, which does not rust。

2. Intelligent controller, good temperature control effect。

3. LCD display on one screen, temperature, light level, time and other parameters。

4. Streamlined luxury machine shape with aesthetic design concept, electrostatic spraying box, double-layer door structure。

5. It is made of mirror stainless steel argon arc welding, and the box is made of good steel plate, which is beautiful and novel. Mirrored stainless steel lining.

6. The large LCD digital display displays the set parameters and measured parameters。

7. High-performance thermostatic function to avoid evaporation and drying of samples。

8. Built-in lighting system, ultraviolet germicidal lamp。

9. The compressor adopts automatic control, the temperature control range is not affected by room temperature, 4~60 degrees can be arbitrarily controllable, and the compressor can be automatically frosted (if the frost is not carried out, the frost will become thicker and thicker, and the fin evaporator will be covered with frost and the air duct will be blocked, resulting in the cold air can not circulate and the refrigeration effect will be reduced).

10. International brand compressors and circulating fans, unique air duct system structure, to ensure that the wind inside the studio is evenly distributed. Won't blow into plant seedlings.

11. The new synthetic silicon sealing strip is adopted, which can operate at high temperature for a long time, has a long service life and is easy to replace.

12. The hot air circulation system is composed of a fan that can operate continuously at high temperatures and a suitable air duct to improve the temperature uniformity in the working room.

13. Partition upgrade (the partition is made of stainless steel plate punching, which can solve the unevenness of the previous grid when placing items)。

14. Partition upgrade: (first use many partitions welded in the inner tank, put the partition on the box drawer type pull-out)。

15. The cargo carrier in the box can be adjusted freely。

Introduction to the control device

★ Adopt liquid crystal display controller, multi-segment programming; It has the functions of temperature, light and timing, and the temperature control is accurate and reliable.

★ Working time: 0~99 cycles, up to 24 Operating Time, each time setting range: 0~99 hours; When the cycle is set to 0, it is in continuous working state。

★ The temperature can be set day and night depending on the presence or absence of light.

★ The upgraded version of the sound and light alarm environment scanning microcomputer chip has more powerful data processing functions。

★ Functions such as over-temperature alarm, timed shutdown, call recovery, parameter encryption, temperature correction and so on.

★ It has the function of compressor starting delay, which effectively guarantees the service life of the compressor; And with automatic cream function.

★ With the function of power-off recovery, the equipment can automatically resume operation according to the original program after the external power supply suddenly loses power and the power comes again。

Security settings

★ Thoughtful safety protection design realizes triple safety protection for personnel, samples and equipment。

★ Safety functions: sensor fault alarm, over-temperature alarm, independent over-rise preventer, independent over-temperature protector, over-current trip protection, etc。

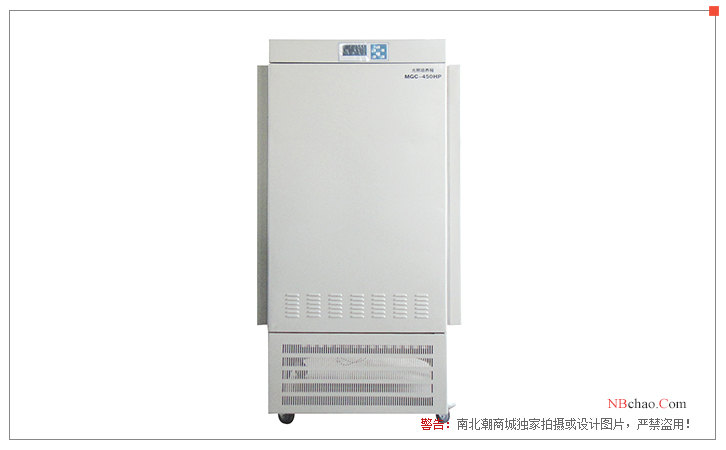

Display diagram

Packing list：integrated host x1, power cord x1, manual x1, certificate x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
