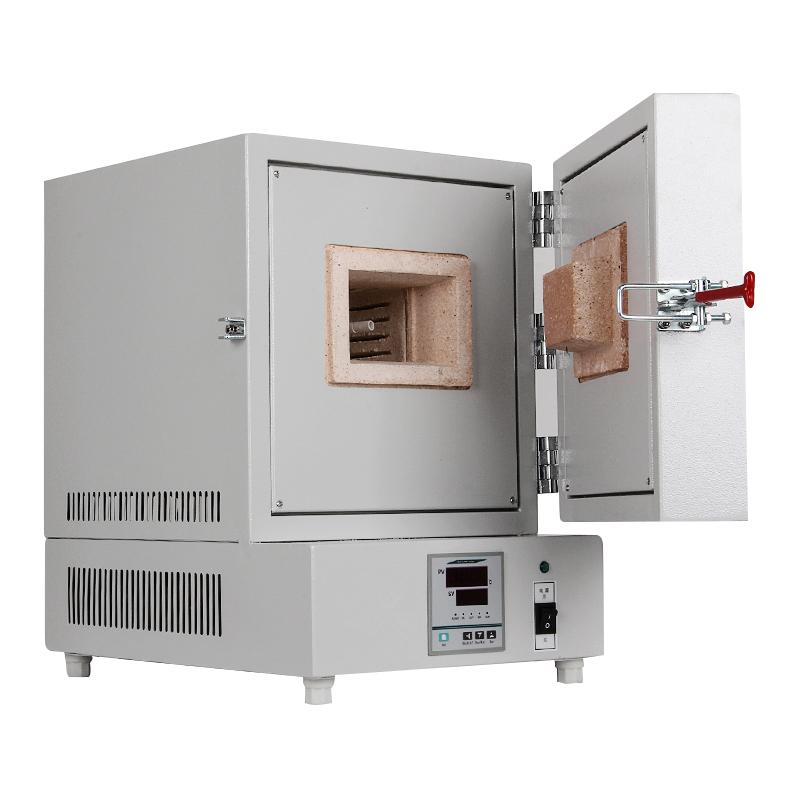

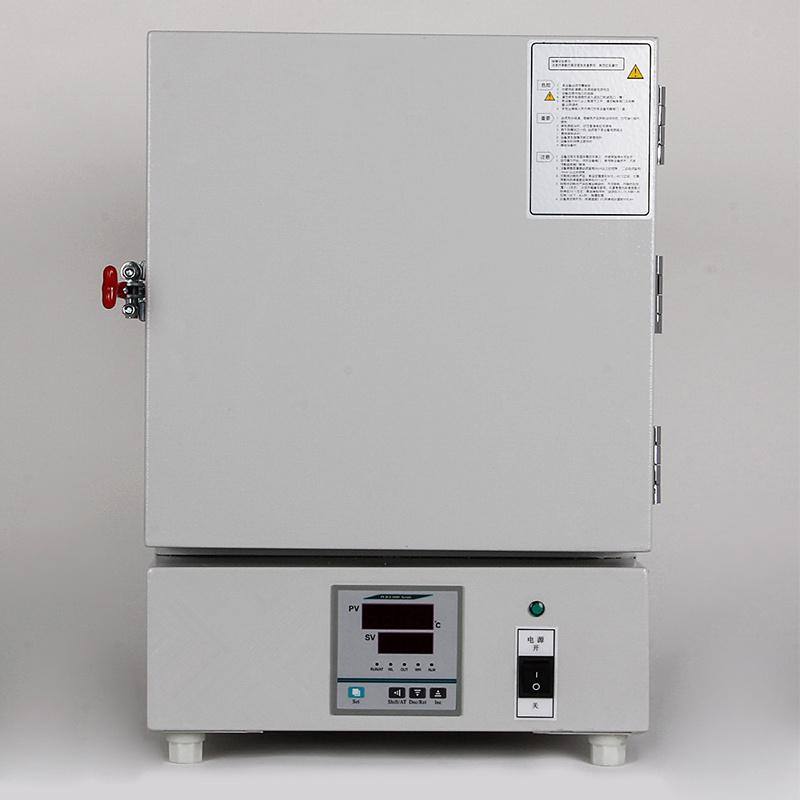

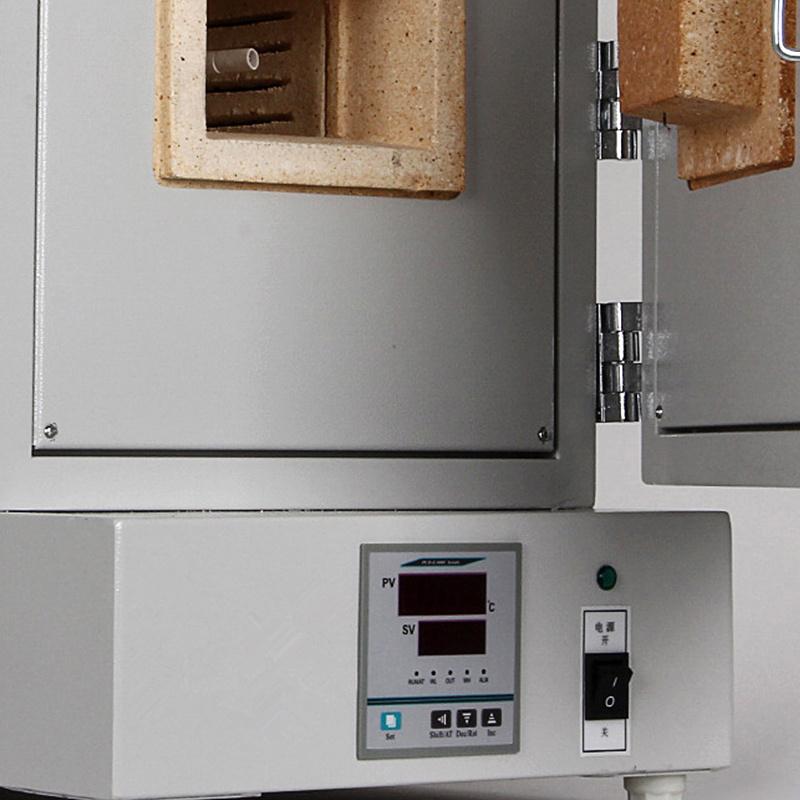

JIECHENG SX2-4-12AX Laboratory Resistance Furnace volume 12L Temperature control: room temperature + 50~1200 ℃

SX2-4-12AX

Box Furnace

Introduction

Ceramic fiber muffle furnace is a periodic operation electric furnace, which can be used for chemical analysis, physical determination and heating of general small steel parts in the laboratories of industrial and mining enterprises and scientific research units. JC's SX2-4-12AX laboratory Resistance Furnace is made of ceramic fiber liner with a volume of 12L and a temperature control range of room temperature +50~1200°C.

Features

1. The inner tank is made of ceramic fiber, the equipment is lightweight, and the insulation effect is good.

2. Intelligent LCD controller, good temperature control effect; A large number of exports to European countries

3. LCD one-screen display, temperature, time and other parameters

4.Streamlined luxury machine shape with aesthetic design concept, electrostatic spraying box

5.The furnace body is made of ceramic fiber material, which has the characteristics of good thermal insulation performance and light weight, and the insulation layer is insulated by ceramic fiber cotton, which greatly improves the heating rate, reduces the heat consumption, has good thermal insulation effect, and has low shell temperature.

6.The large LED LCD screen displays the set parameters and measured parameters

7.The heating temperature of the ceramic fiber muffle furnace is uniform, the heating speed is fast, the energy saving performance is good, and the dust and slag will not affect the effect of the test.

Introduction to controls

★ The microcomputer P.I.D. temperature controller with over-temperature deviation protection and digital display is adopted, with timing function, and the temperature control is accurate and reliable.

★ The upgraded version of the sound and light alarm environment scanning microcomputer chip has more powerful data processing functions

★ Functions such as over-temperature alarm, timed shutdown, call recovery, parameter encryption, temperature correction and so on.

★ With the function of power-off recovery, the equipment can automatically resume operation according to the original program after the external power supply suddenly loses power and the power comes again

Security settings

★ Thoughtful safety protection design realizes triple safety protection for personnel, samples and equipment

★ Safety functions: sensor fault alarm, over-temperature alarm, independent over-rise preventer, independent over-temperature protector, over-current trip protection, etc

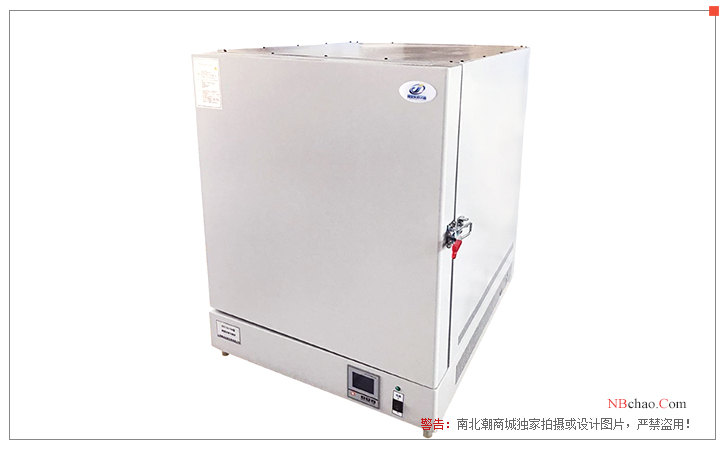

Display diagram

Packing list：integrated host x1, power cord x1, manual x1, certificate x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
