Defelsko PosiTector 6000 FT3 Coating Thickness Gauge

SE
Advanced version of magnetic Induction coating thickness measurement, integrated probe, thickness measurement range 0~6000 μm, error range +/- 3%, can be transmitted through Bluetooth data, color touch screen, with calibrated certificate, suitable for thick coatings such as epoxy resin, rubber, cement, expansion fire-proof coatings, etc.
$1456.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 FT3 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 FT3 Coating Thickness GaugeDetails

Defelsko PosiTector 6000 FT3 Coating Thickness GaugePacking list

SKU
NB001196
Measurement principle
Magnetic Induction
Measurement range
0~6000μm
margin of error
±3%
Resolution
0.1μm
probe
FT3 probe (general thick coating)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
Yes.
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB、Bluetooth
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
250000 Measured values, 1000 groups
Test environment
Ferrous metal substrate nonmagnetic coating environment
Defelsko calibrated standard
STDP1
screen image saving
One hundred.
Protection level
IP65
Measurement speed
More than 180 readings per minute
PosiTector 6000 FT3
Coating Thickness Gauge
Advanced version of magnetic Induction coating thickness measurement, integrated probe, thickness measurement range 0~6000 μm, error range +/- 3%, can be transmitted through Bluetooth data, color touch screen, with calibrated certificate, suitable for thick coatings such as epoxy resin, rubber, cement, expansion fire-proof coatings, etc.

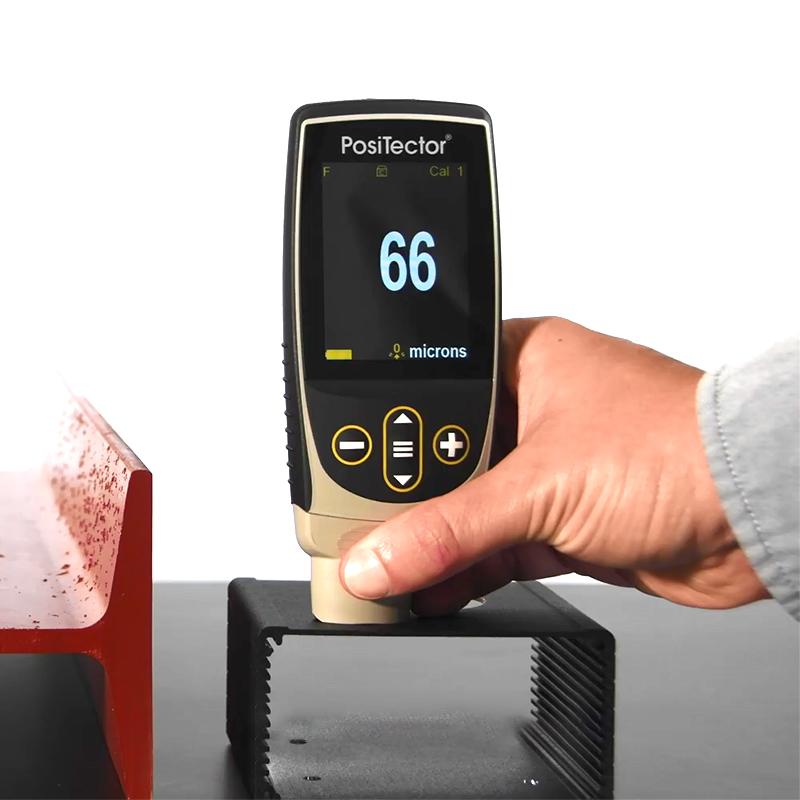

Defelsko PosiTector 6000 FT3 Coating Thickness Gauge Picture

Coating Thickness Gauge selector

Introduction

Defelsko PosiTector 6000 FT3The coating Thickness Gauge is used to measure the thickness of the coating of non-magnetic coatings, which can measure the film thickness up to 6mm, using the principle of electromagnetic induction, and is suitable for the thickness measurement of ferrous metal substrate cladding.The PosiTector 6000 FT3 Coating Thickness Gauge has a built-in probe, a one-piece construction for easy one-handed operation, an IP65 rated enclosure that is resistant to solvents, acids, oils, water, dust and rain, screenshot capability, backlit and inverted display, and can be used in multiple occasions.

New features have been added to the new version of the Defelsko PosiTector console in the United States

Defelsko Devs high brand introduction

Defelsko PosiTector 6000 FT3 Coating Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Protective benefits of the Defelsko PosiTector 6000 FT3 Coating Thickness Gauge

Additional features of the Defelsko PosiTector 6000 FT3 Coating Thickness Gauge

Typical application areas for the Defelsko PosiTector 6000 FT3 Coating Thickness Gauge

Why choose the Defelsko PosiTector 6000 FT3 Coating Thickness Gauge from the United States?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI want to measure thicker coatings, such as epoxy flooring, which instrument should I choose?
A Recommended PosiTector 6000 FT3, it is designed for thick coatings, the maximum can measure 6mm, using electromagnetic induction principle, suitable for epoxy paint on iron substrates and other nonmagnetic coating measurement, IP65 Protection Rating can also deal with the construction site oil, dust environment.
QIn steel structure anticorrosion engineering, what instrument is used to measure Coating thickness accurately?
A PosiTector 6000 FT3 is suitable for steel structure anti-corrosion testing, it meets ISO 2178, ASTM and other international standards, accuracy +/- 3%, can measure more than 180 readings per minute, high efficiency, can also store 250,000 data, convenient mass traceability.
QI want to measure thick coatings, such as epoxy flooring paint or thick film anti-corrosion paint, which instrument should I choose?
A The Defelsko PosiTector 6000 FT3 is recommended. It is specially designed for thick coatings and can measure up to 6mm. Using the principle of electromagnetic induction, the measurement of nonmagnetic coatings on iron substrates is very accurate, with an error of only +/- 3%. The integrated structure is easy to operate with one hand, and the IP65 Protection Rating can also cope with harsh environments such as oil pollution and solvents on site.
QIn the steel structure anticorrosion engineering site, the need for rapid measurement of thick coatings, what is the appropriate thickness gauge?
A The PosiTector 6000 FT3 is suitable for steel construction sites and can measure more than 180 points per minute with high efficiency. Its FT3 Probe is optimized for thick coatings, and the color Touchscreen visually displays measurement statistics and saves screenshots. IP65 protection ensures dust and rain resistance outdoors, and oil and solvent resistance are just right for the construction site environment.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QCan this Coating thickness gauge be applied to ASTMB499?
A OK
QWhat type of probe is a thickness gauge?
A Hello, this thickness gauge is a one-piece probe type.
QIs the probe of this thickness gauge an integrated probe?
A Hello, yes.
