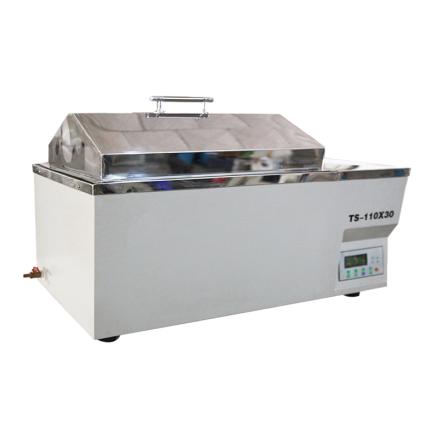

Brand：JieCheng
Model：TS-110XS
Name：Reciprocating + rotary Water Bath thermostatic Shaker
Specifications
| Temperature range | RT+~99.9℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±0.1℃ |
| Oscillation mode | Rotary + reciprocating |
| Oscillation Frequency | 0~200rpm |
| Speed Accuracy | ±1rpm |
| Oscillation Stroke | Φ20mm |
| Maximum configuration | 100mL*24 or 250mL*15 or 500mL*11 or 1L*6 |
| Pallet size | 310*410mm |
| Number of pallets | 1pcs |
| Timer Range | 0~999h |
| Dimension | 750*460*500mm |
| Net Weight | 45kg |
| Input Power | 1800W |
| Power supply Voltage | AC 220V 50Hz |
| Display mode | LCD one-screen display |
| Standard configuration | Multifunctional fixture |
| Environmental temperature | 5~40℃ |
| Door opening method | Open the door manually |
Packing list
integrated host x1, power cord x1, manual x1, certificate x1, warranty card x1
After-sales instructions
Warranty days: 365 days
