RDS13 #3/8 "Proofing rod WFT 30μm Length 400mm

SE
Wire-wound, wet film thickness 29.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.33mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 13# 3/8" Applicator rod 3/8 "SPEC

RDS 13# 3/8" Applicator rod 3/8 "Details

RDS 13# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000012
Production process
wire-wound
WFT
29.7μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.33mm
13# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 29.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.33mm.

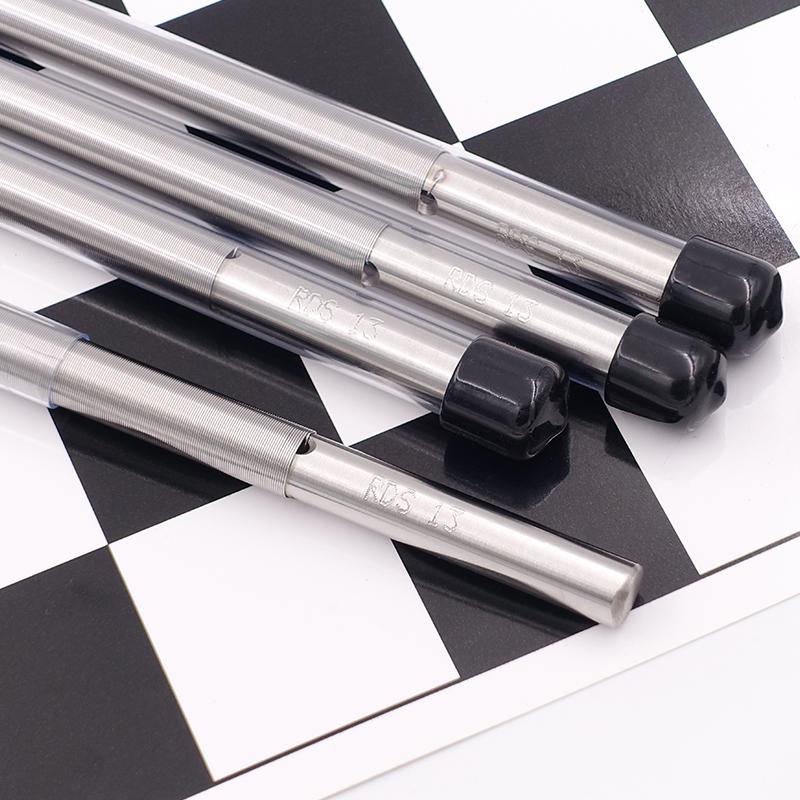

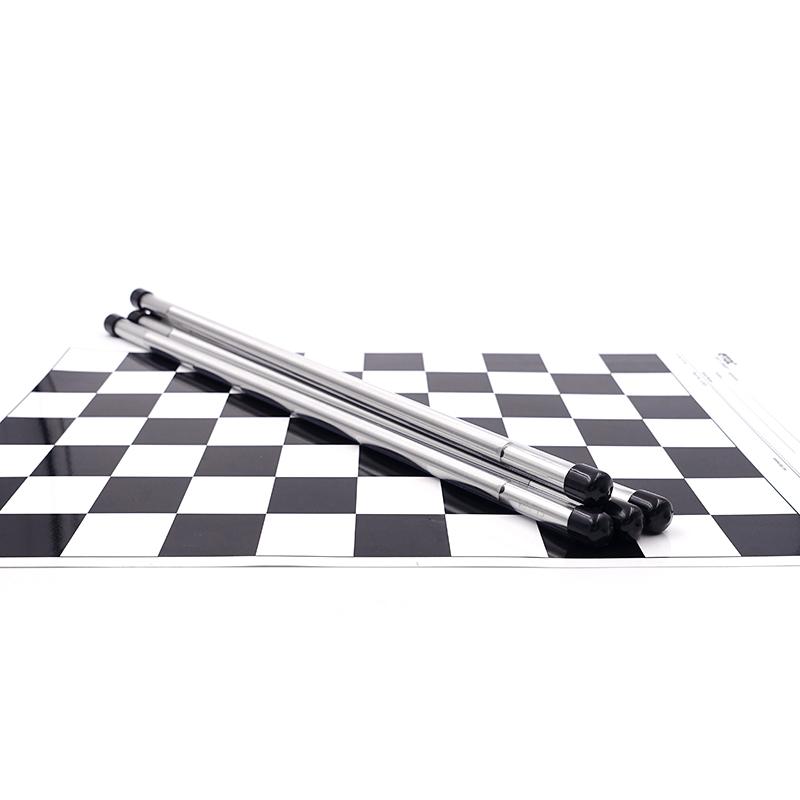

RDS13 #3/8 "Proofing rod WFT 30μm Length 400mm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

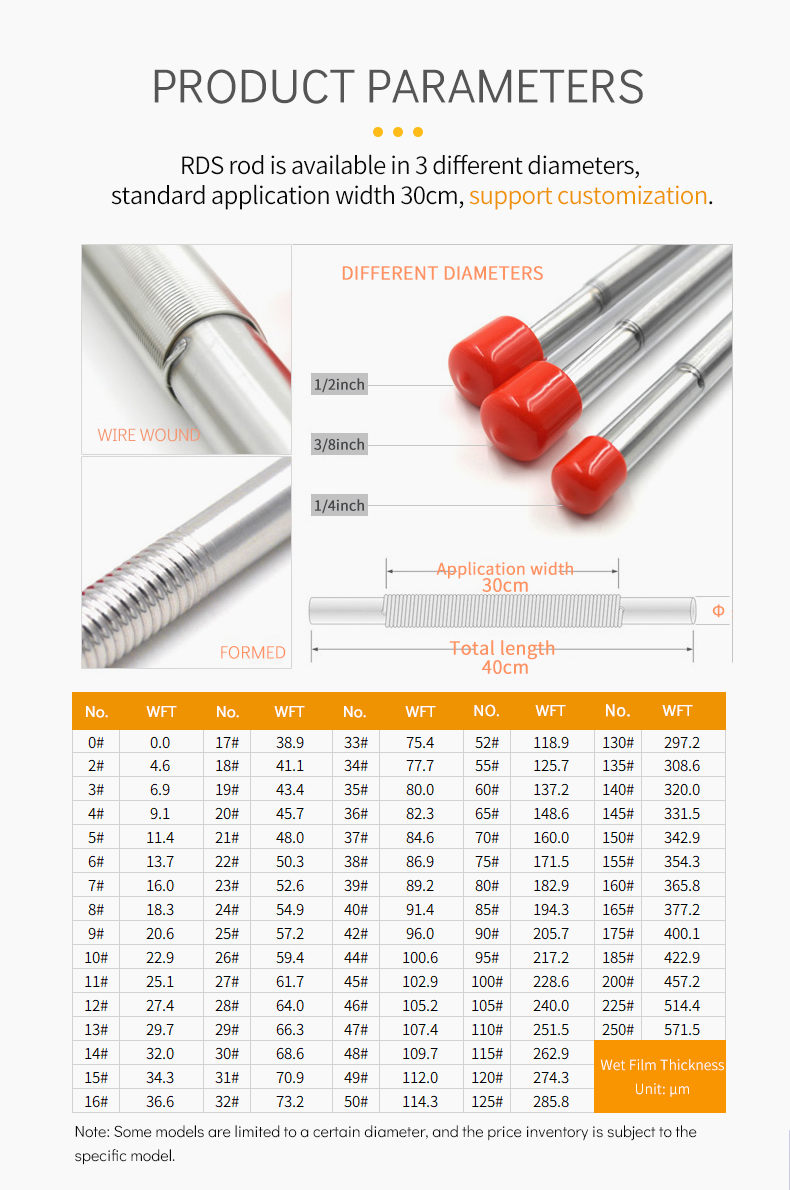

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QIs the number 13 stick 30a?
A Yes, RDS13 wire rod scraping wet film thickness is 30 microns.
QI want to make a carbon fiber film, about 30 microns of carbon fiber
A Wet film thickness, that can be considered RDS 13 #stick
QFor the film used for fluorescence testing, PVA is mixed with SiO2/QDs solution. Can it be scraped with a wire rod?
A OK
QDo you have any suggestions for imported wire rods with 30μm wet film and 400mm length?
A Hello, yes, American RDS13 stick.
QHow thick can the RDS13 #Mayer-Rod be scraped?
A Hello, 29.7 micron wet film thickness.
QWhat specifications are available for the length of the RDS bar?
A Hello, the total length of the RDS rod is 40cm, and the effective Spreader width is 30cm. Each rod number has three different diameters of 9.5mm, 6.35mm, and 12.7mm.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QDo you have the Applicator rods required by the ASTMD4147 standard?
A This 13 #3/8 "Applicator rod will do.
QWhat diameter is the general film rod?
A RDS film rods are divided into 1/4 3/8 and 1/2 inch diameters. 3/8 diameter is usually used in China, that is, 9.4mm. Applicator rods of different diameters have the same effect.
QIs Spreader glue okay?
A Hello, it's OK.
