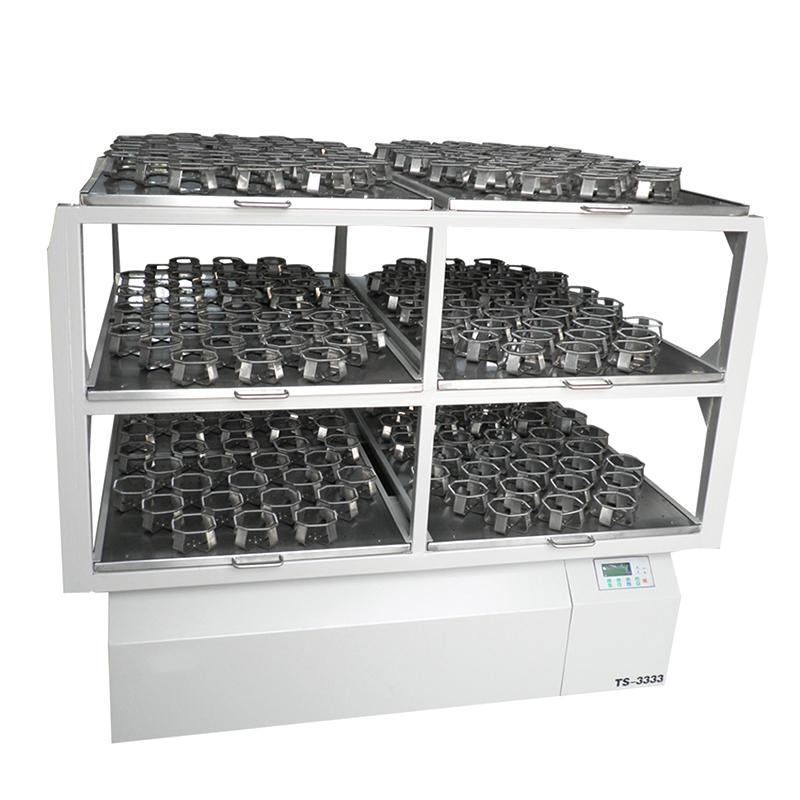

JIECHENG TS-3333 three-layer shaker with a capacity of up to 500mlx288 pcs

JIECHENG TS-3333 three-layer shaker is an open-type oscillating equipment, which is widely used in bacterial fostering, fermentation, hybridization and biochemical reactions in the industry, as well as enzyme and cell tissue research. The TS-3333 three-layer shaker liner is made of 304 stainless steel.
Model：
Certificate
Contact
Details SPEC CAT

JieCheng TS-3333 Three-layer shakerSPEC

JieCheng TS-3333 Three-layer shakerDetails

JieCheng TS-3333 Three-layer shakerPacking list

SKU
NB012009
Temperature range
RT+
Oscillation mode
cyclotron
Oscillation Frequency
60~2800rpm
Speed Accuracy
±1rpm
Oscillation Stroke
Φ35/Φ55
Maximum configuration
500ml*288
Pallet size
325*520mm
Number of pallets
12pcs
Timer Range
0~999h
Dimension
1450*1100*1500mm
Net Weight
340kg
Power supply Voltage
AC 220V 50Hz
Display mode
LCD one-screen display
Standard configuration
500ml*288
Environmental temperature
5~40℃
Door opening method
open type
TS-3333
Three-layer shaker
JIECHENG TS-3333 three-layer shaker with a capacity of up to 500mlx288 pcs Picture

Introduction

The TS-3333 is an open oscillating device. The equipment is suitable for mass production operations with centralized constant temperature and cluster oscillation in the same constant temperature room. This model has a simple structure, strong economy and practicability.

Shake bottle machine products are widely used in bacterial culture, fermentation, hybridization and biochemical reactions, as well as enzyme and cell tissue research in the industry. It has a wide range of important applications in medicine, biology, molecular science, food, environmental protection and other research and application fields.

Features

★ The inner tank is made of 304 stainless steel, which does not rust

★ The speed is stable and the temperature control effect is good; A large number of exports to European countries

★ LCD one-screen display, speed, time and other parameters

★ The three-layer bottle shaker occupies a small area and has a large bottle capacity, which effectively solves the problem of small laboratory and many equipment.

★ Tilted humanized control panel, large screen backlit LCD screen, more good visual effect.

★ The whole machine has a silent design, electrostatic spraying box, and the shape is luxurious and beautiful.

★ AC induction long-life motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance-free.

★ Stainless steel electropolishing trays, springs, flask clamps. The instrument is never in danger of corrosion.

★ Flexible and convenient, pallets, fixtures, can be disassembled.

Introduction to controls

★ Using microcomputer P.I.D. controller with overspeed protection and liquid crystal display, with timing function,

★ The line that controls the speed ensures that the shaker starts slowly and accelerates smoothly, ensuring the safety of the experimental samples and the accurate and reliable speed control.

★ The upgraded version of the sound and light alarm environment scanning microcomputer chip has more powerful data processing functions

★ Overspeed alarm, timed shutdown, call recovery, parameter encryption, speed correction and other functions.

★ The timing is set for up to 500 hours, and the end point will automatically stop oscillating and give an audible and visual alarm

★ With the function of power-off recovery, the equipment can automatically resume operation according to the original program after the external power supply suddenly loses power and the power comes again

Security settings

★ Thoughtful safety protection design realizes triple safety protection for personnel, samples and equipment

★ Safety functions: sensor fault alarm, over-current trip protection, etc

Display diagram

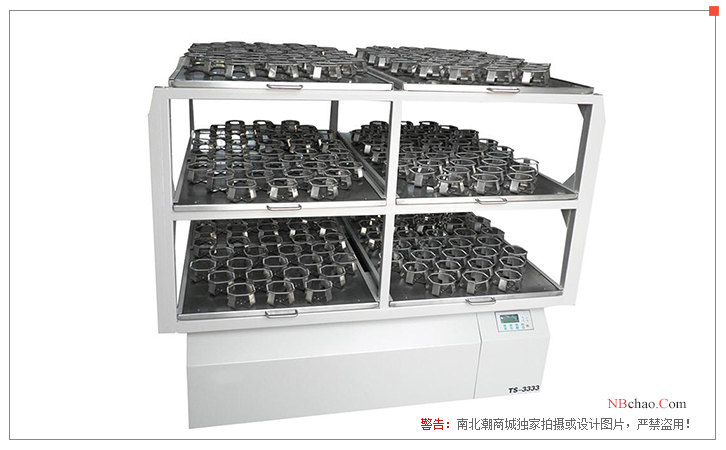

Jie Cheng TS-3333 three-layer bottle shaker display diagram

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
