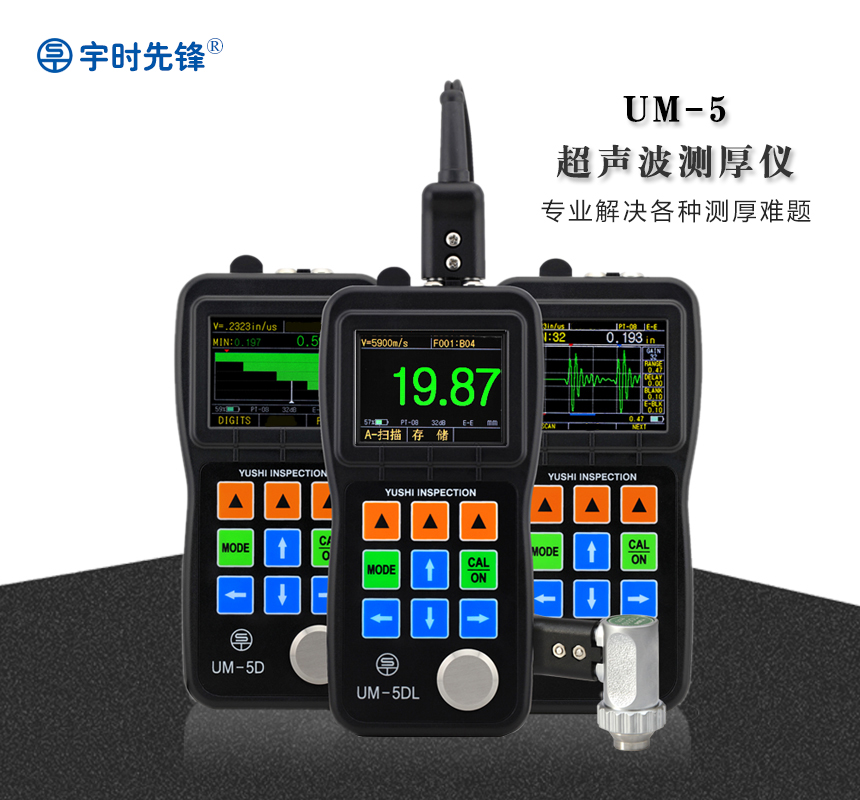

YUSHINDT UM-5 Color Screen A/B Scanning Thickness Gauge, Real-time Color A/B Scanning

YUSHINDT UM-5 Color Screen A/B Scanning Thickness Gauge is a high-end Ultrasonic Thickness Gauge, which is widely used in thickness measurement of metal materials, pipes, Pressure Vessel, plates (steel plates, Aluminum Panels), plastics, iron pipes, PVC pipes, Glass, etc.
Model：
Contact
Details SPEC CAT OI

yushindt UM-5 Ultrasonic Thickness GaugeSPEC

yushindt UM-5 Ultrasonic Thickness GaugeDetails

yushindt UM-5 Ultrasonic Thickness GaugePacking list

SKU
NB012023
Measurement range
0.8~100.0mm
Probe Frequency
5Hz
Probe diameter
Φ10mm
Probe contact temperature
-10~60℃
Lower limit of pipe measurement
Φ20*3mm
measurement error
±0.05mm(<25mm)；±0.2%H (<100mm)；±0.5%H (<100mm)
Display resolution
0.01/0.1mm
unit system
mm/inch
Calibration method
One point calibrated, two point calibrated
Repeatability
±0.05mm
statistical function
Thickness Value Mode, Min/MAX Maximum Capture Mode, Difference/Reduction Rate Mode
Speed of sound
500~9999m/s
Operating language
Chinese, English, Japanese, German and French are available in five languages
Environmental temperature
-10~50℃
Power Supply
Two 1.5V AA batteries
Operating Time
35h
Host size
153*76*37mm
Weight
280G (including battery)
UM-5
Ultrasonic Thickness Gauge

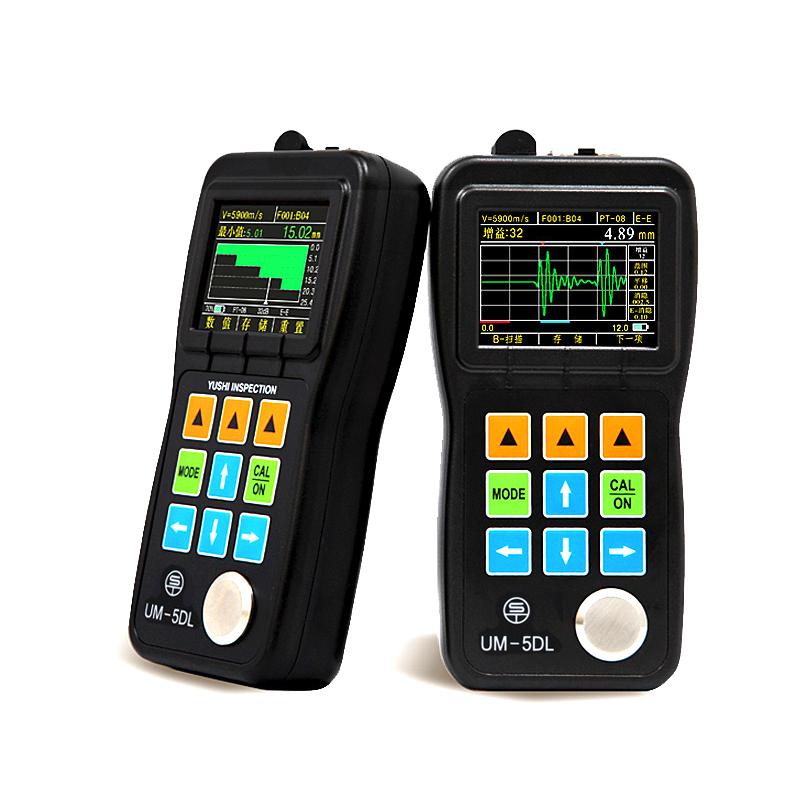

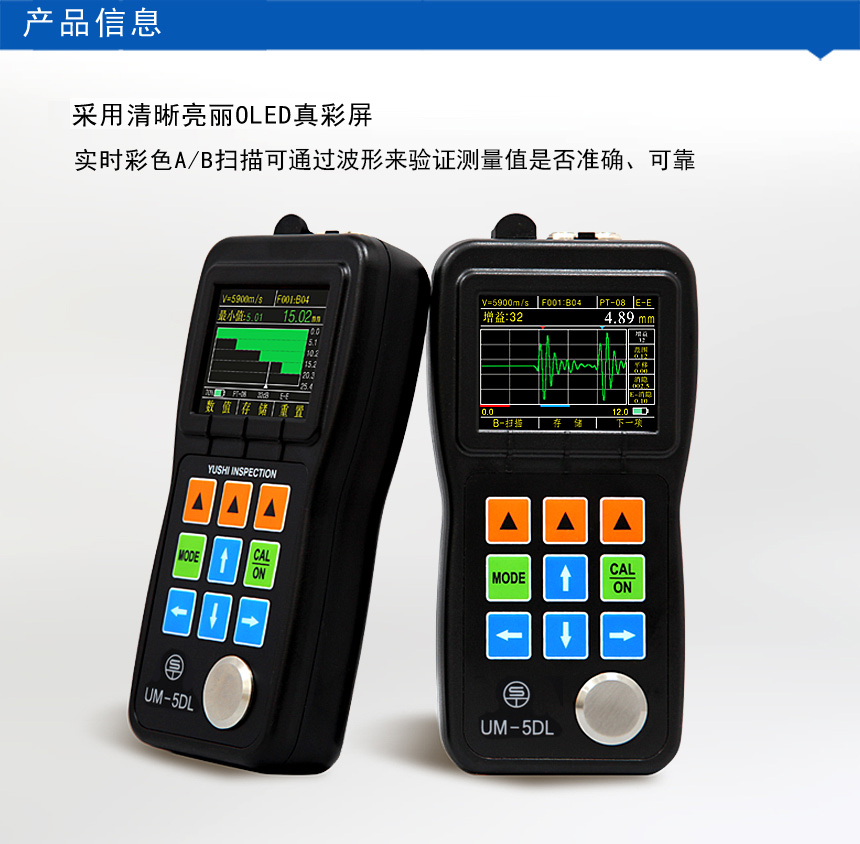

YUSHINDT UM-5 Color Screen A/B Scanning Thickness Gauge, Real-time Color A/B Scanning Picture

The UM-5 color screen A/B scanning Thickness Gauge is a high-end type, which can solve various thickness measurement problems, such as PE/PVC, glass fiber and other materials. It can measure the thickness of metal materials, pipes, pressure vessels, plates (steel plates, aluminum plates), plastics, iron pipes, PVC pipes, glass and other special materials; It is also widely used in manufacturing industry, metal processing industry, chemical industry, commodity inspection industry and other testing fields.

UM-5 Series Probe Models:

Model

PT08

TC510

PT12

PT06

PT04

ZT12

GT12

type

UM-5 standard

UM-5D/
5DL comes as standard

Standard

Small diameter tubes

fingertips

Coarse-grained (cast iron)

high temperature

frequency

5MHz

5MHz

5MHz

7.5MHz

10MHz

2MHz

5MHz

Contact diameter

11mm

13.5mm

13.5mm

8mm

6mm

17mm

15mm

Measuring range

0.8～100.0mm

1.2～200.0mm

1.0～200.0mm

0.8～30.0mm

0.7～12.0mm

4.0～508.0mm

4.0～80.0mm

Allowable temperature

-10～70℃

-10～70℃

-10～70℃

-10～70℃

-10～70℃

-10～70℃

-20～480℃

UM-5

FAQ
QHow thick can this UM-5 Ultrasonic Thickness Gauge be measured?
A UM-5 Ultrasonic Thickness Gauge can measure a thickness of 0.8mm.
