Specifications
| Measurement range | 1.2~200.0mm |
| Probe Frequency | 5Hz |
| Probe diameter | Φ13.5mm |
| Probe contact temperature | -10~70℃ |
| measurement error | ±0.05mm(<25mm)；±0.2%H (<100mm)；±0.5%H (<100mm) |
| Display resolution | 0.01/0.1mm |
| unit system | mm/inch |
| Calibration method | One point calibrated, two point calibrated |
| Repeatability | ±0.05mm |
| Storage Capacity | Can store 400 files, 100,000 thickness values and 1000 A and B scan waveforms |
| statistical function | Thickness Value Mode, Min/MAX Maximum Capture Mode, Difference/Reduction Rate Mode |
| Speed of sound | 500~9999m/s |
| Operating language | Chinese, English, Japanese, German and French are available in five languages |
| Interface | USB 2.0 full speed interface |
| Application Software | DataView software |
| Environmental temperature | -10~50℃ |
| Power Supply | Two 1.5V AA batteries |
| Operating Time | 35h |
| Host size | 153*76*37mm |
| Weight | 280G (including battery) |
Packing list

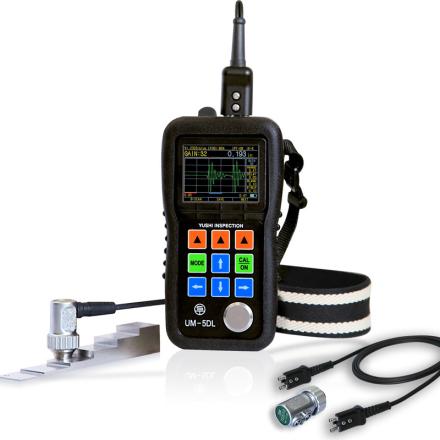

Thickness gauge host, standard probe, instrument box, two alkaline batteries, coupling agent, operation manual, certificate of conformity, packing list, 1 data communication cable, 1 software CD-ROM
After-sales instructions
Warranty days: 365 days
