YUSHINDT PM-5 high-precision Thickness Gauge 0.001mm resolution

PM-5 high-precision Thickness Gauge high-precision type, resolution 0.001mm, the thinnest can measure 0.2mm thickness of the workpiece. It is very suitable for automobile body steel plate, fire/security door, copper door/door plate, fire extinguisher, office cabinet, metal staircase handrail, cooking utensils and other thin-walled materials thickness measurement.
Model：
Contact
Details SPEC CAT OI

yushindt PM-5 Ultrasonic Thickness GaugeSPEC

yushindt PM-5 Ultrasonic Thickness GaugeDetails

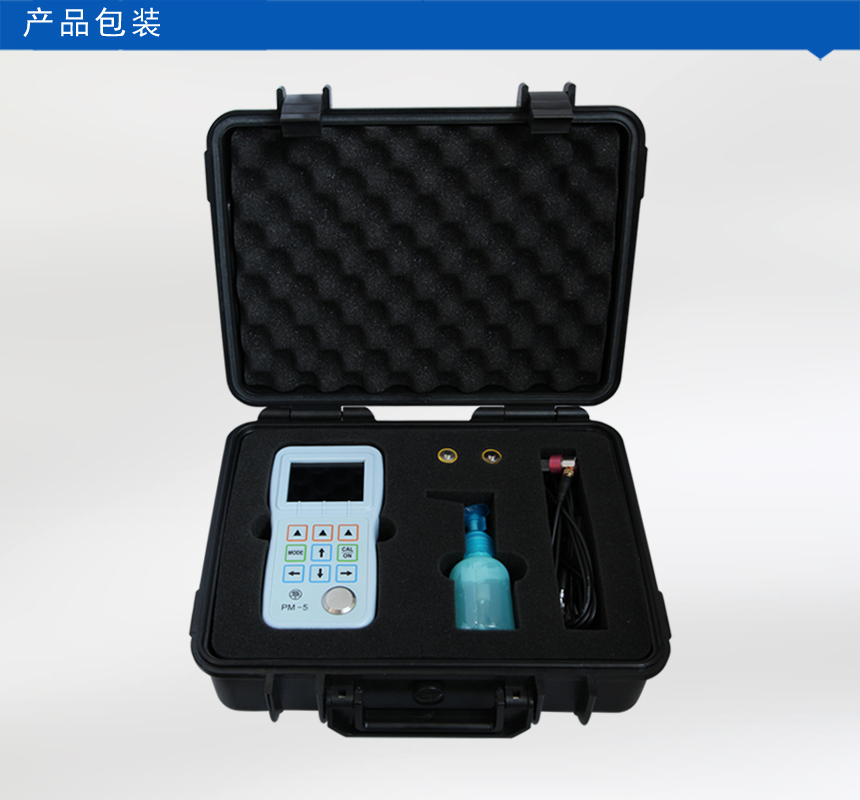

yushindt PM-5 Ultrasonic Thickness GaugePacking list

SKU
NB012028
Measurement range
Automatic 0.25mm-27mm; Multiwave check method 0.25mm-9mm; echo-echo method 0.25mm-13.5mm; pulse-echo method 1.5mm-27mm
Probe Frequency
4Hz, 8Hz, 16Hz per second optional
Display resolution
0.001/0.01/0.1mm
unit system
mm/inch
statistical function
Thickness value, minimum thickness value, and maximum thickness value
Speed of sound
500~9999m/s
Display
2.4QVGA (320 × 240) color OLED screen, contrast ratio 10000:1
Operating language
Chinese, English, Japanese, German and French are available in five languages
Environmental temperature
-10~50℃
Power Supply
Two 1.5V AA batteries
Operating Time
35h
Host size
153*76*37mm
Weight
280G (including battery)
PM-5
Ultrasonic Thickness Gauge

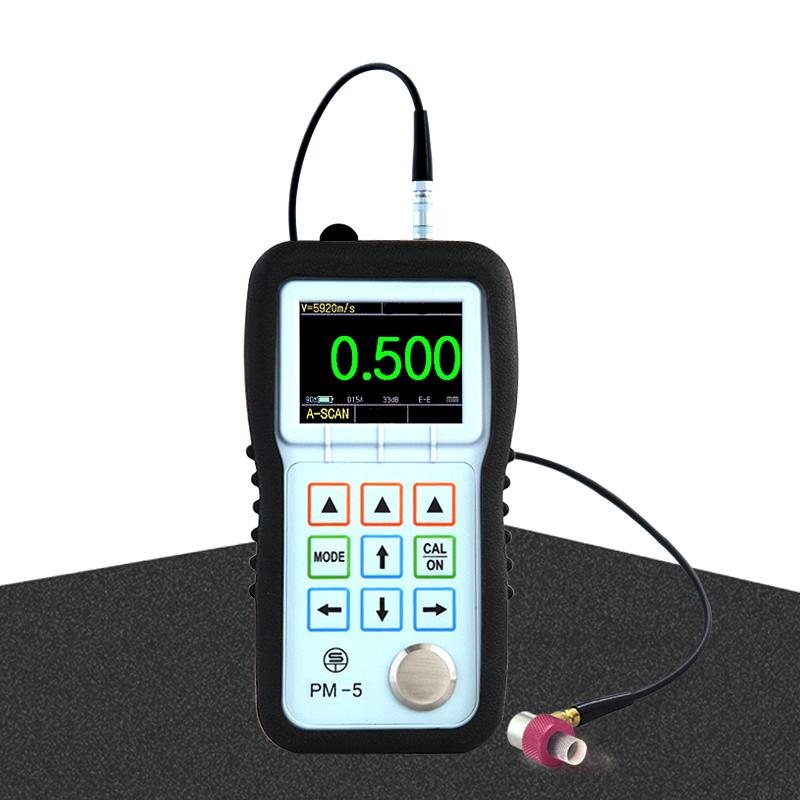

YUSHINDT PM-5 high-precision Thickness Gauge 0.001mm resolution Picture

PM-5 high-precision Thickness Gauge high-precision type, resolution 0.001mm, the thinnest can measure 0.2mm thickness of workpieces, very suitable for automotive body steel plates, fire/security doors, copper doors/door panels, fire extinguishers, office roll cabinets, metal stair handrails, cooking utensils and other thin-walled materials thickness measurement.
