YUSHINDT YUT2620 Digital ultrasonic flaw detection (UFD) instrument AVG Linear dispersion automatic conversion

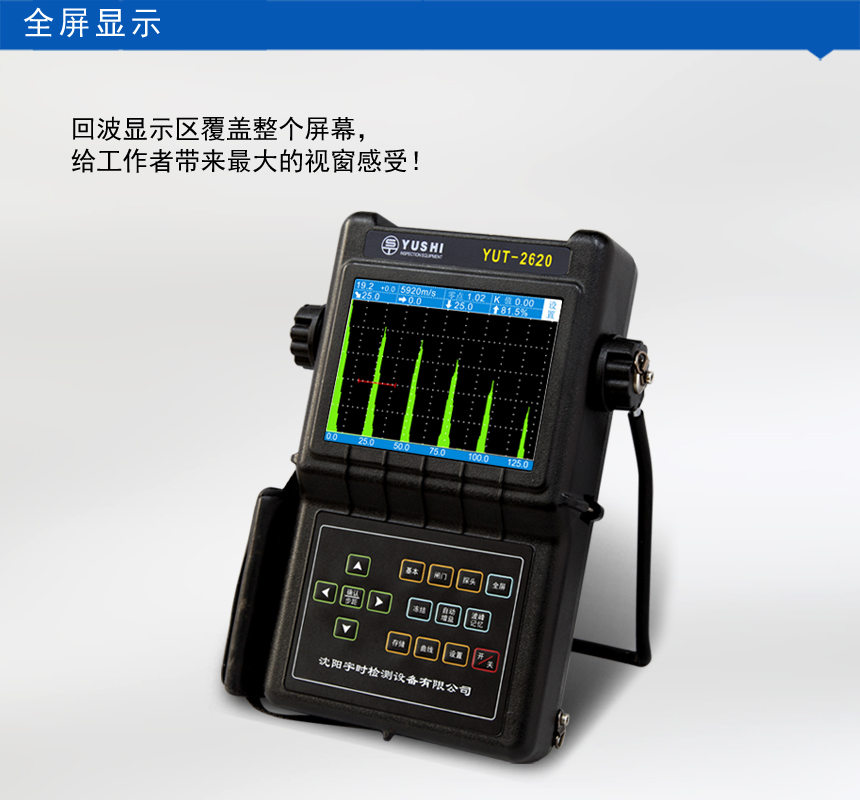

YUT2620

Ultrasonic flaw detection (UFD) instrument

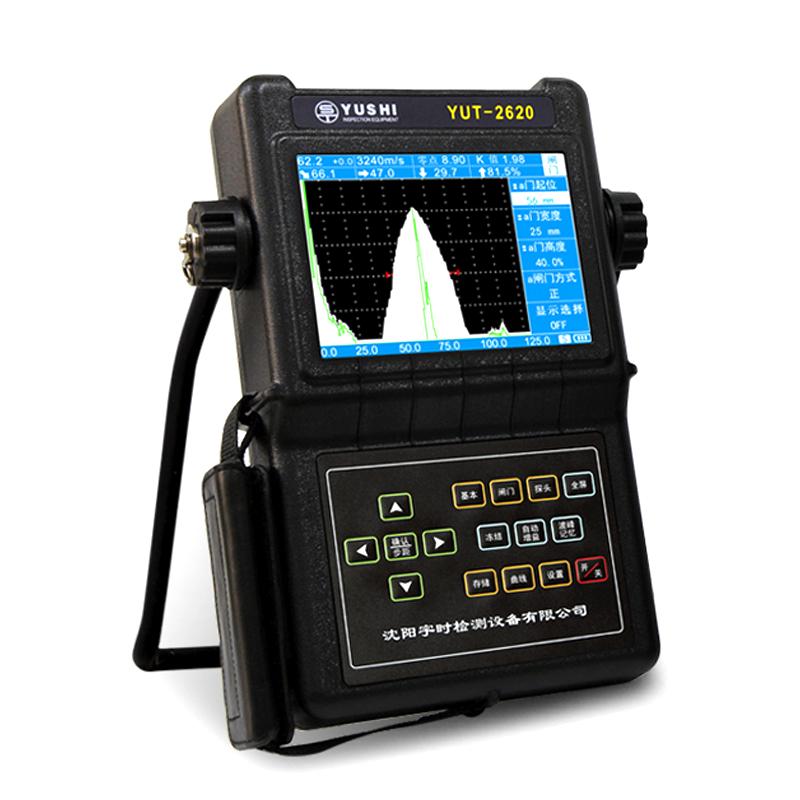

YUT2620 ultrasonic flaw Detector is a portable industrial non-destructive testing instrument, which can quickly, conveniently, without damage and accurately detect, locate, evaluate and diagnose a variety of defects (cracks, porosity, porosity, inclusions, etc.) inside the workpiece. It can be used both in the laboratory and in the engineering field.

Scope of application

It is suitable for all kinds of metal materials, all kinds of welded parts, forgings, castings, etc., and is widely used in the design stage, manufacturing process, finished product inspection, in-service inspection and other fields in boilers and pressure vessels, aerospace, electric power, petroleum, chemical industry, offshore oil, pipelines, military industry, shipbuilding, automobiles, machinery manufacturing, metallurgy, metal processing industry, steel structure, railway transportation, nuclear power, universities, road construction, dam construction, bridge construction and other fields.

Basic Functions:

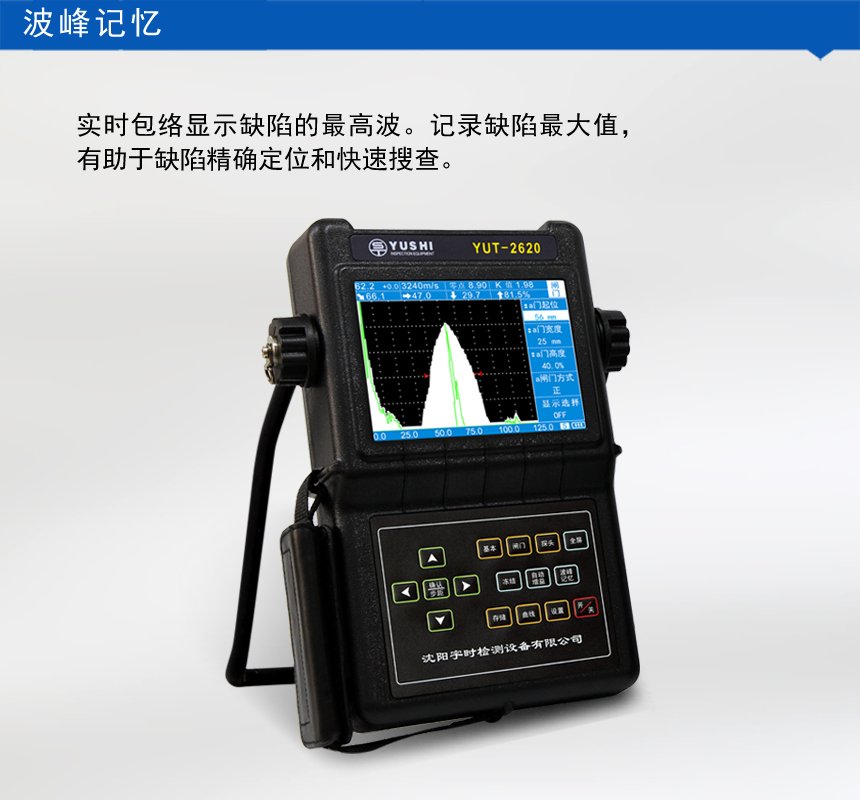

Peak memory: The real-time envelope displays the highest wave of the defect, records the maximum value of the defect, helps to accurately locate the defect and quickly scan, and can also characterize the defect with the help of the envelope waveform

Auto Gain: Automatically adjusts the gain to the set amplitude height

Alarm function: incoming/losing alarm

Real-Time Clock: Automatically records the date and time of the stored waveform

Display Freezing: Capture waveform and sound path data at any time, and move the gate to measure echo parameters after freezing

Defect location: real-time display of sound path S, level X, depth Y, wave height H

Digital rejection: 0-80%, in 1% increments, without affecting linearity and gain

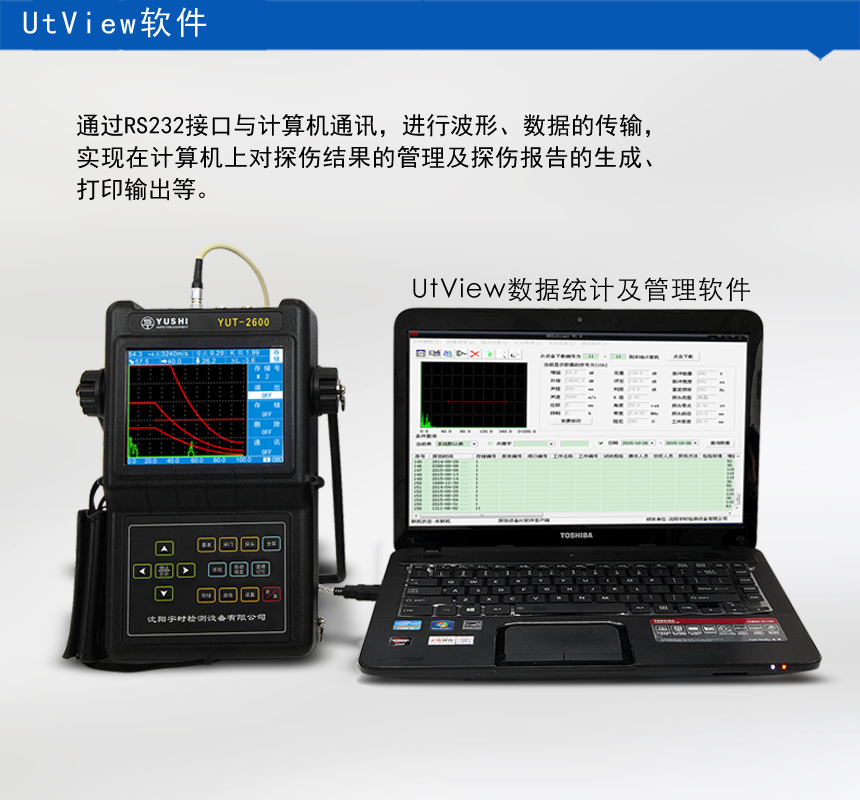

Data communication: communicate with the computer through RS232 interface, transmit waveforms and data, and realize the management of flaw detection results and the generation and printout of flaw detection reports on the computer

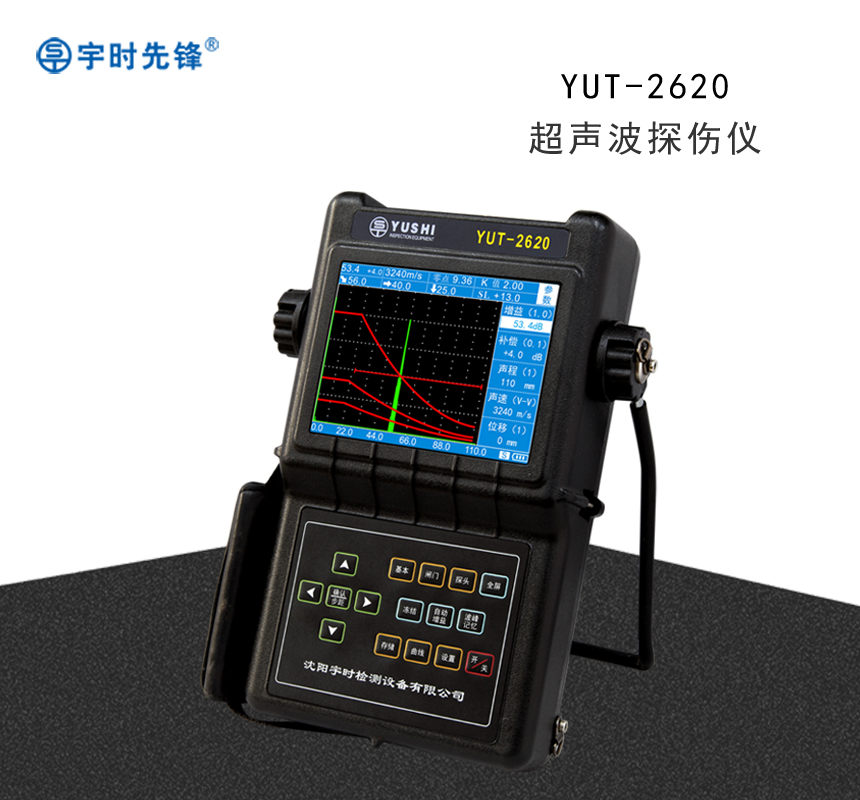

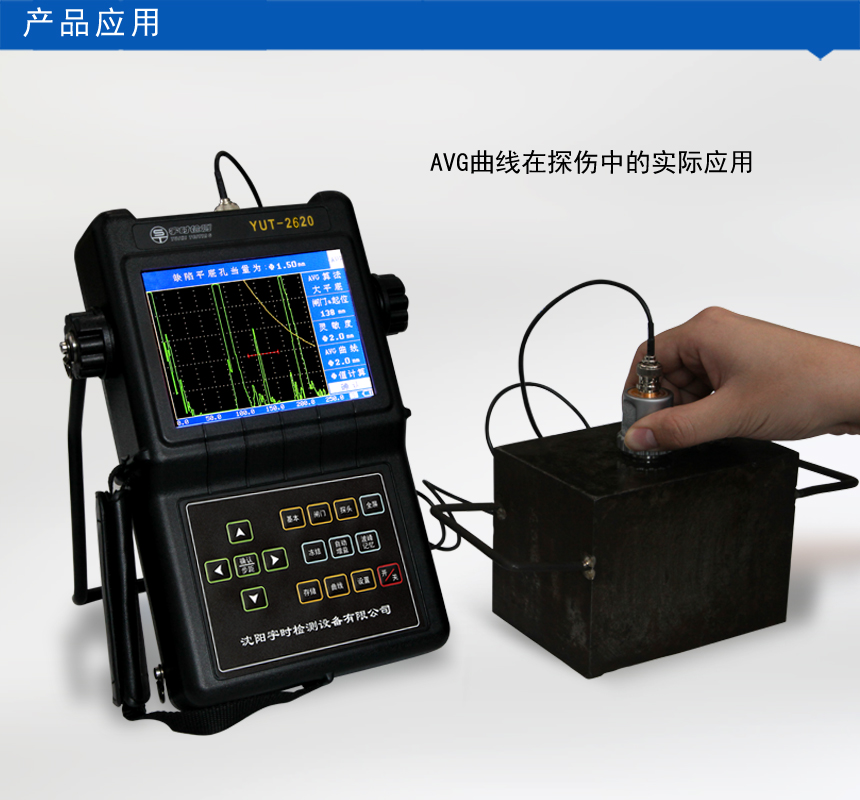

Complete DAC/AVG curve function, the curve changes with the change of gain, sound path, and displacement

Distance compensation of DAC curve: The instrument is designed with a distance compensation function, which only compensates the sensitivity of the signal at a long distance without affecting the near-field resolution, thus greatly improving the scanning range of the instrument:

2 independent measuring gates to monitor echo amplitude and sound path distance

During shear wave flaw detection, the depth of the second and third wave defects is automatically calculated according to the plate thickness

φ value calculation: It can be automatically converted to the defect equivalent size according to the defect wave height

Adjustable brightness of the true color TFT LCD screen, with a variety of color schemes to choose freely

Standard Configuration:

●One main unit

●1 straight probe

●1 oblique probe

●2 probe wires

●One power adapter

●1 set of lithium battery

●One instruction manual

●1 copy of certificate, warranty card, packing card

●1 instrument case

●Communication software CD-ROM, 1 piece

●1 communication cable

Options

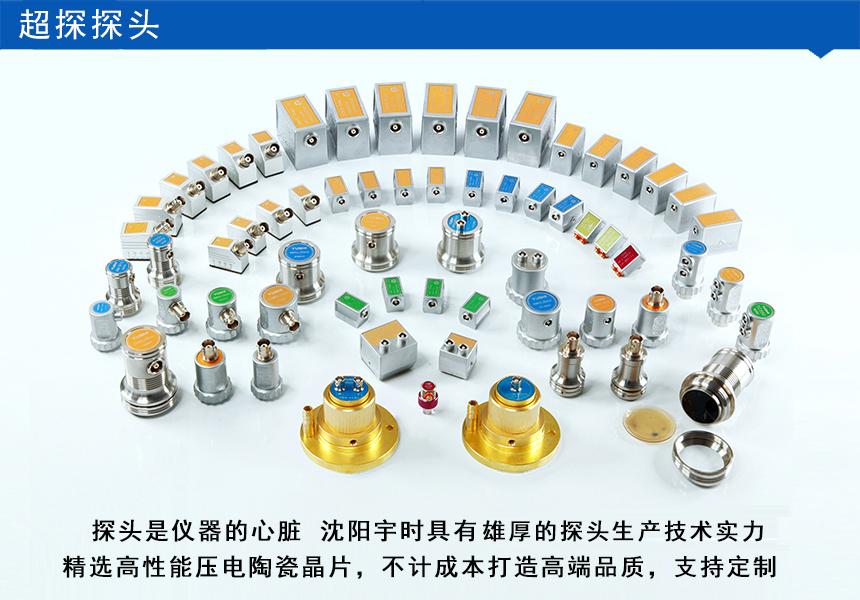

● Various probes

●Various connection cables

●Flaw detection test block

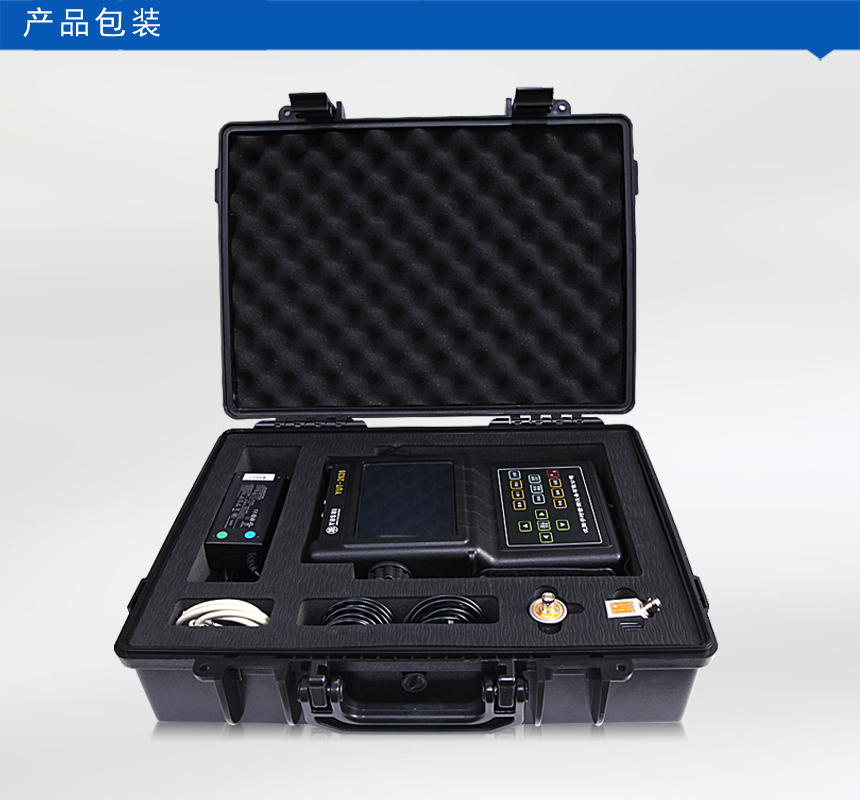

Packing list：Host × 1, lithium battery × 1, charger × 1 (including power cord), communication cable × 1, instrument box strap × 1, straight probe × 1, oblique probe × 1, probe cable × 2, instrument box × 1, manual × 1, certificate × 1, warranty card × 1, instrument use tracking card × 1, packing list × 1, demonstration CD × 1, communication software × 1 (including electronic file instructions)

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
