Defelsko PosiTector 6000 N90S3 Coating Thickness Gauge 90 ° probe eddy Current thickness measurement principle
SEAdvanced Coating Thickness Gauge, 90 ° right angle probe, thickness measurement range 0~625μm, error +/- 3%, 2.8 inch color touch screen, with calibrate certificate, supporting PosiSoft software, can save 100 screen images.
$1756.00/set
PromotionLoading...
Coupon
Model：
PosiTector 6000 N90S3
Similar products
-
AMITTARI AC-990u paints Thickness Gauge, dual function, thickness measurement range 0~500μm$ 231.00SE -
AMITTARI AC-990 Coating Thickness Gauge dual function, thickness measurement range 0~500um$ 265.00SE -
Defelsko PosiTector 6000 N90S1 Coating Thickness Gauge 90 ° Miniature probe, standard$ 1266.00SE
Defelsko PosiTector 6000 N90S3 Coating Thickness GaugeSPEC
Defelsko PosiTector 6000 N90S3 Coating Thickness GaugeDetails

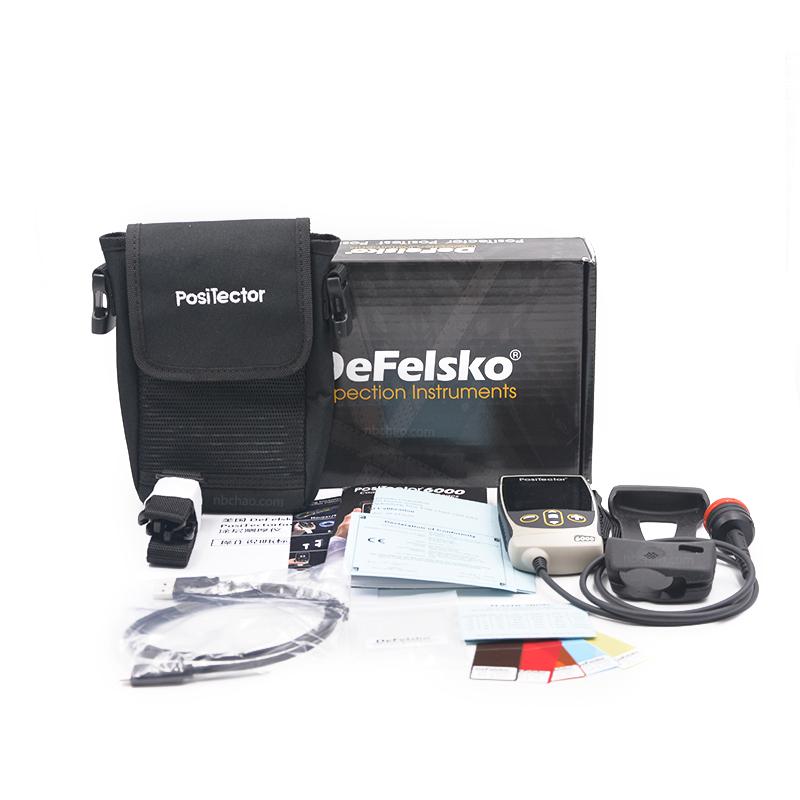

Defelsko PosiTector 6000 N90S3 Coating Thickness GaugePacking list
- SKU
- NB001204
- Measurement principle
- Eddy Current
- Measurement range
- 0~625μm
- margin of error
- ±3%
- Resolution
- 0.1μm

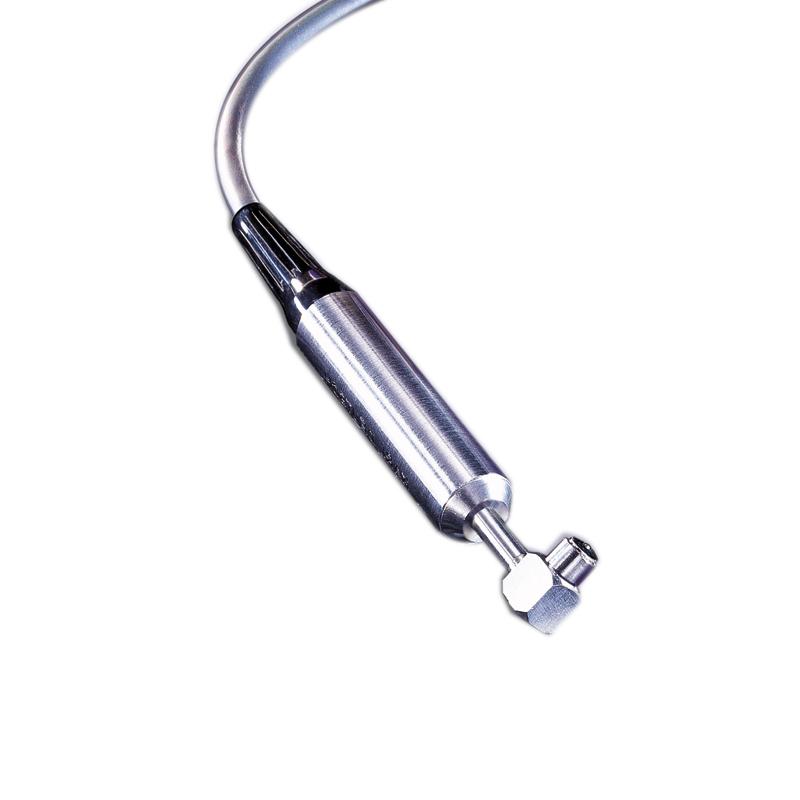

- probe
- N90S3 Probe (90 ° Micro)
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- Yes.

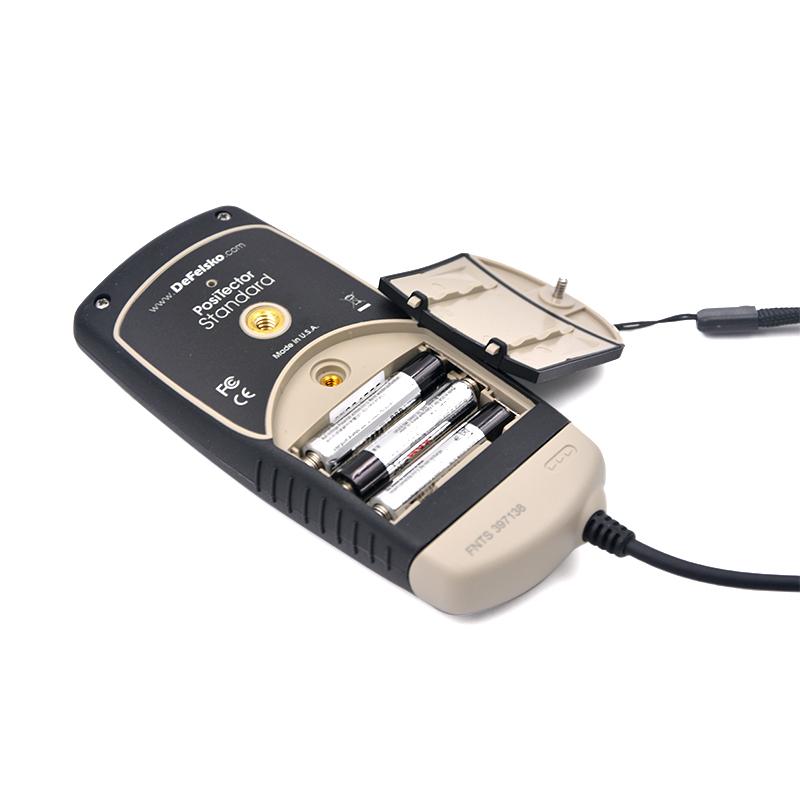

- Power Supply
- 3 * AAA alkaline battery
- Standards
- ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
- Calibrated Certificate
- Yes.
- Language
- Chinese, English

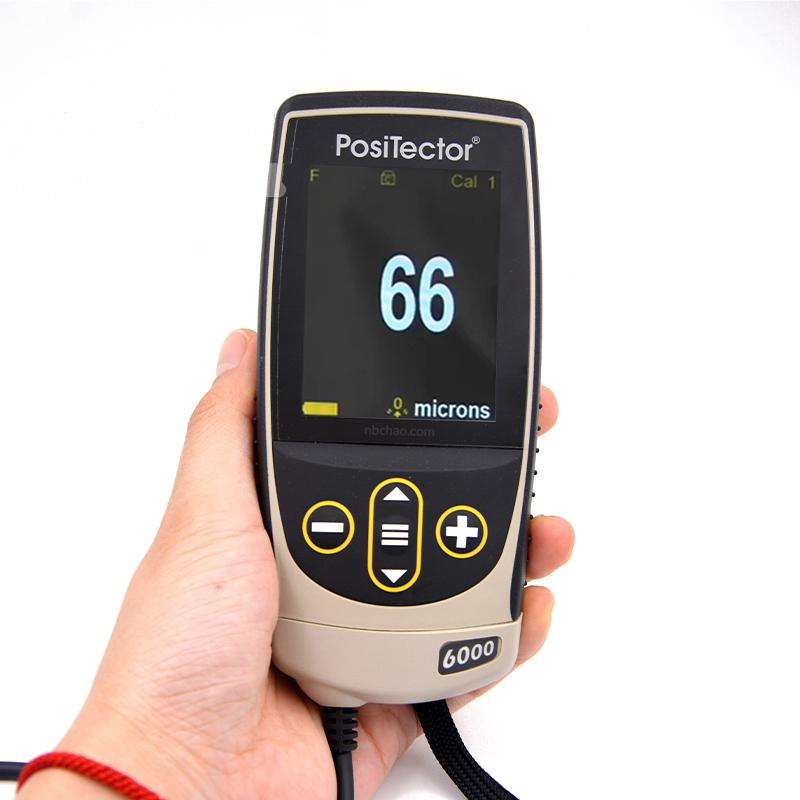

- Display screen
- 2.8-Inch color touchscreen
- Interface
- USB、Bluetooth
- supporting software
- PosiSoft Software Suite
- Machine Weight
- 137G (without battery)
- Machine size
- 127*66*25.4mm
- Data storage
- 250000 Measured values, 1000 groups
- Test environment
- Non-ferrous metal substrate nonconductive coating environment
- Defelsko calibrated standard
- STDA2
- screen image saving
- One hundred.
- Protection level
- IP65
- Measurement speed
- More than 180 readings per minute
PosiTector 6000 N90S3
Coating Thickness Gauge
Advanced Coating Thickness Gauge, 90 ° right angle probe, thickness measurement range 0~625μm, error +/- 3%, 2.8 inch color touch screen, with calibrate certificate, supporting PosiSoft software, can save 100 screen images.
Introduction
The Defelsko PosiTector 6000 N90S3 Coating Thickness Gauge is an advanced PosiTector 6000 series paint Thickness Gauge that can store up to 100,000 measurements and support real-time graphing, picture prompts, and batch recording.The N90S3 coating Thickness Gauge adopts the principle of eddy current thickness measurement, which is suitable for measuring non-conductive cladding on non-magnetic metals such as aluminum and copper, and the measured film thickness range is 0~625 microns, and can be connected to a PC through the USB interface to transmit data.
Recommended reading
★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》
★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)
FAQ
QDo the Defelsko 6000 series thickness gauges come standard with software?
A
This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhy can't the Defelsko Coating thickness gauge be charged?
A
Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QThe workpiece is a curved surface, and the inner diameter is about 30mm. Can it be measured?
A
OK
QCan the DefelskoPosiTector 6000 N90S3 Coating thickness gauge meet the ASTME376 standard?
A
Applicable, you can consult the customer service of the mall for details about the ASTME376 standard.
