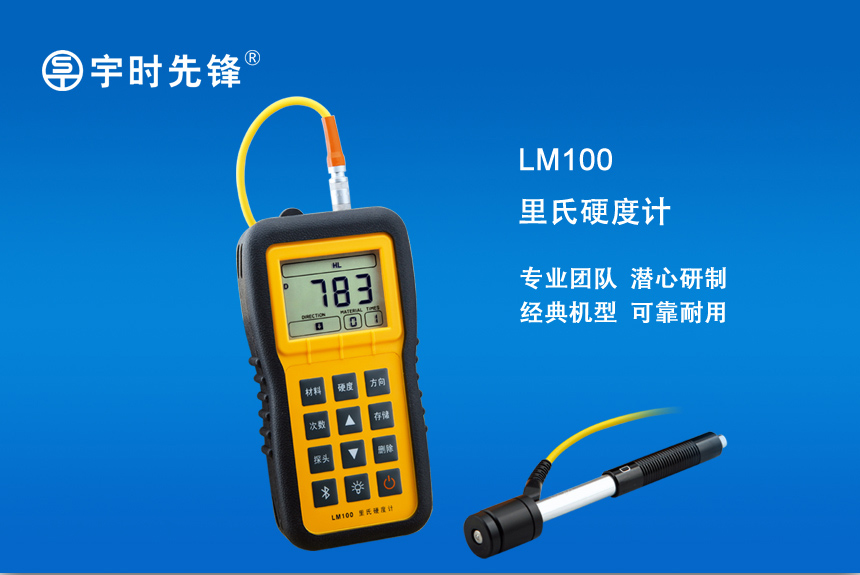

YUSHINDT LM100 Leeb Hardness Tester
LM100
yushindt LM100 Leeb Hardness TesterSPEC
yushindt LM100 Leeb Hardness TesterDetails
yushindt LM100 Leeb Hardness TesterPacking list
- SKU
- NB012040
- Hardness system
- HL/HRC/HRB/HB/HV/HS/σb
- Measurement range
- 200~960HLD、19.8~68.5HRC、13.5~100HRB、30~651HB、80~976HV、26.4~99.5HS、375~2639σb
- Error of indication
- ≤6HLD(HLD=800)
- Measurement direction
- Support vertical down, diagonal down, horizontal, diagonal up, vertical up
- Measurement material
- Steel and cast steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper zinc alloy, copper tin alloy, pure copper
- Resolution
- 1HL，1HV，1HB，0.1HRB，0.1HRC，0.1HS
- Display
- High contrast ratio LCD screen (LED backlight)
- Data storage
- 100 groups (each group contains 1-7 Hardness values and 1 average value)
- Communication interface
- Bluetooth, USB
- Power Supply
- Two 1.5V AA batteries
- Print function
- Bluetooth thermal portable printer
- Operating temperature
- -10~+50℃
- Dimensions
- 53*76*37mm
- Weight
- 280G (including battery)
- meet the standard
- GB/T 17394-1998,ASTM A956
- Indication Repeatability
- <6HLD(HLD=800)
LM100 Leeb Hardness Tester is an economical Hardness Tester, which can measure 6 systems: cloth, Luo, Wei and Xiao, which is suitable for measuring the hardness of various metal materials.

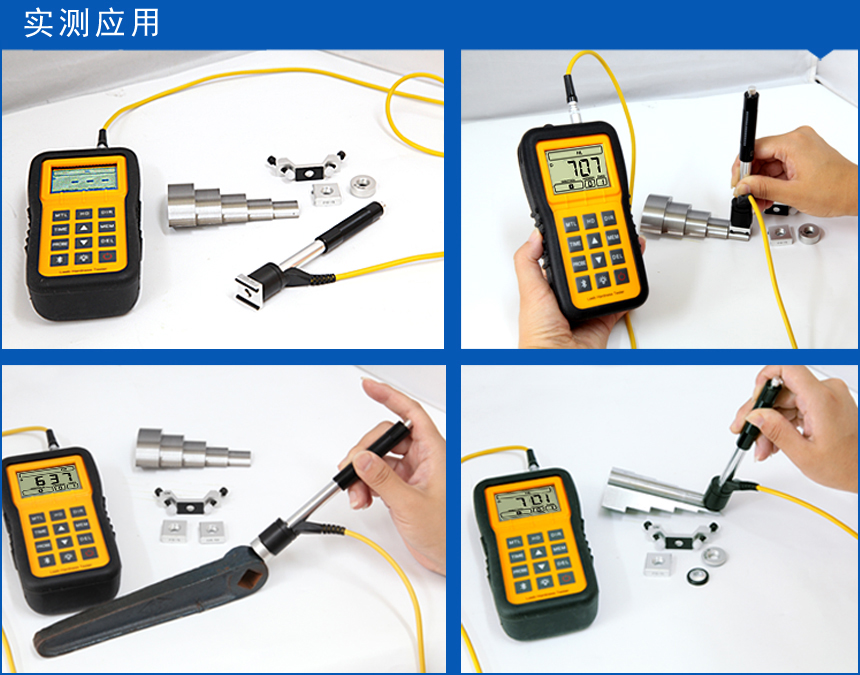

Scope of application
It is suitable for failure analysis of installed mechanical or long-term tissue parts, abrasive cavities, heavy workpieces, pressure vessels, other equipment of automobile generator set machines, narrow test areas, production lines of bearings and other parts, material differentiation of metal material warehouses and on-site hardness testing of large workpieces, and batch testing of workpieces on the production line. It is also widely used in metal manufacturing, transportation, power plants, petrochemicals, aviation, construction and laboratories.
