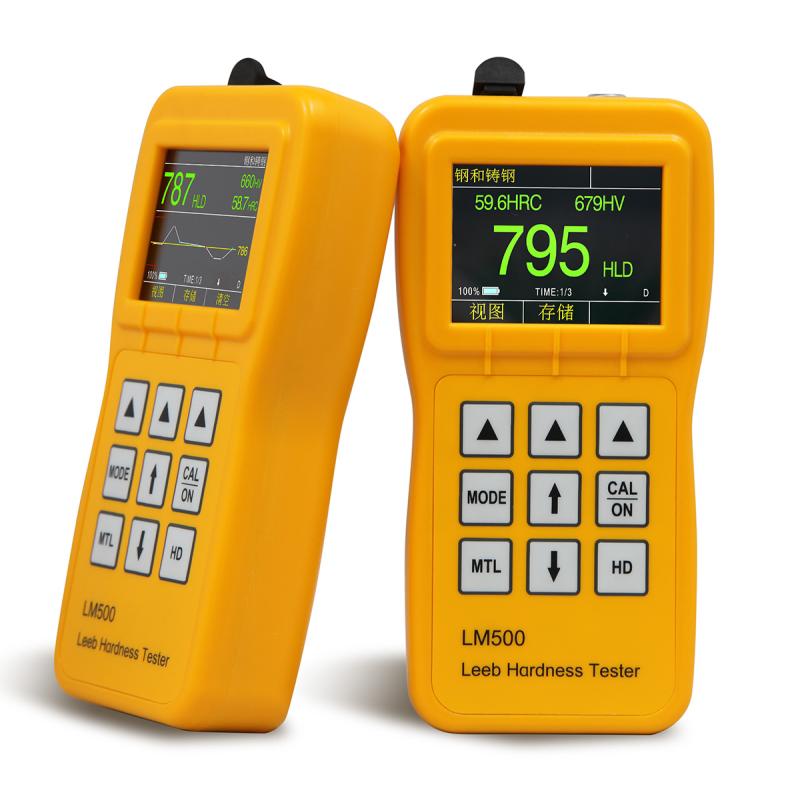

YUSHINDT LM500 color screen Leeb Hardness Tester color large screen 3 kinds of Hardness same screen
YUSHINDT LM500 color screen Leeb Hardness Tester high-end type, OLED color screen, large screen display, increased drawing Linear dispersion function, large storage
Model：
LM500
yushindt
yushindt LM500 Leeb Hardness TesterSPEC
yushindt LM500 Leeb Hardness TesterDetails
yushindt LM500 Leeb Hardness TesterPacking list
- SKU
- NB012042
- Display
- Color high-definition 2.4-inch QVGA (320 * 240 dot matrix) IPS display
- Hardness system
- HL/HRC/HRB/HB/HV/HS/σb
- Measurement range
- 200~960HLD、19.8~68.5HRC、13.5~100HRB、30~651HB、80~976HV、26.4~99.5HS、375~2639σb
- Error of indication
- ≤6HLD(HLD=800)
- Measurement direction
- Support vertical down, diagonal down, horizontal, diagonal up, vertical up
- Measurement material
- Steel and cast steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper zinc alloy, copper tin alloy, pure copper
- Resolution
- 1HL，1HV，1HB，0.1HRB，0.1HRC，0.1HS
- working language
- Available in Chinese and English
- Application Software

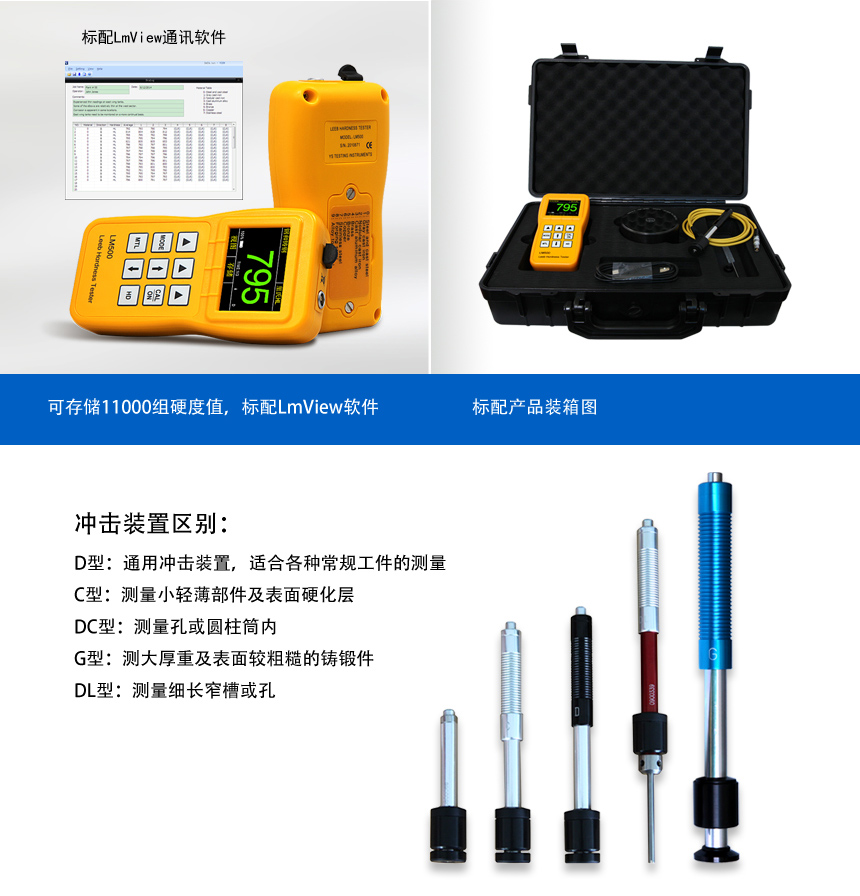

- Random comes with LmView software, which can manage, archive, print and other operations on measurement data
- Power Supply
- Two 1.5V AA batteries
- Data storage
- 200 files, 11,000 sets (each set contains 1-8 Hardness values and 1 average value)
- Operating temperature
- -10~+50℃
- Dimensions
- 153*76*37mm
- Weight
- 280 (including battery)
- meet the standard
- GB/T 17394-1998,ASTM A956
- Indication Repeatability
- <6HLD(HLD=800)

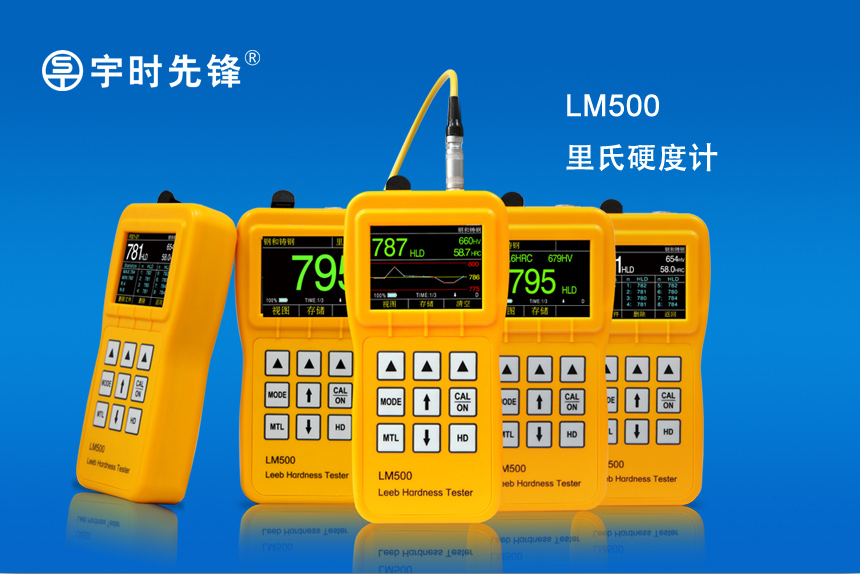

LM500
Leeb Hardness Tester

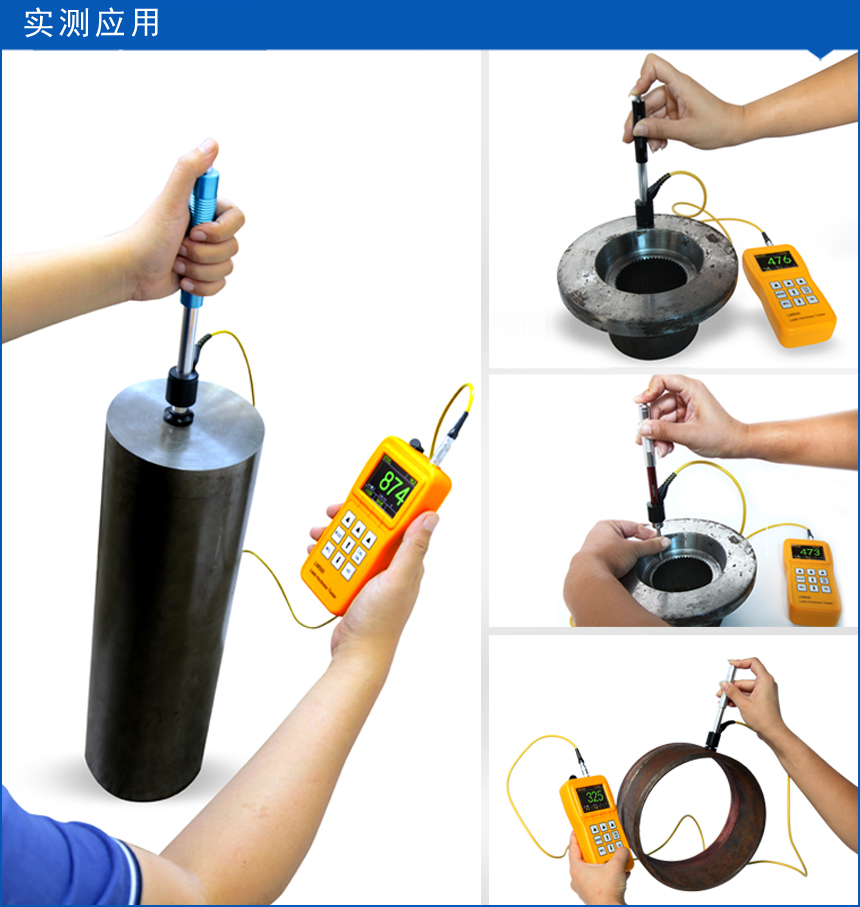

Applications:
It is suitable for failure analysis of installed mechanical or long-term tissue parts, abrasive cavities, heavy workpieces, pressure vessels, other equipment of automobile generator set machines, narrow test areas, production lines of bearings and other parts, material differentiation of metal material warehouses and on-site hardness testing of large workpieces, and batch testing of workpieces on the production line. It is also widely used in metal manufacturing, transportation, power plants, petrochemicals, aviation, construction and laboratories.
