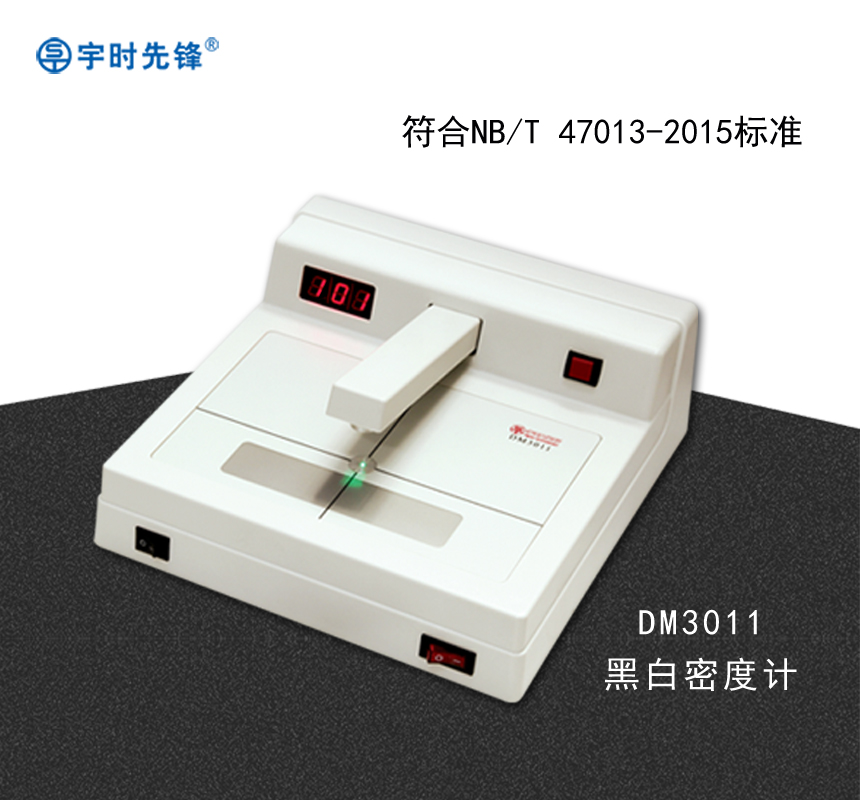

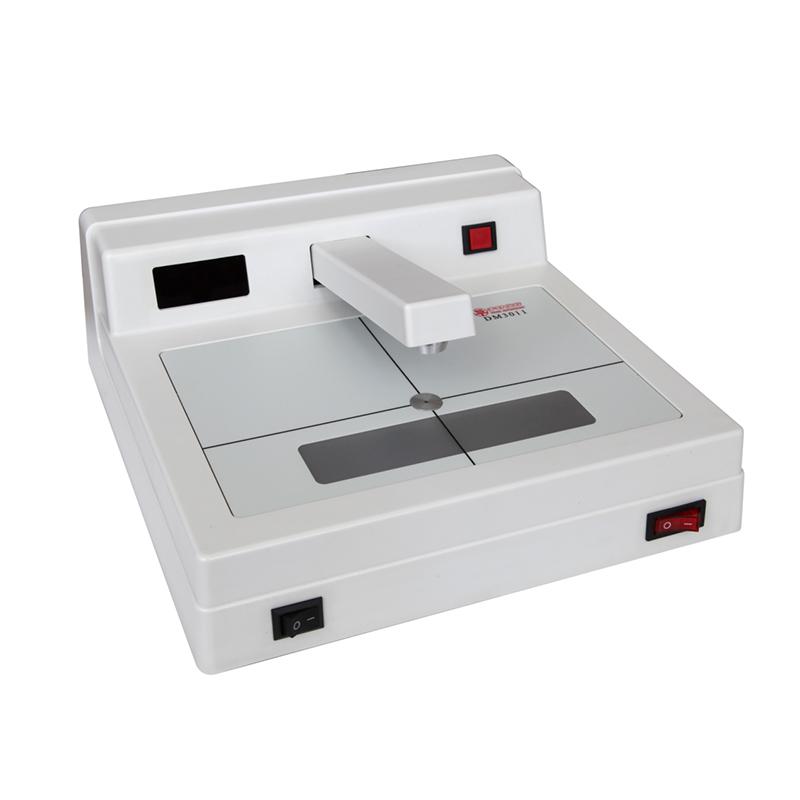

YUSHINDT DM3011 Black and white densitometer Blackness range 0~5.0D
YUSHINDT DM3011 Black and white densitometer Blackness value range 0-5.D, with calibrating software, special inspection required instruments.
Model：
DM3011
yushindt
yushindt DM3011 Black and white densitometerSPEC
yushindt DM3011 Black and white densitometerDetails

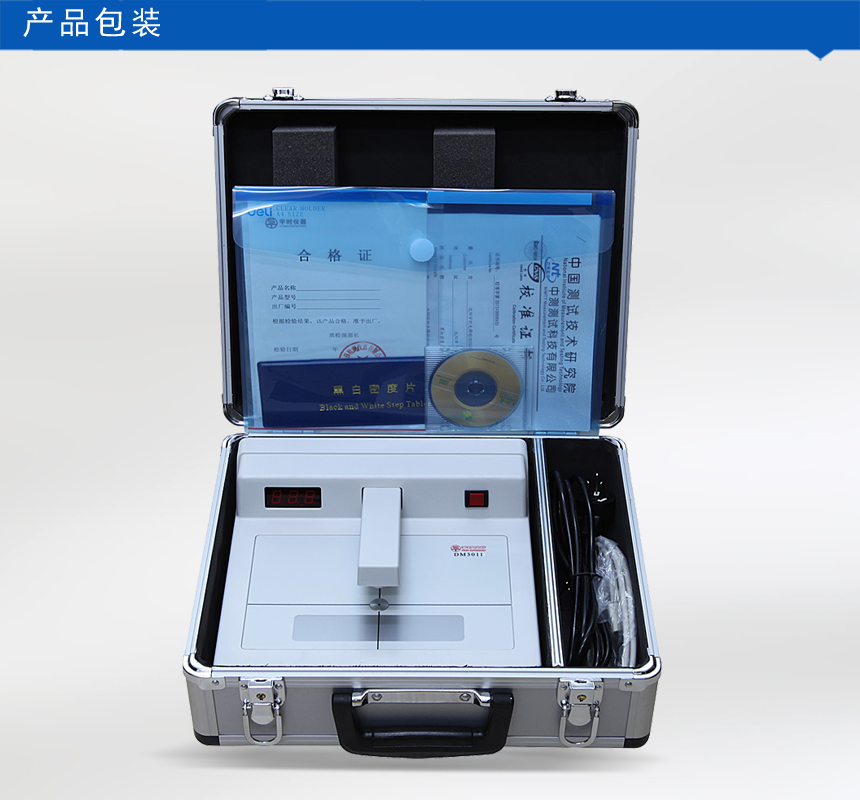

yushindt DM3011 Black and white densitometerPacking list
- SKU
- NB012046
- Measurement range
- D=0.00~5.00
- uncertainty
- ±0.05D
- Stability of readings
- ±0.02
- Measurement area
- Φ2.00mm
- Sampling time
- 0.8 seconds
- Power Supply
- 50~60Hz、220V±10%
- Dimension
- 260*265*110mm
- Display mode
- Three-digit display
- Environmental temperature
- 0~40℃
- Environmental humidity
- Relative Humidity ≤ 85%
- Weight
- About 2.1kg
- power consumption
- Approx. 25W
DM3011
Black and white densitometer

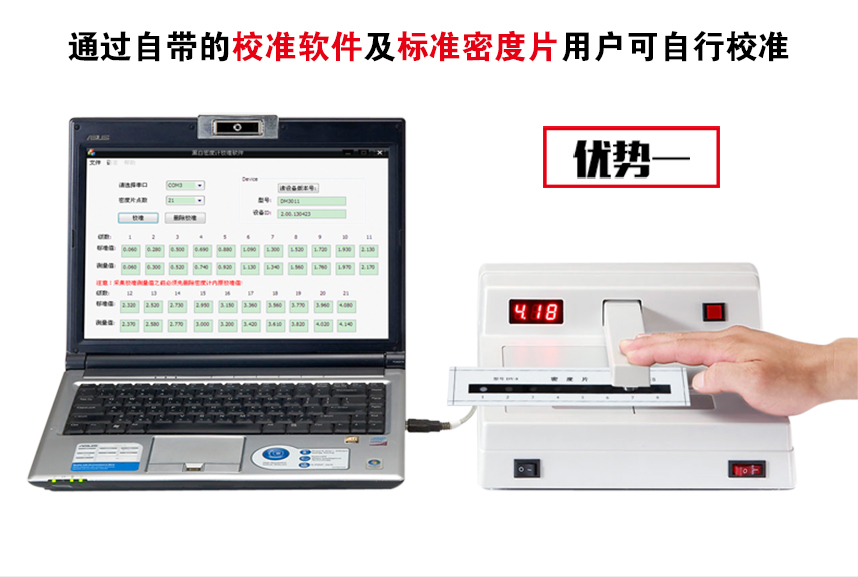

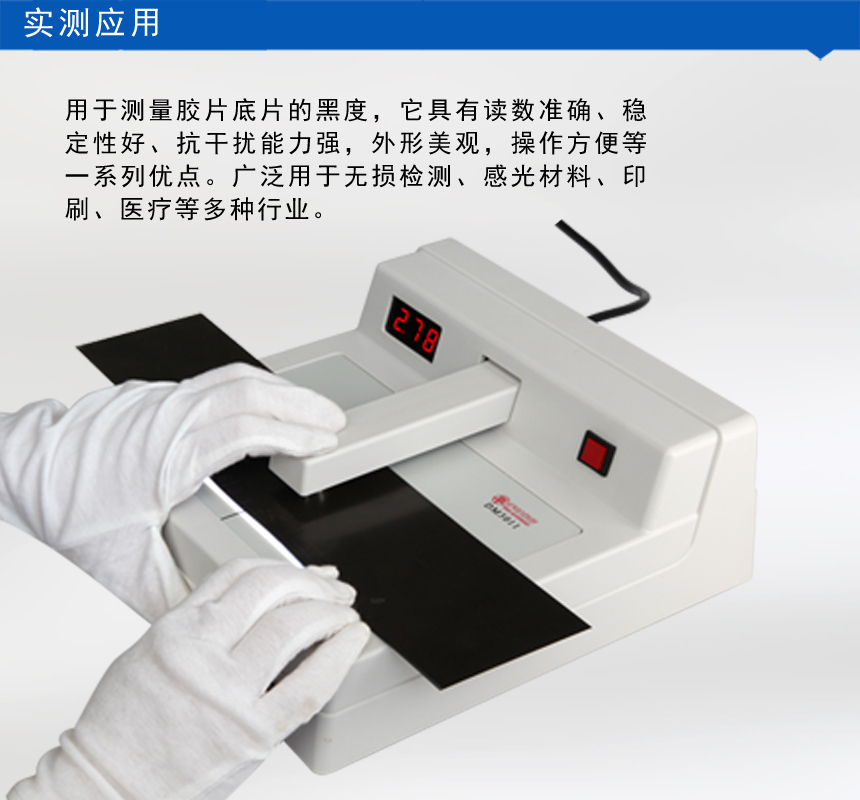

Universal Pioneer DM3011 black and white density meter blackness value range 0-5.D, with calibration software, special inspection of the required instruments. Good products that adopt computer high-tech. It has a series of characteristics such as accurate reading, good stability, beautiful appearance and convenient operation. It can be widely used in non-destructive testing, printing, and other industries. Each instrument is supplied with a density sheet to verify the accuracy of the instrument. Featured serial port calibration function: It can be calibrated through the built-in calibration software to adapt to different density curves.
FAQ
QDM3011 Black and white densitometer, Encasement contains certificate of conformity, inspection certificate?
A
Certificate of conformity and calibrating certificate for black and white Density sheet, calibrating certificate without instrument
