Defelsko PosiTector 6000 NKS3 Coating Thickness Gauge eddy current principle, special probe for thick coatings

SE
Thick coating probe 0~13mm; support usb/bluetooth/wifi communication interface; can flip the display touch LCD screen, support screenshots; with real-time drawing measurement data, batch processing mode, three scanning modes.
$1661.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 NKS3 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 NKS3 Coating Thickness GaugeDetails

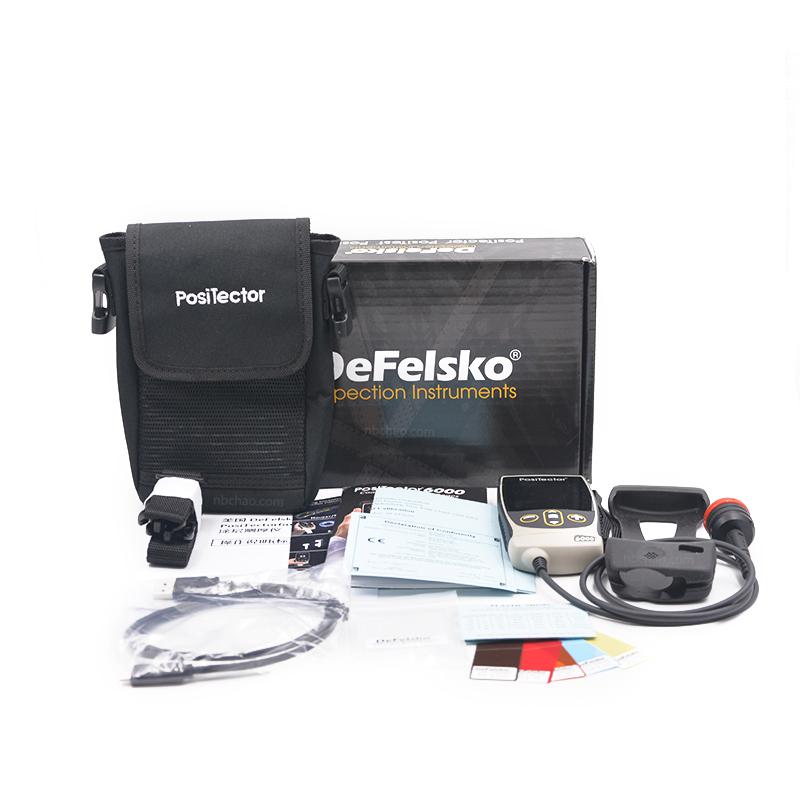

Defelsko PosiTector 6000 NKS3 Coating Thickness GaugePacking list

SKU
NB001205
Measurement principle
Eddy Current
Measurement range
0~13000μm
margin of error
±3%
Resolution
0.1μm
probe
NKS3 probe (super thick coating)
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
Yes.
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB、Bluetooth
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
250000 Measured values, 1000 groups
Test environment
Non-ferrous metal substrate nonconductive coating environment
Defelsko calibrated standard
STDP5
screen image saving
One hundred.
Protection level
IP65
Measurement speed
More than 180 readings per minute

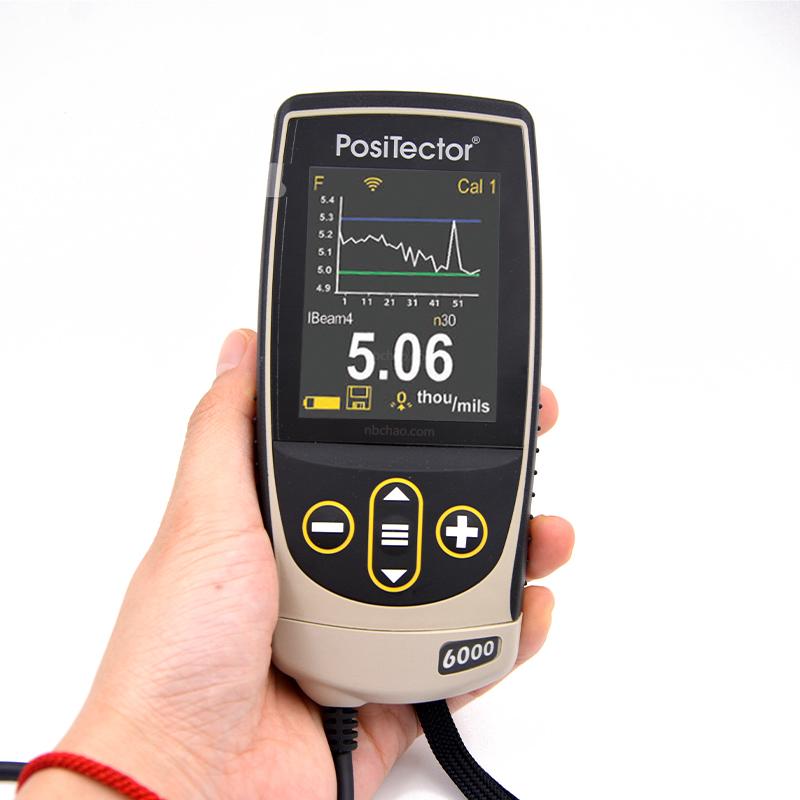

PosiTector 6000 NKS3
Coating Thickness Gauge
Thick coating probe 0~13mm; support usb/bluetooth/wifi communication interface; can flip the display touch LCD screen, support screenshots; with real-time drawing measurement data, batch processing mode, three scanning modes.
Defelsko PosiTector 6000 NKS3 Coating Thickness Gauge eddy current principle, special probe for thick coatings Picture

Coating Thickness Gauge selector

Introduction

Imported Defelsko from the United StatesCoating Thickness GaugeThe PosiTector 6000 NKS3 is an advanced 6000 series Thickness Gauge that uses the principle of eddy current thickness measurement and is equipped with a special probe for thick coatings to measure the thickness of non-conductive coatings with large coating thicknesses, with a measurement range of 0~13mm.Coating Thickness GaugeThe PosiTector 6000 NKS3 is a storage Thickness Gauge capable of storing up to 100,000 measurements, including Positector analysis software, which can be transferred via a USB cable to a computer.

New features have been added to the new version of the Defelsko PosiTector console in the United States

Defelsko Devs high brand introduction

Defelsko PosiTector 6000 NKS3 Coating Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Advantages of the protective features of the Defelsko PosiTector 6000 NKS3 Coating Thickness Gauge

Additional features of the Defelsko PosiTector 6000 NKS3 Coating Thickness Gauge

Typical application area of the Defelsko PosiTector 6000 NKS3 coating Thickness Gauge in the United States

Why choose the Defelsko PosiTector 6000 NKS3 Coating Thickness Gauge in the United States?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI want to measure thickness coatings, such as anti-corrosion coatings for ships or large storage tanks, which instrument should I choose?
A Recommended PosiTector 6000 NKS3, it is designed for thick coatings, Measurement range 0~ 13mm, suitable for ships, tanks and other anti-corrosion applications, eddy Current principle to ensure accurate measurement of ultra thick nonconductive coatings on non-ferrous metal substrates.
QIs this instrument convenient to use in an industrial setting?
A Yes! PosiTector 6000 NKS3 Protection Rating IP65, dustproof and waterproof, lightweight and portable, measures more than 180 readings per minute, and can also store 100,000 data, transmitted via USB or Bluetooth, suitable for on-site rapid detection and Data analysis.
QI want to measure thick coatings, such as anti-corrosion coatings for car chassis, which instrument should I choose?
A Recommended PosiTector 6000 NKS3, it uses eddy Current principle and special Probe, measurement range 0~ 13mm, suitable for automotive chassis and other thick anti-corrosion coatings, the error is only +/- 3%, to ensure accurate data.
QCan this instrument be used in the marine industry? Why?
A Yes! Marine coatings are often very thick, NKS3 Probe is designed for thick coatings, with a range of 13mm, meeting ISO 19840 and other marine standards, Protection Rating IP65, resistance to harsh environments.
QIs the PosiTector 6000 NKS3 sufficient to store large amounts of measurement data?
A It can store 100,000 sets of data, supports USB and Bluetooth transmission, and comes with PosiSoft software, which is convenient for you to analyze statistics and improve work efficiency.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.

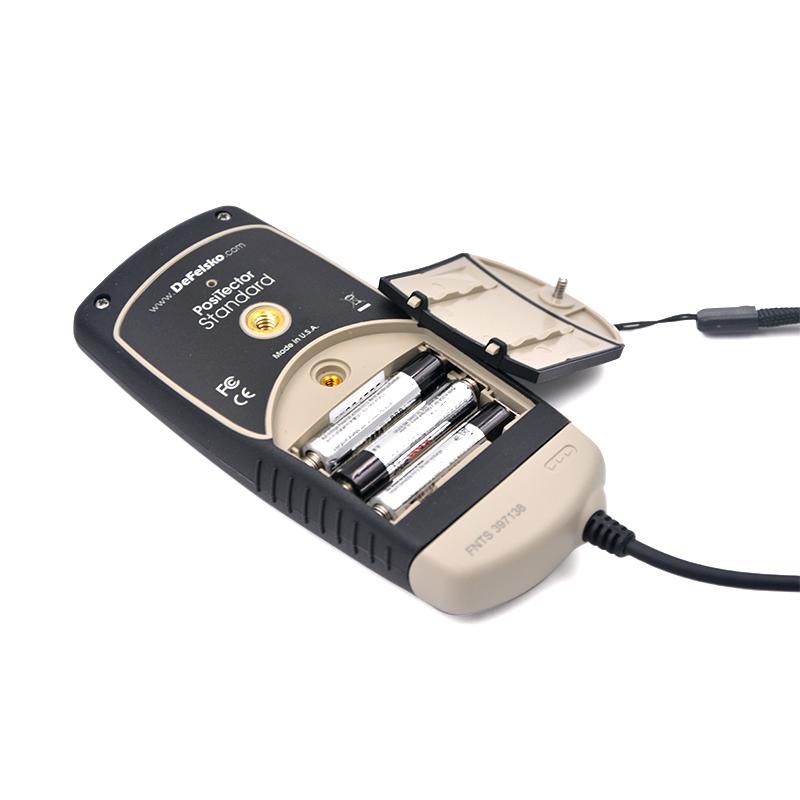

QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).

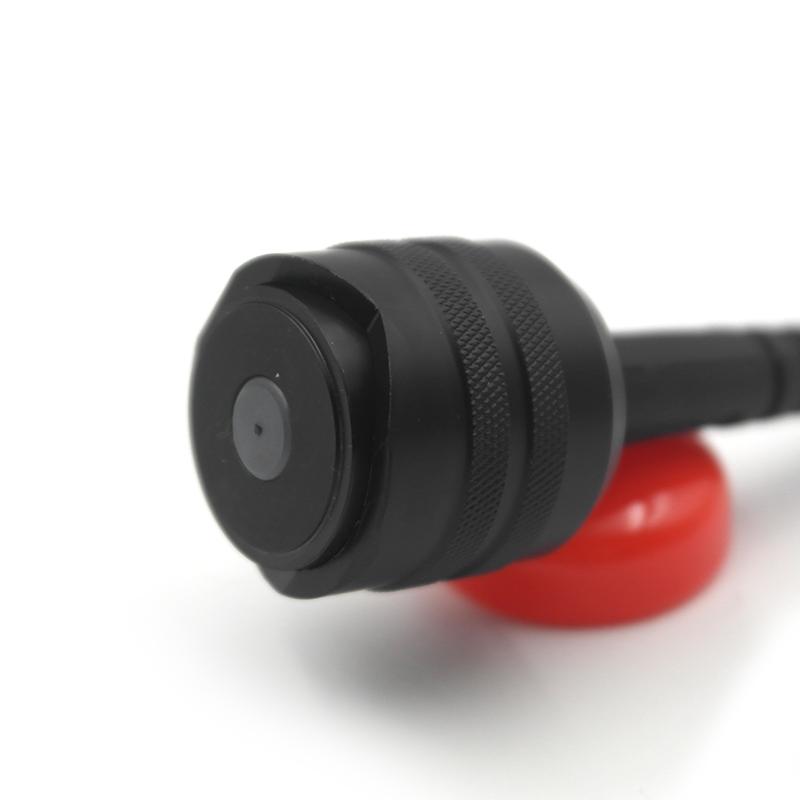

QWhat is the contact surface size of the PosiTector 6000 NKS3 Coating thickness gauge?
A Hello, the measurement diameter of the probe is 30mm, so the contact surface of the measured object should be greater than 30mm.
QIs there an ASTME376 standard Coating thickness gauge?
A This Defelsko Coating thickness gauge is fine!
