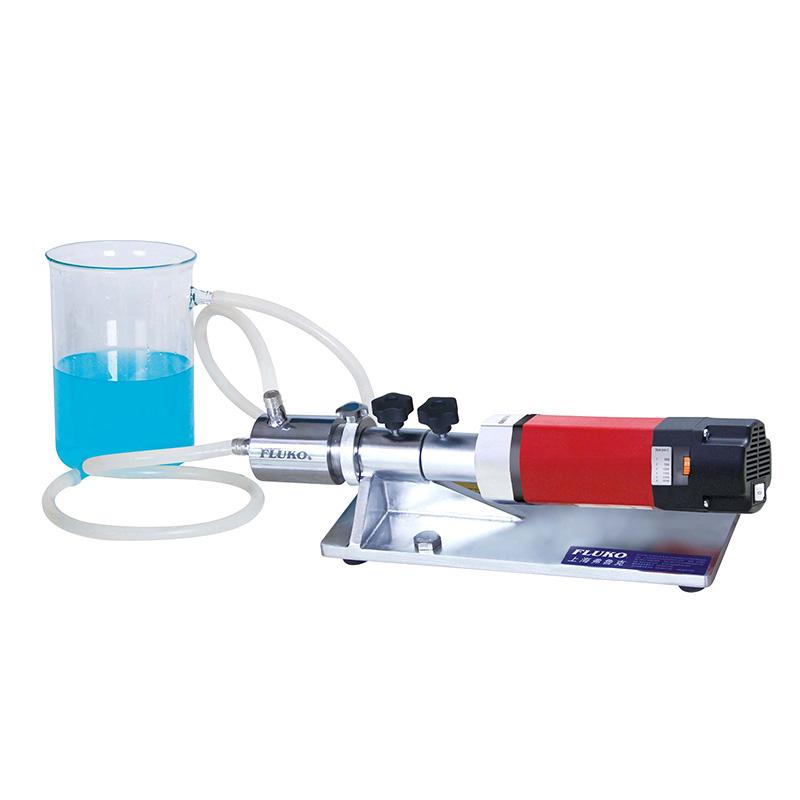

FLUKO F30Z High Shear Dispersion Mulser Flow rate up to 1~ 20L/min
The FLUKO F30Z High Shear Dispersion Mulser is an online high shear dispersion Mulser with a speed range of 5000-25000 rpm. The F30Z High Shear Dispersion Mulser can cycle materials to complete online dispersion, emulsification, homogenization, and mixing.
Model：
F30Z
fluko
Similar products
fluko F30Z FLUKO High Shear Dispersion MulserSPEC
fluko F30Z FLUKO High Shear Dispersion MulserDetails
fluko F30Z FLUKO High Shear Dispersion MulserPacking list
- SKU
- NB012056
- Power
- 1050W
- Flow rate range
- 1-20L/min
- Max. Processing Viscosity
- 1000CP
- Speed range
- 3500~25000rpm
- Use the highest temperature
- 120℃
- Rotation speed display
- scale
- Rotation speed control
- SS316L、FKM
- Standard working chamber
- Stainless steel jackless working chamber
- Work head specification
- 25DG
- Mechanical sealing material
- Graphite, FKM, Ceramics
- Import and export outer diameter
- 14 (hose interface)
- Process type
- online processing
- Base material
- SS304
- Dimension
- 665*120*135mm
- Weight
- ~7kg
F30Z
FLUKO High Shear Dispersion Mulser
Introduction
The Fluck F30Z high-shear dispersion emulsifier uses a high-speed motor and can be optionally equipped with a stainless steel jacketed working chamber or a glass working chamber. The unique stator and rotor structure produces super shear force, rapidly reduces the size of the droplets, and processes the material more finely and uniformly.
Features
The F30Z high shear dispersion emulsifier can be used for circulating or on-line continuous processing in the laboratory under simulated online Operating Conditions, and has the characteristics of effective homogenization without dispersion dead ends.
Applicable process
Laboratory continuous flow processing, which can recycle materials to complete online dispersion, emulsification, homogenization and mixing.

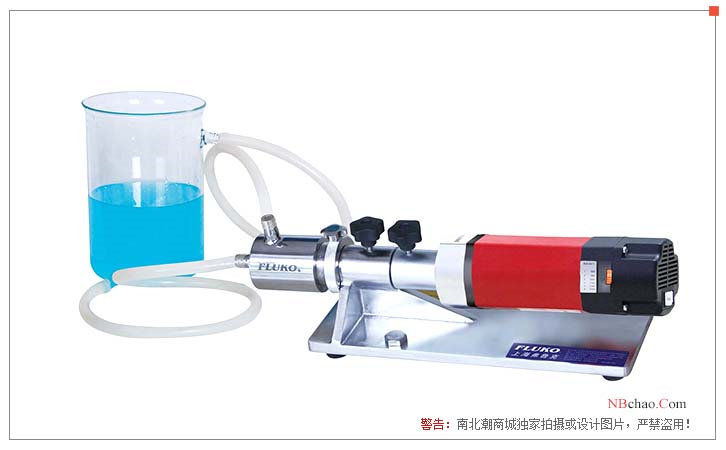

Presentation diagram
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
