Defelsko PosiTector 6000 FKS3 Coating Thickness Gauge magnetic Induction thickness coating probe

SE
Advanced Bluetooth transmission, magnetic Induction Thickness principle, with thick coating probe, thickness measurement range 0~13000 μm, error +/- 3%, with calibrated certificate, 2.8 inch color touch screen, screen image saving 100, supporting PosiSoft software.
$1641.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 FKS3 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 FKS3 Coating Thickness GaugeDetails

Defelsko PosiTector 6000 FKS3 Coating Thickness GaugePacking list

SKU
NB001206
Measurement principle
Magnetic Induction
Measurement range
0~13000μm
margin of error
±3%
probe
Thick coating probe
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
Yes.
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB、Bluetooth
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Test environment
Ferrous metal substrate nonmagnetic coating environment
Defelsko calibrated standard
STDP5
Data storage
250000 Measured values, 1000 groups
screen image saving
One hundred.
Protection level
IP65
Measurement speed
More than 180 readings per minute
PosiTector 6000 FKS3
Coating Thickness Gauge
Advanced Bluetooth transmission, magnetic Induction Thickness principle, with thick coating probe, thickness measurement range 0~13000 μm, error +/- 3%, with calibrated certificate, 2.8 inch color touch screen, screen image saving 100, supporting PosiSoft software.

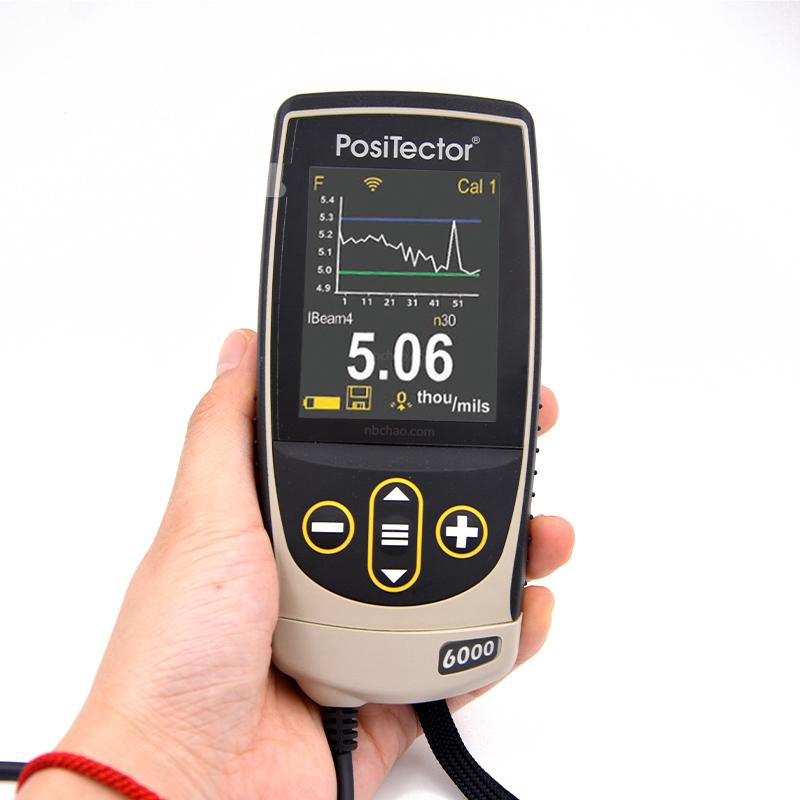

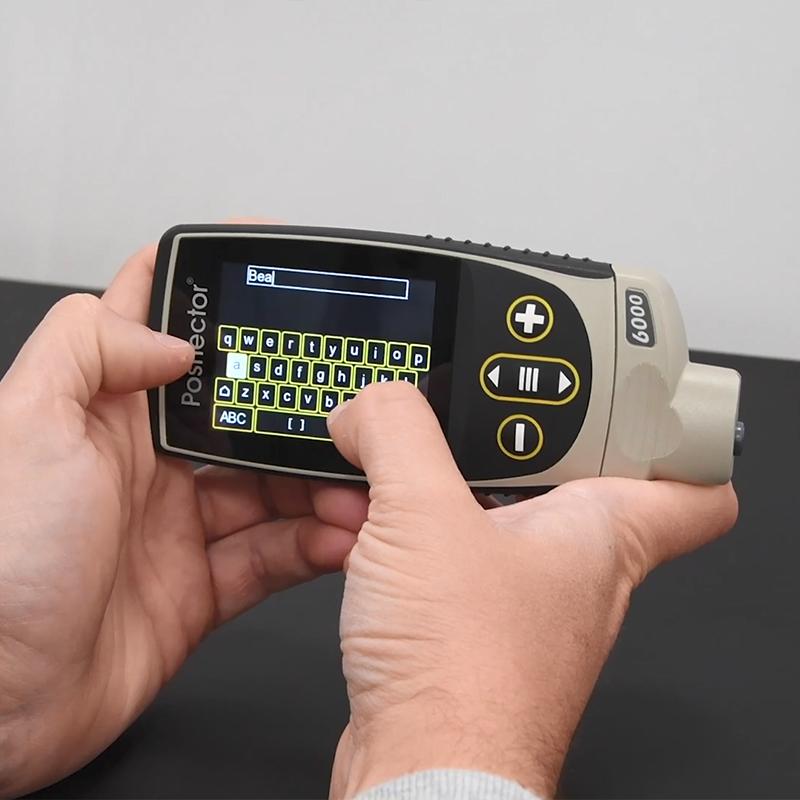

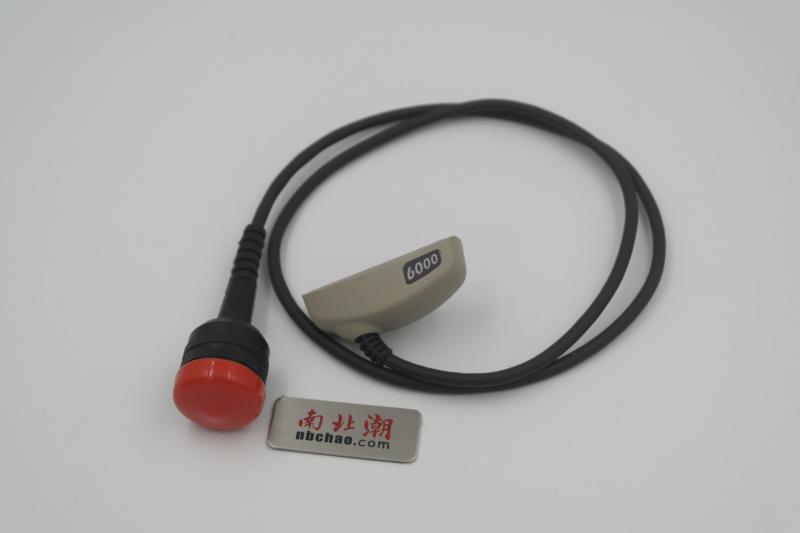

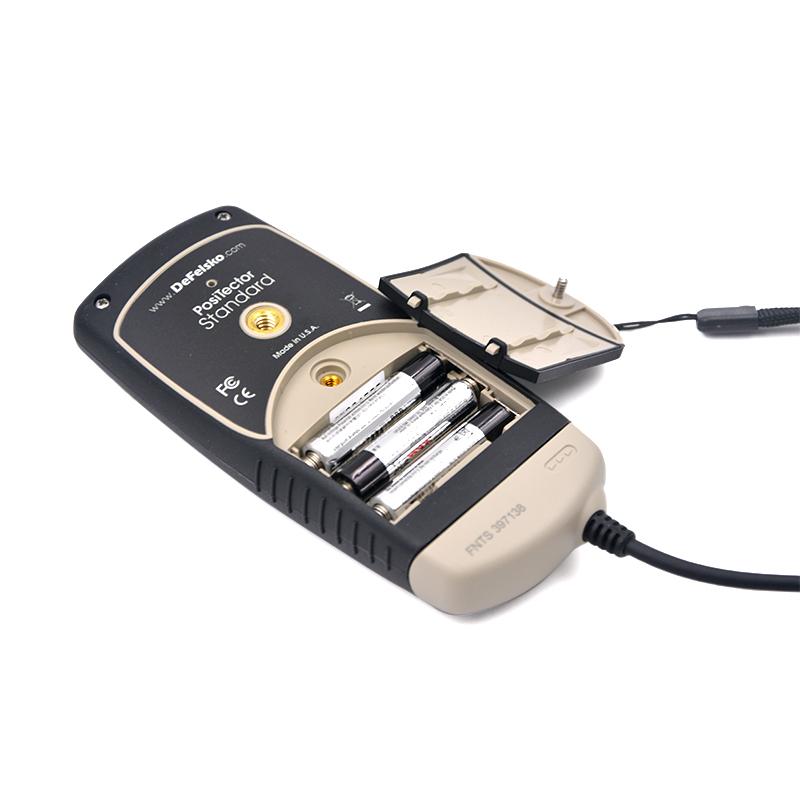

Defelsko PosiTector 6000 FKS3 Coating Thickness Gauge magnetic Induction thickness coating probe Picture

Coating Thickness Gauge selector

Introduction

Defelsko Thickness Gauges is a well-established manufacturer in the field of non-destructive testing of cladding and its cladding Thickness Gauges are widely used around the world. Among them, the PosiTector 6000 series is dedicated to the inspection of coating thickness, and the FKS3 coating Thickness Gauge is an advanced split probe type Thickness Gauge, which measures the coating with a thicker coating and the measurement range is 0~13000 microns.The FKS3 coating Thickness Gauge is capable of displaying not only the measured thickness, but also the standard deviation, the minimum or maximum coating thickness and the number of readings measured.

New features have been added to the new version of the Defelsko PosiTector console in the United States

Defelsko Devs high brand introduction

Defelsko PosiTector 6000 FKS3 Coating Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

Advantages of the protective features of the Defelsko PosiTector 6000 FKS3 Coating Thickness Gauge

Additional features of the Defelsko PosiTector 6000 FKS3 Coating Thickness Gauge

Typical application areas for the Defelsko PosiTector 6000 FKS3 coating Thickness Gauge

Why Choose Nanbeichao to Buy the Defelsko PosiTector 6000 FKS3 Coating Thickness Gauge?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI want to measure thick coatings, such as epoxy resin or heavy anti-corrosion paint, which instrument is suitable?
A Recommended PosiTector 6000 FKS3, it is designed for thick coatings, Measurement range 0~ 13000 microns, using split Probe can accurately measure epoxy, heavy corrosion and other thick coatings, the error is only +/- 3%, to meet ISO, ASTM and other standards.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QCould you please suggest an imported Coating thickness gauge to test the fire-proof coatings Film thickness of construction steel pipes?
A Hello, if the steel pipe is magnetic steel pipe, it can be used for the PosiTector 6000 FKS3 model of defelsko, and the thickness measurement range is 0~ 13mm.
QIs this the Coating thickness gauge mentioned in ISO2178?
A OK
