Defelsko PosiTector 6000 FHXS1 Coating Thickness Gauge, hot surface Coating Thickness Gauge
SEMagnetic Induction Thickness Measurement, for hot surface high temperature coating thickness measurement, thickness measurement range 0~10000 μm, error +/- 3%, applicable coating temperature up to 250 ℃, color touch LCD screen, with calibrated certificate.
$1624.00/set
PromotionLoading...
Coupon
Model：
PosiTector 6000 FHXS1
Similar products
Defelsko PosiTector 6000 FHXS1 Coating Thickness GaugeSPEC
Defelsko PosiTector 6000 FHXS1 Coating Thickness GaugeDetails
Defelsko PosiTector 6000 FHXS1 Coating Thickness GaugePacking list
- SKU
- NB001207
- Measurement principle
- Magnetic Induction
- Measurement range
- 0~10000μm
- margin of error
- ±3%
- Resolution
- 0.1μm
- probe

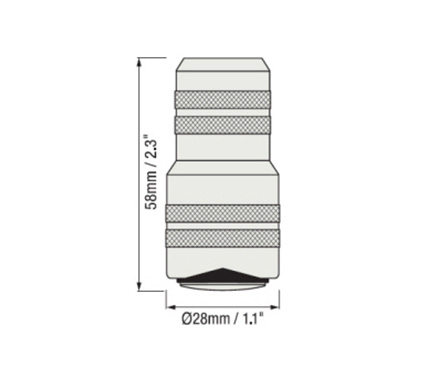

- FHXS Xtreme
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- icon function
- without
- Power Supply
- 3 * AAA alkaline battery
- Standards
- ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
- Calibrated Certificate
- Yes.
- Language
- Chinese, English
- Display screen
- 2.8-Inch color touchscreen
- Interface
- USB
- supporting software
- PosiSoft Software Suite
- Machine Weight
- 137G (without battery)
- Machine size
- 127*66*25.4mm
- Data storage
- 1000 Measured values
- Test environment
- The nonmagnetic coating environment on ferrous metal substrates
- Defelsko calibrated standard
- STDP7
- screen image saving
- One hundred.
- Protection level
- IP65
- Measurement speed
- 60 + readings per minute
PosiTector 6000 FHXS1
Coating Thickness Gauge
Magnetic Induction Thickness Measurement, for hot surface high temperature coating thickness measurement, thickness measurement range 0~10000 μm, error +/- 3%, applicable coating temperature up to 250 ℃, color touch LCD screen, with calibrated certificate.
Introduction
The Defelsko PosiTector 6000 FHXS1 Coating Thickness Gauge is a magnetic Thickness Gauge suitable for measuring high temperature surfaces up to 250°C, suitable for the thickness of non-magnetic coatings on ferrous metal substrates, measuring thickness ranging from 0~1000 microns, and measuring accuracy of ± (2μm+3%).With 1,000 pieces of data to store on the PosiTector 6000 FHXS1 Coating Thickness Gauge, the new standard gauge uses a high-contrast color LCD display instead of a monochrome display.
Recommended reading
★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》
★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)
FAQ
QI want to measure the coating thickness of the high temperature metal surface, the maximum temperature is about 250 ℃, what is the suitable thickness gauge recommended?
A
Recommended Defelsko PosiTector 6000 FHXS1 Coating thickness gauge, which is designed for high temperature surface, can measure up to 250 ℃ surface temperature, using FHXS Xtreme Probe, can be stable measurement of ferrous metals in high temperature environment nonmagnetic coating thickness.
QMeasurement of tire metallic coating thickness temperature 200 ℃
A
This one suits you.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A
This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QFilm thickness of tire metallic coating, temperature 200 ℃, is this okay?
A
Hello, it's OK.
QPosiTector 6000 FHXS1 test high temperature surface coating thickness, the maximum temperature is how much?
A
Hello, 250 ° C.
QWhy can't the Defelsko Coating thickness gauge be charged?
A
Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QCan this high temperature Coating thickness gauge withstand temperature ≥ 300 ℃?
A
Hello, no, the maximum temperature that can be measured by the defelsko thickness gauge is only 250 ° C.
QIs this Coating thickness gauge ISO2178 compliant?
A
Coating thickness gauge is applicable to ISO2178, please consult customer service for detailed application definition
