Defelsko PosiTector 6000 FHXS3 high-precision Coating Thickness Gauge for hot or rough surfaces

SE
Advanced high temperature Coating Thickness Gauge, magnetic thickness measurement principle, with FHXs Xtreme probe with aluminum oxide wear-resistant contact surface and braided cable for hot or rough surfaces, hot surface temperature up to 250 ℃ (500 ° F), split structure, Bluetooth data transmission.
$2113.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Defelsko PosiTector 6000 FHXS3 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 FHXS3 Coating Thickness GaugeDetails

Defelsko PosiTector 6000 FHXS3 Coating Thickness GaugePacking list

SKU
NB001208
Measurement principle
Magnetic Induction
Measurement range
0~10000μm
margin of error
±3%
Resolution
0.1μm
probe
FHXS Xtreme
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
Yes.
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB、Bluetooth
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
250000 Measured values, 1000 groups
Test environment
Ferrous metal substrate nonmagnetic coating environment
Defelsko calibrated standard
STDP7
screen image saving
One hundred.
Protection level
IP65
Measurement speed
More than 180 readings per minute
PosiTector 6000 FHXS3
Coating Thickness Gauge
Advanced high temperature Coating Thickness Gauge, magnetic thickness measurement principle, with FHXs Xtreme probe with aluminum oxide wear-resistant contact surface and braided cable for hot or rough surfaces, hot surface temperature up to 250 ℃ (500 ° F), split structure, Bluetooth data transmission.

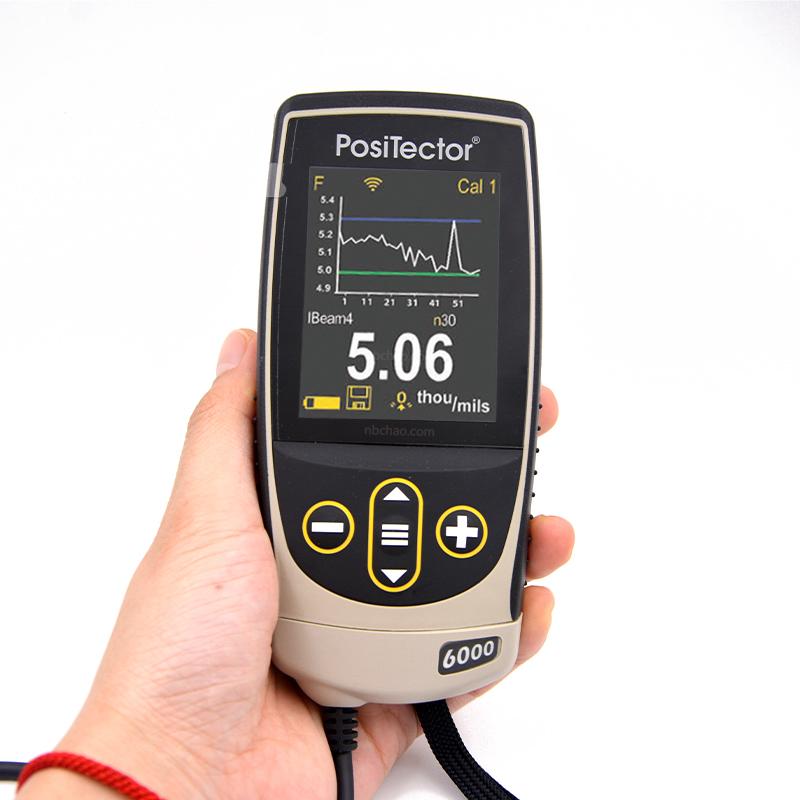

Defelsko PosiTector 6000 FHXS3 high-precision Coating Thickness Gauge for hot or rough surfaces Picture

Coating Thickness Gauge selector

Introduction

Defelsko PosiTector 6000 FHXS3 Coating Thickness Gauge is a non-destructive testing instrument for coating thickness measurement produced by Defelsko Company in the United States.The PosiTector 6000 FHXS3 Coating Thickness Gauge is a split design with an external probe that extends the probe cable length for remote measurements.

New features have been added to the new version of the Defelsko PosiTector console in the United States

Defelsko Devs high brand introduction

Defelsko PosiTector 6000 FHXS3 High Precision Coating Thickness Gauge Probe Accuracy

The Defelsko PosiTector 6000 Coating Thickness Gauge can be equipped with a variety of transducers

Comparison of the features of the Defelsko PosiTector 6000 Advanced and Standard models in the United States

The protective benefits of the Defelsko PosiTector 6000 FHXS3 High Precision Coating Thickness Gauge

Additional features of the Defelsko PosiTector 6000 FHXS3 High Precision Coating Thickness Gauge

Typical application areas of the Defelsko PosiTector 6000 FHXS3 High Precision Coating Thickness Gauge

Why Choose Nanbeichao to Buy the Defelsko PosiTector 6000 FHXS3 High Precision Coating Thickness Gauge?

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI want to measure thick coatings for high temperature or rough surfaces. Is there any suitable Coating thickness gauge recommended?
A Recommended Defelsko PosiTector 6000 FHXS3 Coating thickness gauge, its Probe is made of wear-resistant aluminum alloy with braided cable, specially designed for high-temperature and rough surface Film thickness coating measurement, measurement range up to 0-10000 μm, suitable for the application scenario you said.
QI need a Coating thickness gauge that can store a lot of data and is easy to operate. Which model is better?
A Recommended PosiTector 6000 FHXS3, it is equipped with 2.8-inch color Touchscreen, supports Chinese operation, can store 250,000 measurement values, and USB and Bluetooth interfaces, with PosiSoft software can easily manage and export data, simple and practical operation.
QDo the Defelsko 6000 series thickness gauges come standard with software?
A This does not have a physical software CD, but PosiSoft software can be downloaded for free on the manufacturer's official website for downloading and viewing data reports.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
QHello, does the Devs Coating thickness gauge need to be calibrated before each measurement?
A Hello, PosiTector6000 has been calibrated when it leaves the factory, and automatic self-inspection will be performed every time a measurement is made. If the shape and asperity of the tested sample are quite different, you can manually calibrate it at one or two points.
QIs the PosiTector 6000 FHXS3 a high temperature probe? What is the maximum temperature in degrees Celsius?
A Hello, yes, it is a high temperature probe, the temperature can be as high as 250 degrees Celsius.
QI want to do a test about the ISO19840 standard. Is this Coating thickness gauge okay?
A Sure
