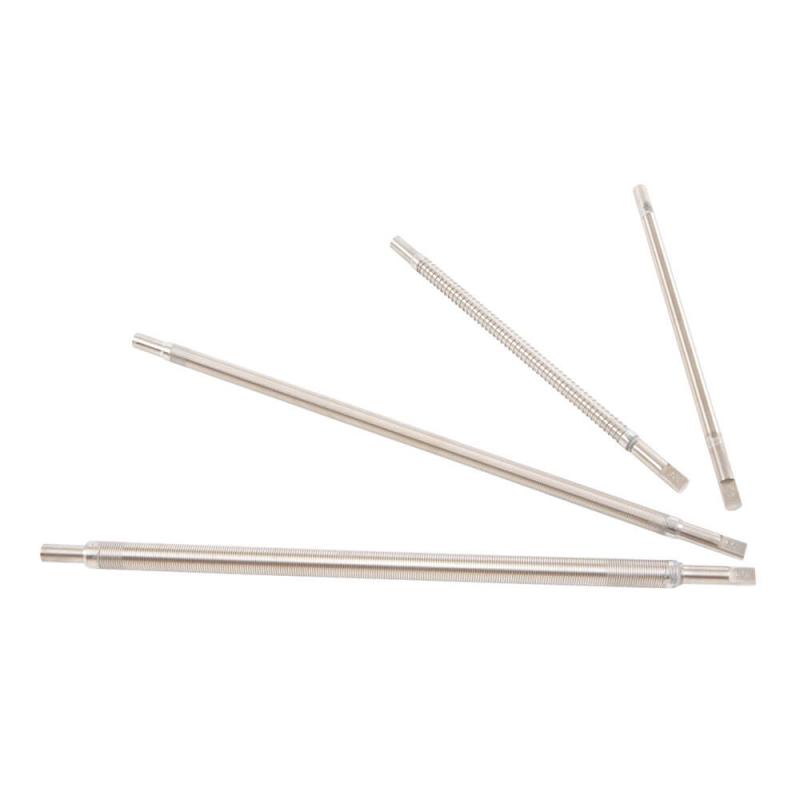

UK Elcometer 4360/14 threaded rod Film Applicator 50μm/250mm

The Elcometer 4360/14 threaded rod Film Applicator is a 14 gauge wire rod Applicator rod that can be coated with 50 µm wet-film Coating thickness. The threaded rod Film Applicator rod width is 250mm using stainless steel wire-wound process.

Model：

Elcometer 4360/14

Elcometer

Contact

Details SPEC CAT

Elcometer Elcometer 4360/14 Threaded rod Film ApplicatorSPEC

Elcometer Elcometer 4360/14 Threaded rod Film ApplicatorDetails

Elcometer Elcometer 4360/14 Threaded rod Film ApplicatorPacking list

SKU: NB012080

Production process: wire-wound

WFT: 50μm

application width: 250mm

material: stainless steel

standard: ASTM D 4147

Elcometer 4360/14

Threaded rod Film Applicator

Made of stainless steel with stainless steel wire wound around the cylindrical bar. These threaded coating rods are used to coat the film to a predetermined thickness and have high leveling properties.

Wire diameters vary and can be coated in a variety of thicknesses, ranging from 4 to 500 μm (0.157 to 19.685 mils).
Available in 2 standard rod widths: 140 mm (5.5") or 250 mm (9.8"), the user can select the correct coating width based on substrate condition or piece width. Other widths are available to order.

Suitable for use with the Elcometer 4340 Electric Film Applicator.

Elcometer threaded rod applicator from Elcometer, UK

Bar width 140mm (5.5")				Bar width 250mm (9.8")
Part number	Model	Coating thickness		Part number	Model	Coating thickness
		µm	mils			µm	mils
K0004361P001	Elcometer 4361/1	4	0.157	K0004360P001	Elcometer 4360/1	4	0.157
K0004361P002	Elcometer 4361/2	6	0.236	K0004360P002	Elcometer 4360/2	6	0.236
K0004361P003	Elcometer 4361/3	8	0.315	K0004360P003	Elcometer 4360/3	8	0.315
K0004361P004	Elcometer 4361/4	10	0.393	K0004360P004	Elcometer 4360/4	10	0.393
K0004361P005	Elcometer 4361/5	12	0.472	K0004360P005	Elcometer 4360/5	12	0.472
K0004361P006	Elcometer 4361/6	16	0.630	K0004360P006	Elcometer 4360/6	16	0.630
K0004361P007	Elcometer 4361/7	20	0.787	K0004360P007	Elcometer 4360/7	20	0.787
K0004361P008	Elcometer 4361/8	26	1.024	K0004360P008	Elcometer 4360/8	26	1.024
K0004361P009	Elcometer 4361/9	30	1.181	K0004360P009	Elcometer 4360/9	30	1.181
K0004361P010	Elcometer 4361/10	34	1.338	K0004360P010	Elcometer 4360/10	34	1.338
K0004361P011	Elcometer 4361/11	38	1.496	K0004360P011	Elcometer 4360/11	38	1.496
K0004361P012	Elcometer 4361/12	40	1.574	K0004360P012	Elcometer 4360/12	40	1.574
K0004361P013	Elcometer 4361/13	46	1.811	K0004360P013	Elcometer 4360/13	46	1.811
K0004361P014	Elcometer 4361/14	50	1.968	K0004360P014	Elcometer 4360/14	50	1.968
K0004361P015	Elcometer 4361/15	56	2.205	K0004360P015	Elcometer 4360/15	56	2.205
K0004361P016	Elcometer 4361/16	60	2.362	K0004360P016	Elcometer 4360/16	60	2.362
K0004361P017	Elcometer 4361/17	66	2.598	K0004360P017	Elcometer 4360/17	66	2.598
K0004361P018	Elcometer 4361/18	70	2.755	K0004360P018	Elcometer 4360/18	70	2.755
K0004361P019	Elcometer 4361/19	76	2.992	K0004360P019	Elcometer 4360/19	76	2.992
K0004361P020	Elcometer 4361/20	80	3.149	K0004360P020	Elcometer 4360/20	80	3.149
K0004361P021	Elcometer 4361/21	90	3.543	K0004360P021	Elcometer 4360/21	90	3.543
K0004361P022	Elcometer 4361/22	100	3.937	K0004360P022	Elcometer 4360/22	100	3.937
K0004361P023	Elcometer 4361/23	110	4.330	K0004360P023	Elcometer 4360/23	110	4.330
K0004361P024	Elcometer 4361/24	120	4.724	K0004360P024	Elcometer 4360/24	120	4.724
K0004361P025	Elcometer 4361/25	130	5.118	K0004360P025	Elcometer 4360/25	130	5.118
K0004361P026	Elcometer 4361/26	140	5.511	K0004360P026	Elcometer 4360/26	140	5.511
K0004361P027	Elcometer 4361/27	150	5.905	K0004360P027	Elcometer 4360/27	150	5.905
K0004361P029	Elcometer 4361/29	175	6.890	K0004360P029	Elcometer 4360/28	175	6.890
K0004361P030	Elcometer 4361/30	200	7.874	K0004360P030	Elcometer 4360/30	200	7.874
K0004361P031	Elcometer 4361/31	300	11.811	K0004360P031	Elcometer 4360/31	300	11.811
K0004361P032	Elcometer 4361/32	400	15.748	K0004360P032	Elcometer 4360/32	400	15.748
K0004361P033	Elcometer 4361/33	500	19.685	K0004360P033	Elcometer 4360/33	500	19.685
