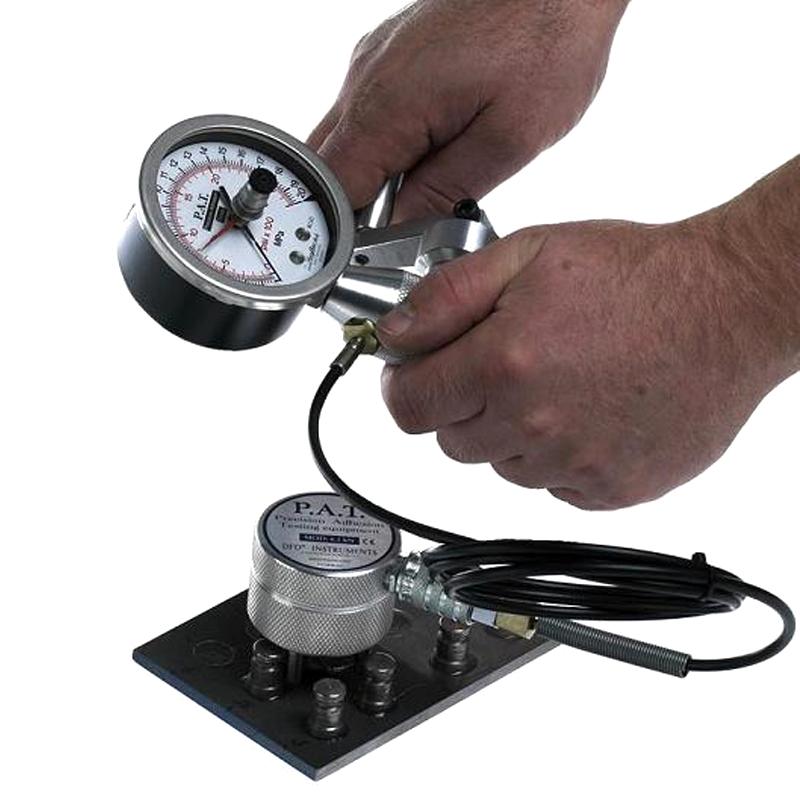

DFD PAT handy Adhesion Tester
The Norwegian DFD PAT handy Adhesion Tester is a truly portable Adhesion Tester suitable for all types of Coatings on all substrates, any Coating thickness adhesion testing.
Model：
PAT handy
DFD
DFD PAT handy Manual Adhesion TesterSPEC
DFD PAT handy Manual Adhesion TesterDetails
DFD PAT handy Manual Adhesion TesterPacking list
- SKU
- NB012160
PAT handy
Manual Adhesion Tester
Mobile Paint Inspector!
A truly portable adhesion Tester
Hand-held light alloy pull-off testing machine
The case can easily fit in a hand luggage (The size of the laptop is only 80 mm thick）
DFD ®technologyTrueA record of the bond strength of a coating
All types of coatings on all substrates
Any coating thickness
Inner and outer surfaces
No test operator bias
Precise measuring instruments, accurate measurements
Built-in hydraulic safety device to ensure smooth and anti-drifting
| The test range is 6.3kN | ||||
| Test the element size | Full scale | Scope of testing for certification | ||
| (diameter mm) | ||||
| MPa | PSI | MPa | PSI | |
| 50 | 3.2 | 460 | 2.7 | 400 |
| 28,2 | 10 | 1450 | 8.5 | 1200 |
| 20 | 20 | 2900 | 17 | 2450 |
| 14.2 | 40 | 5800 | 34 | 4900 |
| 8.16 | 120 | 17400 | 102 | 14800 |
| Technical data | ||||
| Maximum pulling force | 6.3 kN | |||
| accuracy | ±1% of full scale | |||
| The weight of the test head | 0.4 kg / 14 oz. | |||
| In the case of complete weight | 1.9 kg / 66 oz | |||
| Case size (WxLxH) | 33 x 26 x 8 cm - 13 x 10 x 3 inches | |||
| Accord with: | ISO 4624，EN 24624，ASTM D4541等 | |||
| Contains the standard model | ||||
| * PAT handy ™ The crank handle drives the pull mechanism | ||||
| * Hydraulic cables | ||||
| * PAT test head 6.3kN | ||||
| * 5 test element size Ø20mm | ||||
| * HSS cutting tool for Ø20mm test elements | ||||
| * Instrument carries the case with protection inside | ||||
| * Calibration certificate | ||||
FAQ
QDoes the DFD Manual Adhesion Tester meet the GB/T5210 standard?
A
The PAT handy Adhesion Tester can refer to
