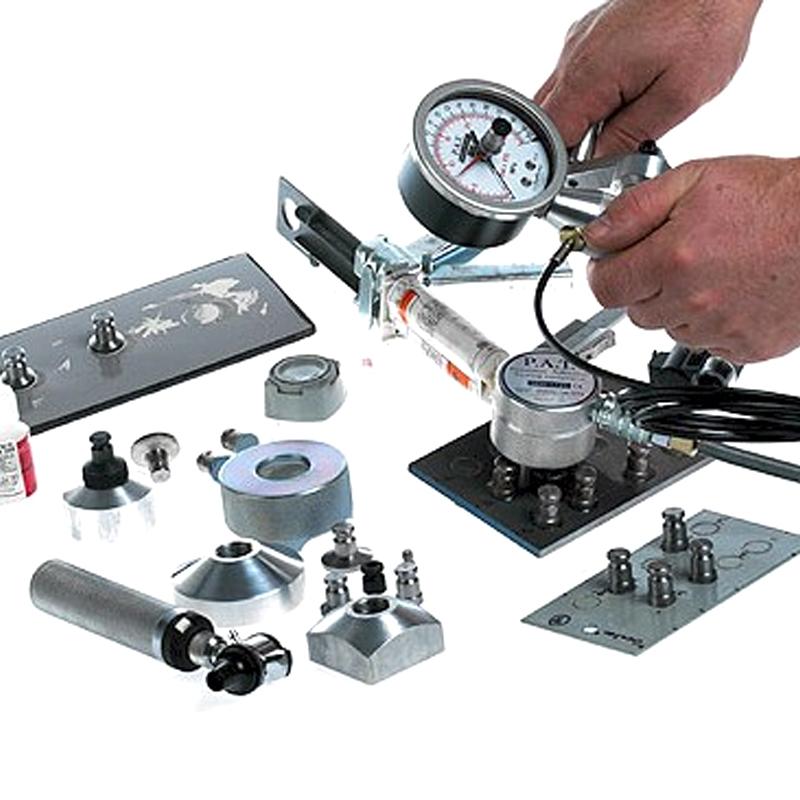

Norway DFD GM04/40kN Manual Adhesion Tester

GM04/40kN

Adhesion Tester

Powerful manual tensile adhesion Tester with threaded connection between the test head and the test element for a test range of 40 kN. Using a Ø50mm test element, this model can pull 20 MPa / 2900 psi. It is suitable for testing strong concrete surfaces, road and bridge materials, etc.

With its 40kN tensile force, this is the most powerful manual tensile adhesion Tester in the range. It is designed for testing on the thermal spray coating of breadboards, spraying on components or in accordance with ASTM-C633 (two test cylinders glued together) especially for testing with Ø50mm test elements, and with a square of 50× designed 50mm test elements for adhesion testing of tile adhesives and other cementitious materials. The equipment complies with ISO 4624, ASTM D 4541, EN 1542 and ASTM C633.

Describe and test the application

• Portable and simple to use.

• Generate comparable test results in the lab and in the field.

• PrecisIon Meter with MPa (N/mm2) and psi readings

• Testing of coatings, tensile strength of concrete, tile adhesives, pavement materials, linings.

• Ø25 mm (1 in) test elements were used to test coatings and thermal spray coatings.

• Comes with a portable aluminum case.




Packing specifications

* PAT GM 04/40kN Hydraulic Pull Pump

* Hydraulic cables

* PAT test head 40kN thread release type

* 3 test element size Ø50mm

* Adapter 40kN/Ø50 - 50×50 - Ø70mm test element

* Test platform

* Instrument carries the case with protection inside

* Calibration certificate

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
