Elcometer 107/1 F10713348-4C Cross Hatch Cutter Complete Set with ASTM Tape, with calibrated certificate

SE
Elcometer 107 series cross cutter with ASTM tape, calibrated certificate, 6 teeth, 2mm pitch, suitable for cross-cut tests of 50 to 125 µm paint films.
Contact
Details SPEC CAT OI
Similar products

Elcometer F10713348-4C Cross cutterSPEC

Elcometer F10713348-4C Cross cutterDetails

Elcometer F10713348-4C Cross cutterPacking list

SKU
NB012181
Number of teeth
6 teeth
Tooth spacing
2mm
Application standard
AS 3894.9, AS 1580.408.4, ASTM D 3359-B, BS 3900-E6, ECCA T6, EN 13523-6, ISO 2409, ISO 16276-2, JIS K 5600-5-6, NF T30-038
Applicable film thickness environment
50~125µm
Calibrated Certificate
Yes.
F10713348-4C
Cross cutter
Elcometer 107 series cross cutter with ASTM tape, calibrated certificate, 6 teeth, 2mm pitch, suitable for cross-cut tests of 50 to 125 µm paint films.
Elcometer 107/1 F10713348-4C Cross Hatch Cutter Complete Set with ASTM Tape, with calibrated certificate Picture

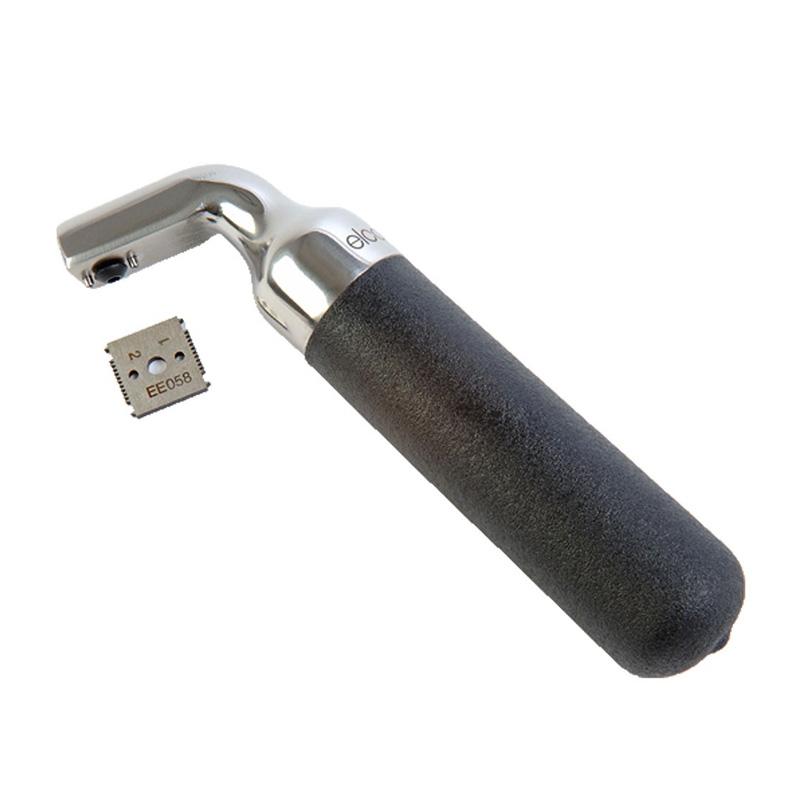

The Elcometer 107 provides an instant assessment of the quality of the bond on the substrate. Due to its robust construction, it is suitable for thin, thick or hard coatings on all surfaces. It is a customized field or laboratory test.

  • Robust design

  • The handle is large and non-slip

  • Suitable for thin, thick or hard coatings

  • 4-sided blades are quickly replaceable and enable measurement of adhesion over a wide range of thicknesses (1mm, 1.5mm, 2mm and 3mm)

The Elcometer 107 Cross Scribe is available in basic and complete sets.

elcometer 107 cross hatcher

Technical specifications

part numberProduct DescriptionISOASTMCertificate
T99913700-16 x 1mm four-sided blades••

ο

T99913700-211 x 1mm four-sided blade
•

ο

T99913700-311 x 1.5mm four-sided blade

ο

T99913700-46 x 2mm four-sided blades••

ο

T99913700-56 x 3mm four-sided blades•

ο

K0001539M001Adhesion Tape (1 roll) ASTM D 3359
•
K0001539M002Adhesion tape (1 roll) ISO 2409•

T9998894-Adhesion Tape (2 rolls) ASTM D 3359
•
T9999358-Adhesion tape (2 rolls) ISO 2409•

○ Calibration certificate optional

Elcometer 107 Series Comparison

part numberProduct DescriptionCutter wheel typecoating thickness Certificate
F10713222-1Elcometer 107 Basic Set6 x 1mm0 - 60µm0-2.0milsο
F10713348-6Elcometer 107 complete set including ISO tape6 x 1mm0 - 60µm0-2.0milsο
F10713348-1Elcometer 107 complete set with ASTM tape6 x 1mm0 - 50µm0-2.0milsο
F10713222-2Elcometer 107 Basic Set11x1mm0 - 50µm0-2.0milsο
F10713348-2Elcometer 107 complete set with ASTM tape11x1mm0 - 50µm0-2.0milsο
F10713222-3Elcometer 107 Basic Set11x1.5mm0 - 90µm10-3.5milsο
F10713222-4Elcometer 107 Basic Set6 x 2mm0 - 125µm0-5.0milsο
F10713348-9Elcometer 107 complete set including ISO tape6 x 2mm0 - 120µm0-5.0milsο
F10713348-4Elcometer 107 complete set with ASTM tape6 x 2mm50-125µm2.0-5.0milsο
F10713222-5Elcometer 107 Basic Set6 x 3mm121-250µm5.0-10milsο
packing listBasic set: Sturdy handle, blade, hex wrench, carrying case and operating manual (with adhesion test result chart grades)

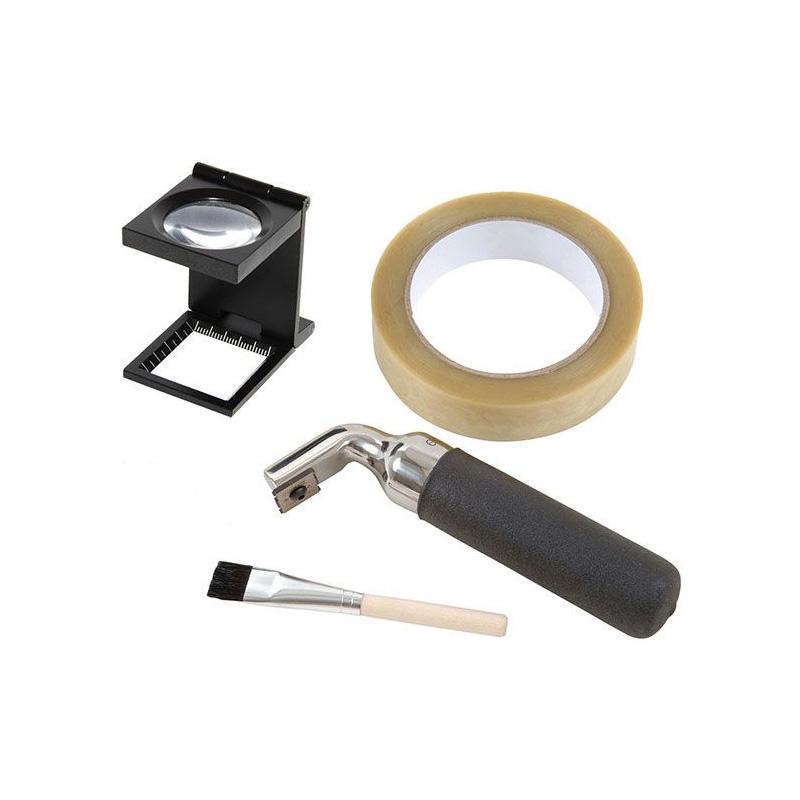

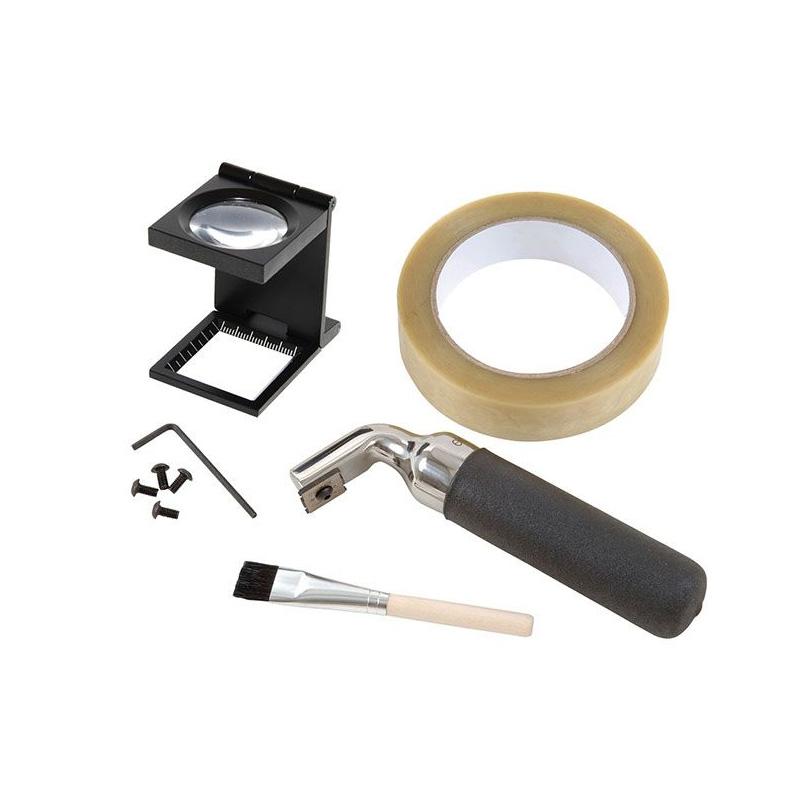

Complete set: Sturdy handle, blade, hex wrench, operating manual (with adhesion test result chart grades), sight glass, brush and
adhesion tape (ASTM or ISO tape), all in a plastic ABS carrying case

○ Calibration certificate optional


Comply with standards

AS 3894.9, AS 1580.408.4, ASTM D 3359-B, BS 3900-E6, ECCA T6, EN 13523-6, ISO 2409, ISO 16276-2, JIS K 5600-5-6, NF T30-038

FAQ
QAre all cross-cutters available for inspection in the ASTMD3359 standard?
A Not necessarily, but this F10713348-4C cross cutter can be considered.
