Specifications
| Measurement principle | eddy Current |
| margin of error | Depending on the probe |
| resolution | Depending on the probe selected |
| Minimum measurement surface | Depending on the probe |
| Minimum radius of curvature | Depending on the probe selected |
| probe | split |
| Calibrated Certificate | Yes. |
| Calibrated mode | Factory calibrated, two point calibrated, zero point calibrated, single point calibrated, zero point offset, preset calibrated, Automatic calibration |
| Unit display | μm/mils |
| statistical function | Number of readings, average value, standard deviation, minimum limit, maximum limit, coefficient of variation |
| Interface | USB、Bluetooth |
| Data storage | 1500 Measured values |
| Power Supply | 2 AA batteries, rechargeable batteries can also be used |
| Standards | AS 2331.1.4, AS 3894.3-B, AS/NZS 1580.108.1, ASTM B 499, ASTM D 7091, ASTM E 376, ASTM G 12,BS 5599,EN 13523-1, IMO MSC.215(82), IMO MSC.244 (83) |
| Display screen | 2.4 " (6 cm) QVGA color TFT display, 320x240 pixels |
| Operating temperature | 80℃ |
| Operating temperature | -10~50℃ |
| Battery life | With 1 reading per second, it can work continuously for up to 24h |
| Protection level | IP64 |
| supporting software | ElcoMaster ® Software |
| Weight | 161G (including battery) |
| Dimension | 141*73*37mm |
Packing list

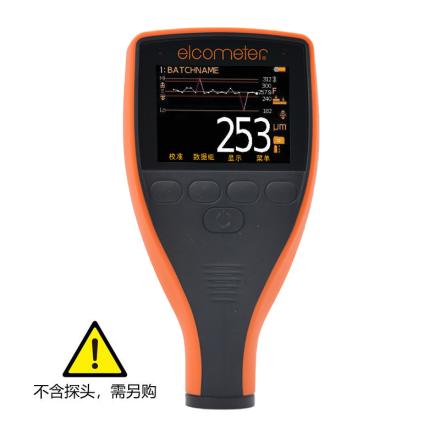

ELCOMETER Elcometer456 host x1, wristband x1, protective case x1, screen saver x1, AA battery x1, operation manual x1, USB cable x1, ELCOMETER software x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/12194/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
